CO-20-3/4 - Vinkelindskruning 90 gr 1.1/16-12 JIC udv x 3/4 BSP NW36

CO-20-3/4 - Vinkelindskruning 90 gr 1.1/16-12 JIC udv x 3/4 BSP NW36

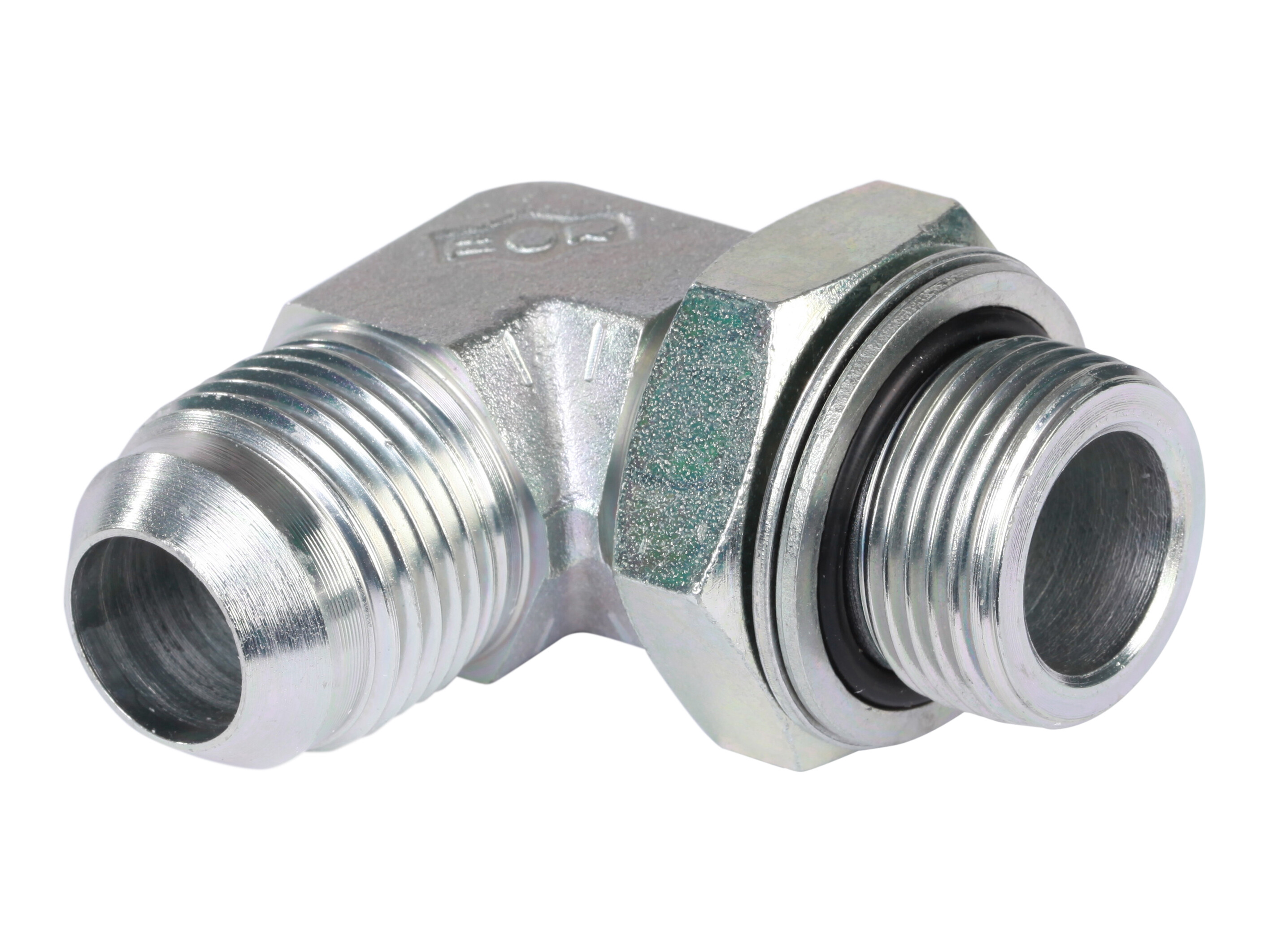

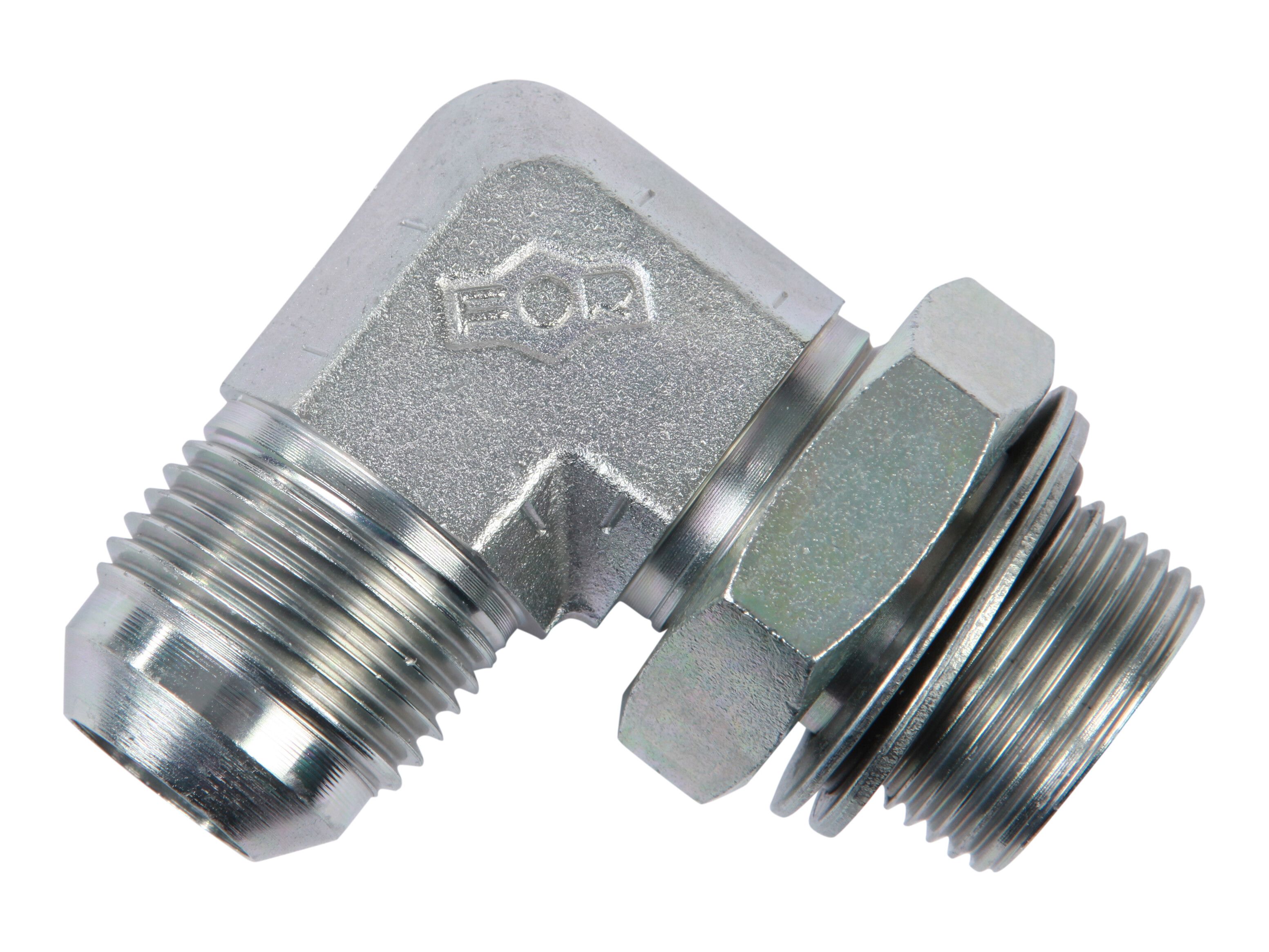

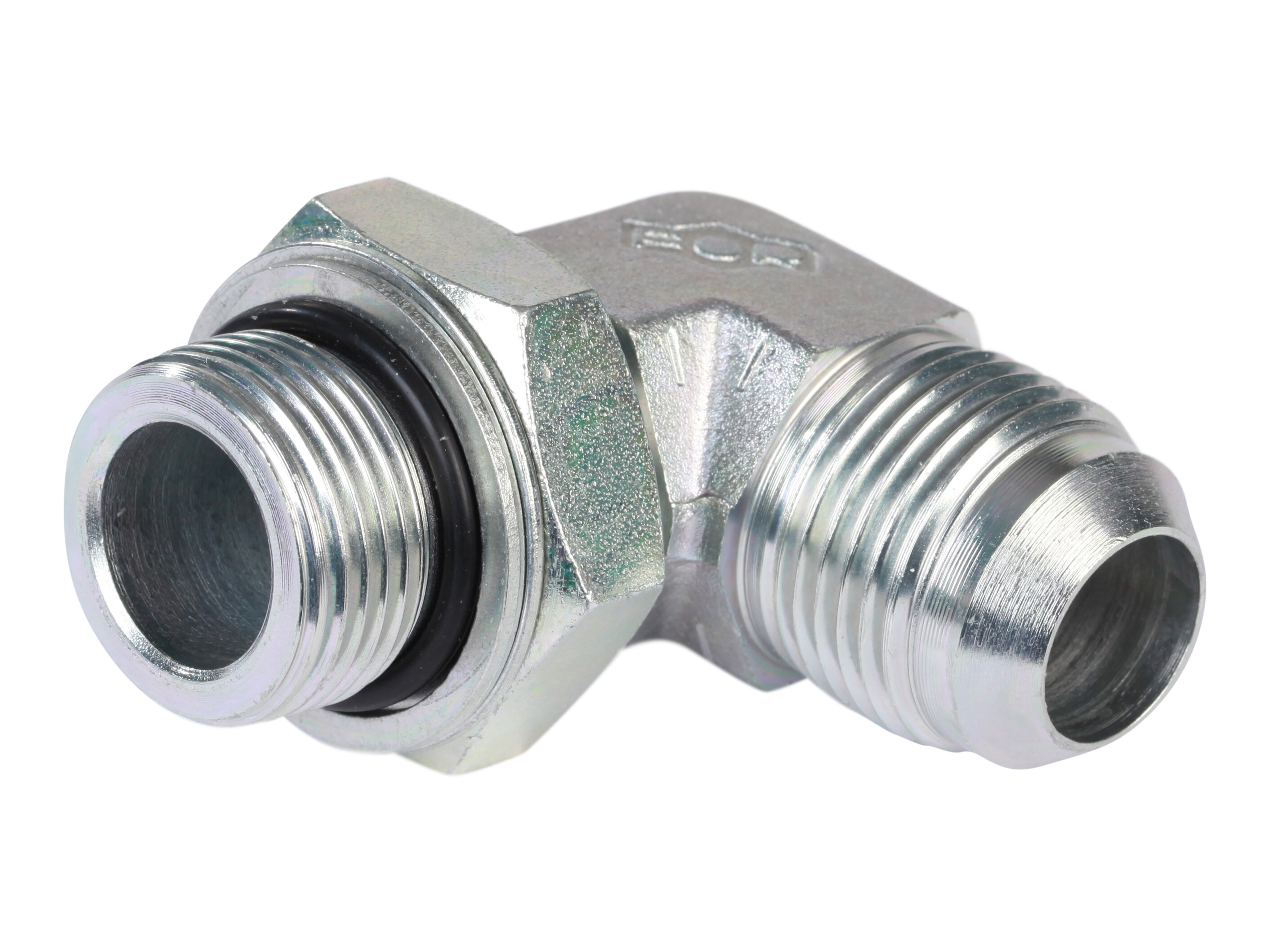

Vinkelindskruning 90 gr 1.1/16-12 JIC udv x 3/4 BSP NW36

Partnumber:

CO-20-3/4

Package size:

0 pcs

Min. order quantity is:

1 pcs

Tilbehør (1)

B-20 - Støttering ø20

Partnumber: B-20

Specifications
Dimensions and shipping

42 mm

49 mm

36 mm

Diameter rør

20 mm

G 3/4 BSP

Gevind udvendig

1.1/16-12 JIC

Gevind udvendig

G 3/4 BSP

1.1/16-12 JIC

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Stål

Mærke navn

FOR

Overfladebehandling

El-forzinket / hvidkromatiseret

18-20 mm

Tryk maks.

250 bar

Vinkel

90 °

Package size

0 pcs

Barcode

5704334309024

Gross weight

0,30 Kg

Net weight

0,30 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Vinkelindskruning 90 gr 1.1/16-12 JIC udv x 3/4 BSP NW36

Note: Opening 3D files requires a program that supports the file format
