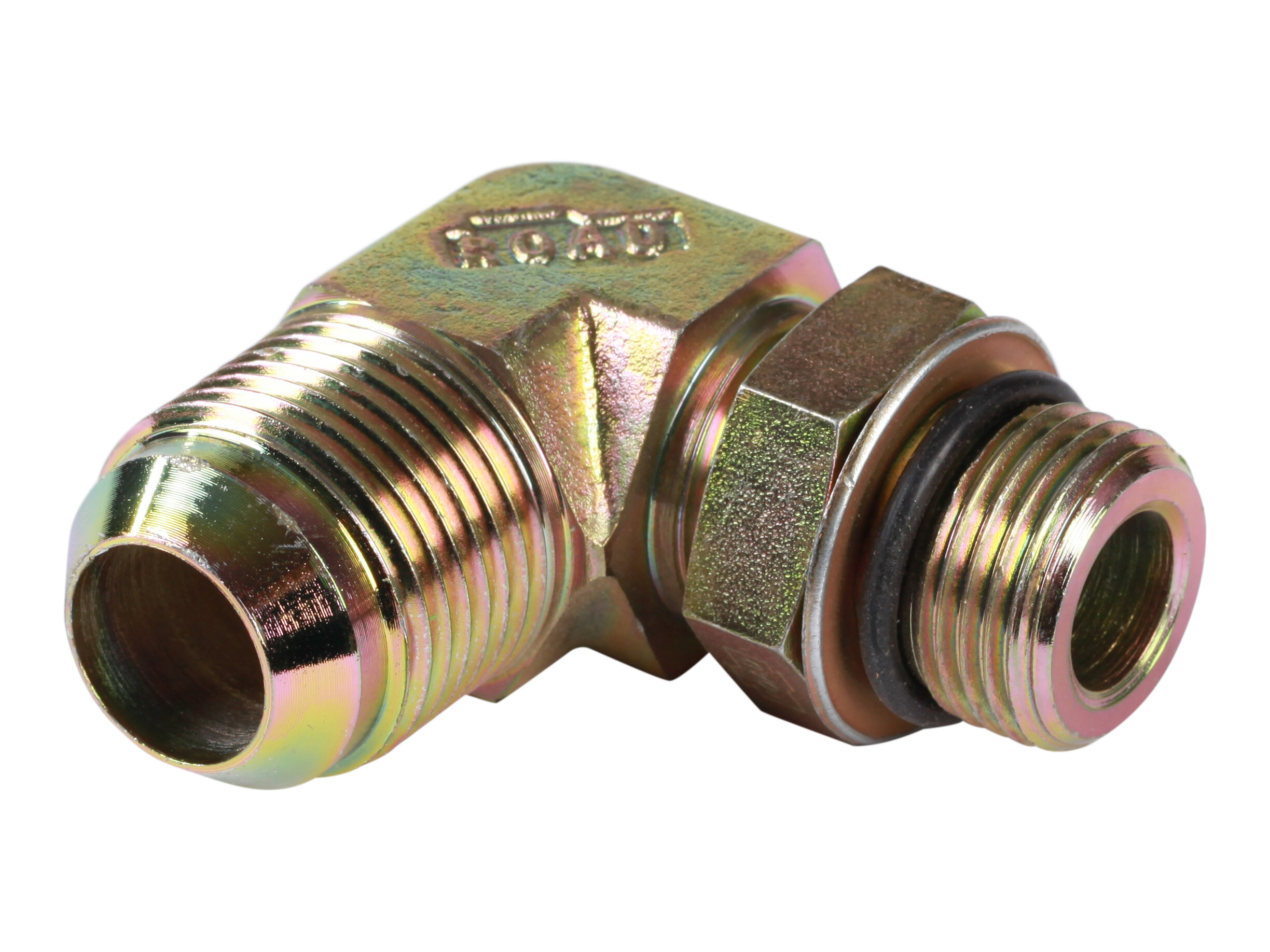

Vinkelindskruning 90 gr 1.1/16-12 JIC udv x 7/8 UNF udv
Vinkelindskruning 90 gr 1.1/16-12 JIC udv x 7/8 UNF udv
Partnumber:
CO-20-7/8
Package size:
0 stk
Min. order quantity is:
1 stk
Angle
90 °
B
42 mm
Brand Name
FOR
C
45,5 mm
CH
27 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
18-20 mm
F
7/8-14 UNF
J
1.1/16-12 JIC
Material
Stål
Pressure max.
320 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
El-forzinket
T
18-20 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.1/16-12 JIC
Thread outer
7/8-14 UNF
Pakkestr.
0 stk
Strekkode
5704334308881
Bruttovekt
Kg
Nettovekt
Kg
Opprinnelsesland
ita
Vinkelindskruning 90 gr 1.1/16-12 JIC udv x 7/8 UNF udv
