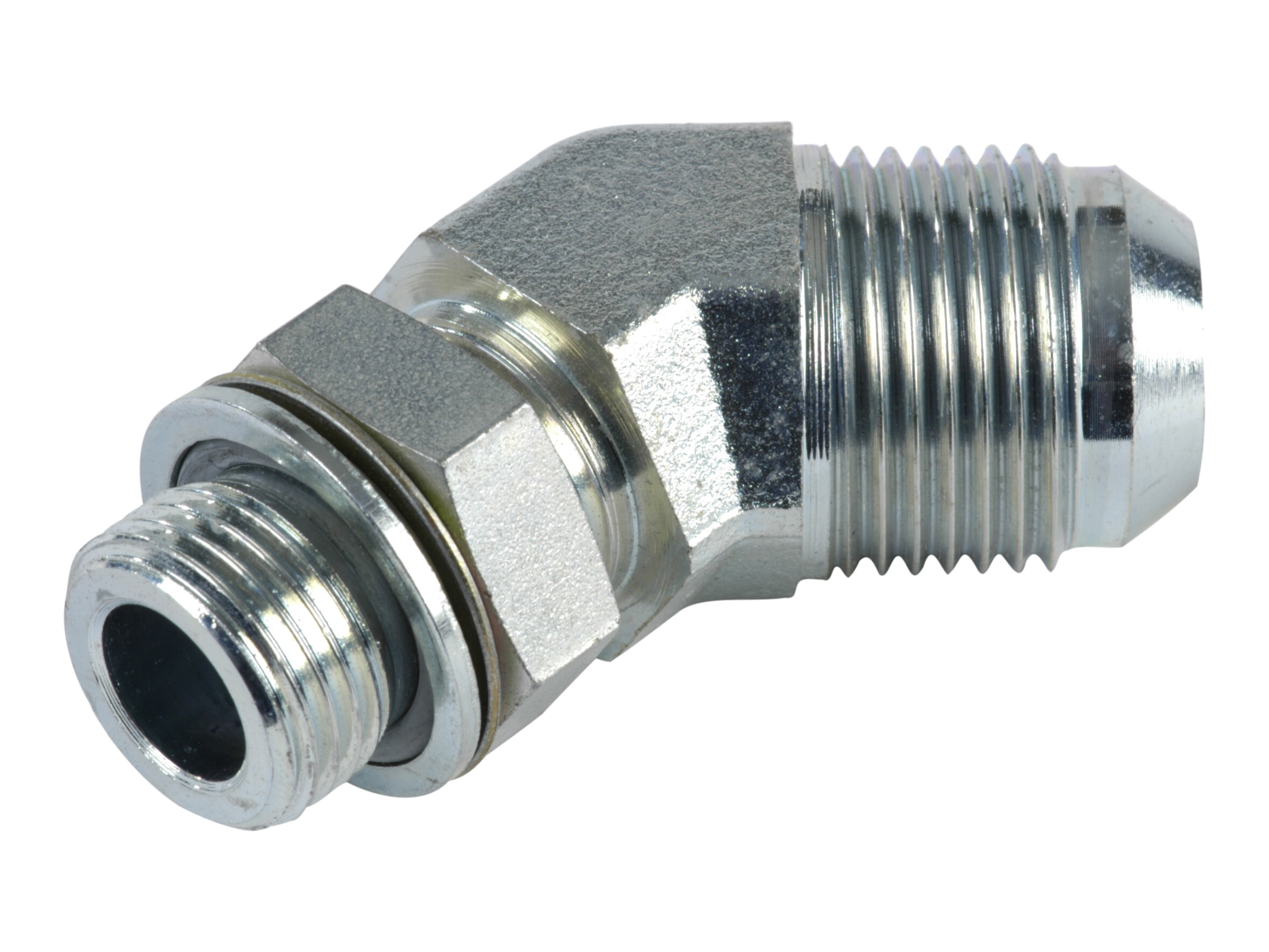

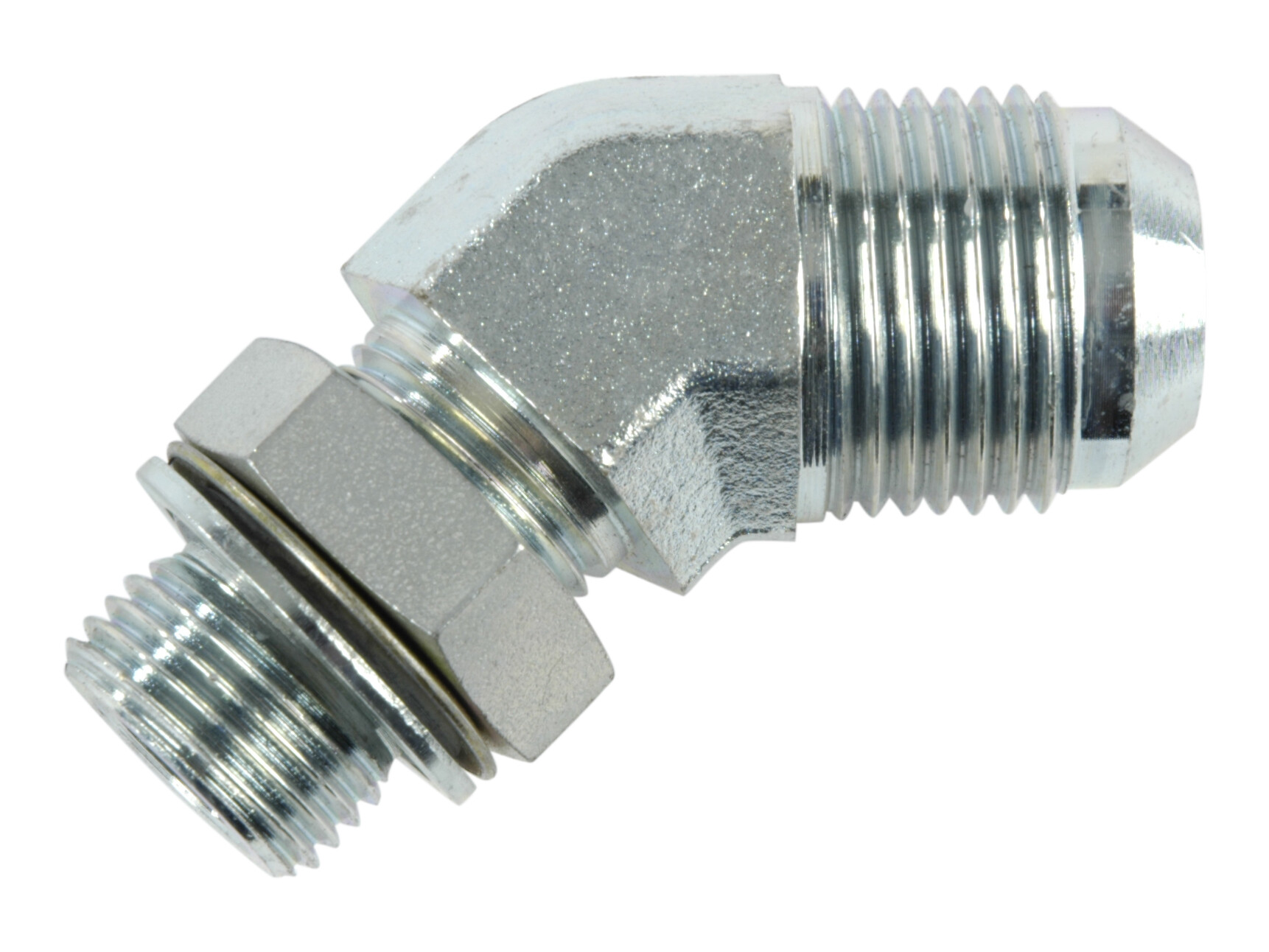

VO-20-1/2 - Vinkelindskruning 45 gr 1.1/16-12 JIC udv x 1/2 BSP udv
Vinkelindskruning 45 gr 1.1/16-12 JIC udv x 1/2 BSP udv
Partnumber:
VO-20-1/2
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
45 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
20 mm
Dimension B
32.5 mm
Dimension C
40.5 mm
Dimension CH
27 mm
Dimension F
G 1/2 BSP
Dimension J
1.1/16-12 JIC
Dimension T
20 mm
Material
Stål
Pressure max.
300 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread outer
1.1/16-12 JIC
Thread outer
G 1/2 BSP
Package size
0 pcs
Barcode
5704334033318
Gross weight
0,20 Kg
Net weight
0,20 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkelindskruning 45 gr 1.1/16-12 JIC udv x 1/2 BSP udv
