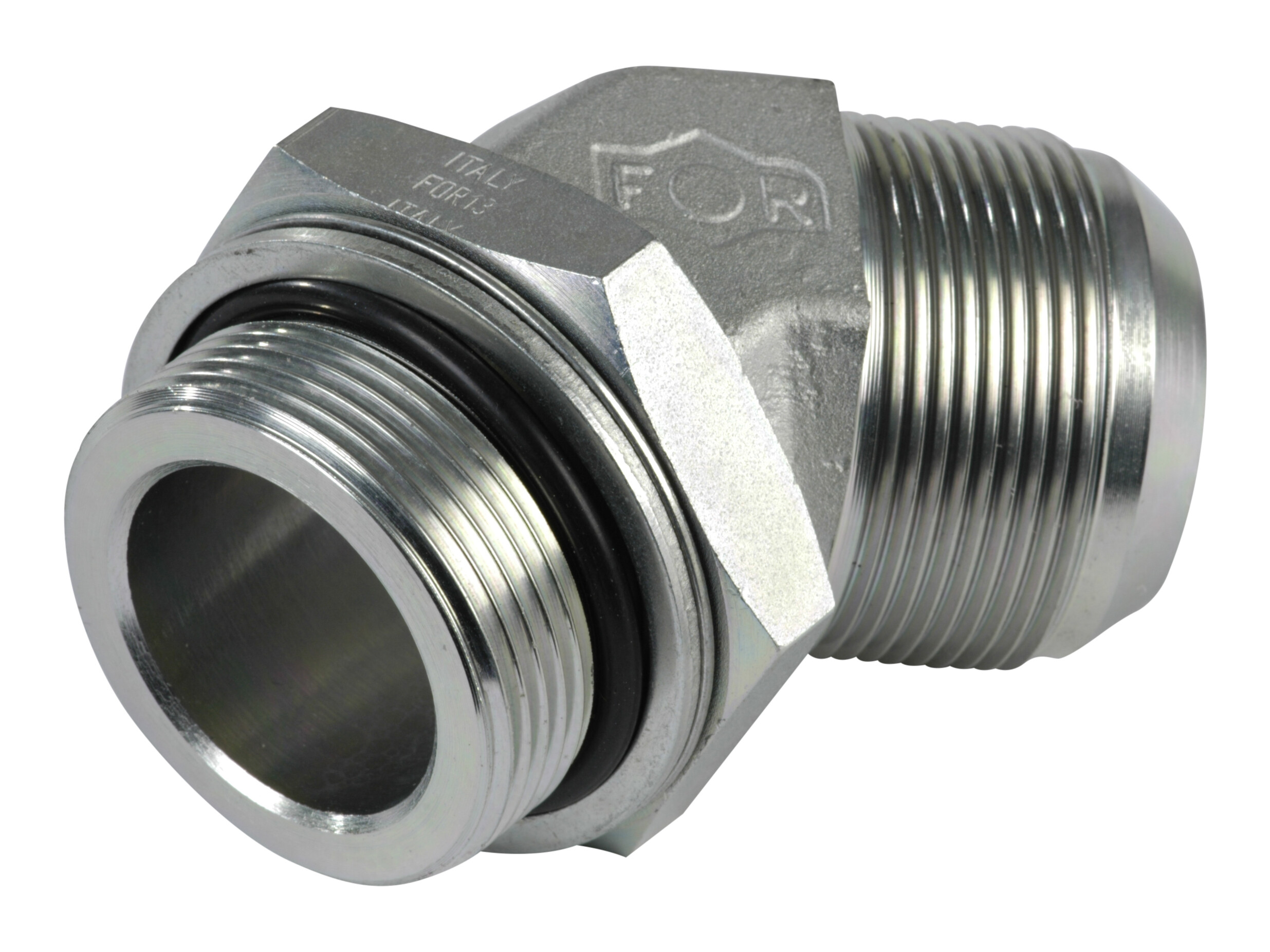

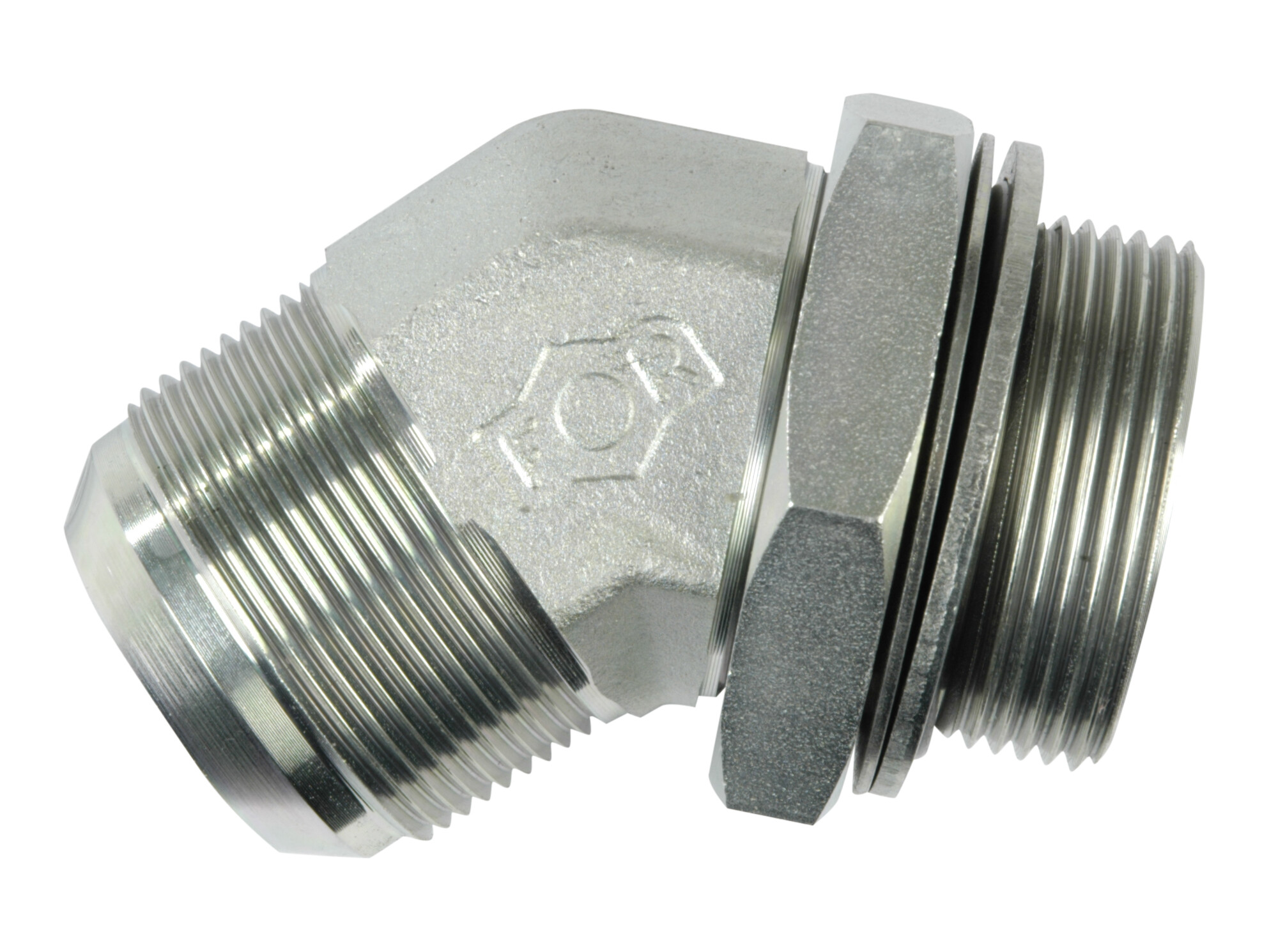

Vinkelindskruning 45 gr 1.7/8-12 JIC udv x 1.1/2 BSP udv
Vinkelindskruning 45 gr 1.7/8-12 JIC udv x 1.1/2 BSP udv
Partnumber:
VO-38-1.1/2
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
45 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
38 mm
Dimension B
45 mm
Dimension C
48.5 mm
Dimension CH
60 mm
Dimension F
G 1.1/2 BSP
Dimension J
1.7/8-12 JIC
Dimension T
38 mm
Material
Stål
Pressure max.
250 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread outer
1.7/8-12 JIC
Thread outer
G 1.1/2 BSP
Package size
0 pcs
Barcode
5704295980959
Gross weight
0,80 Kg
Net weight
0,80 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkelindskruning 45 gr 1.7/8-12 JIC udv x 1.1/2 BSP udv
