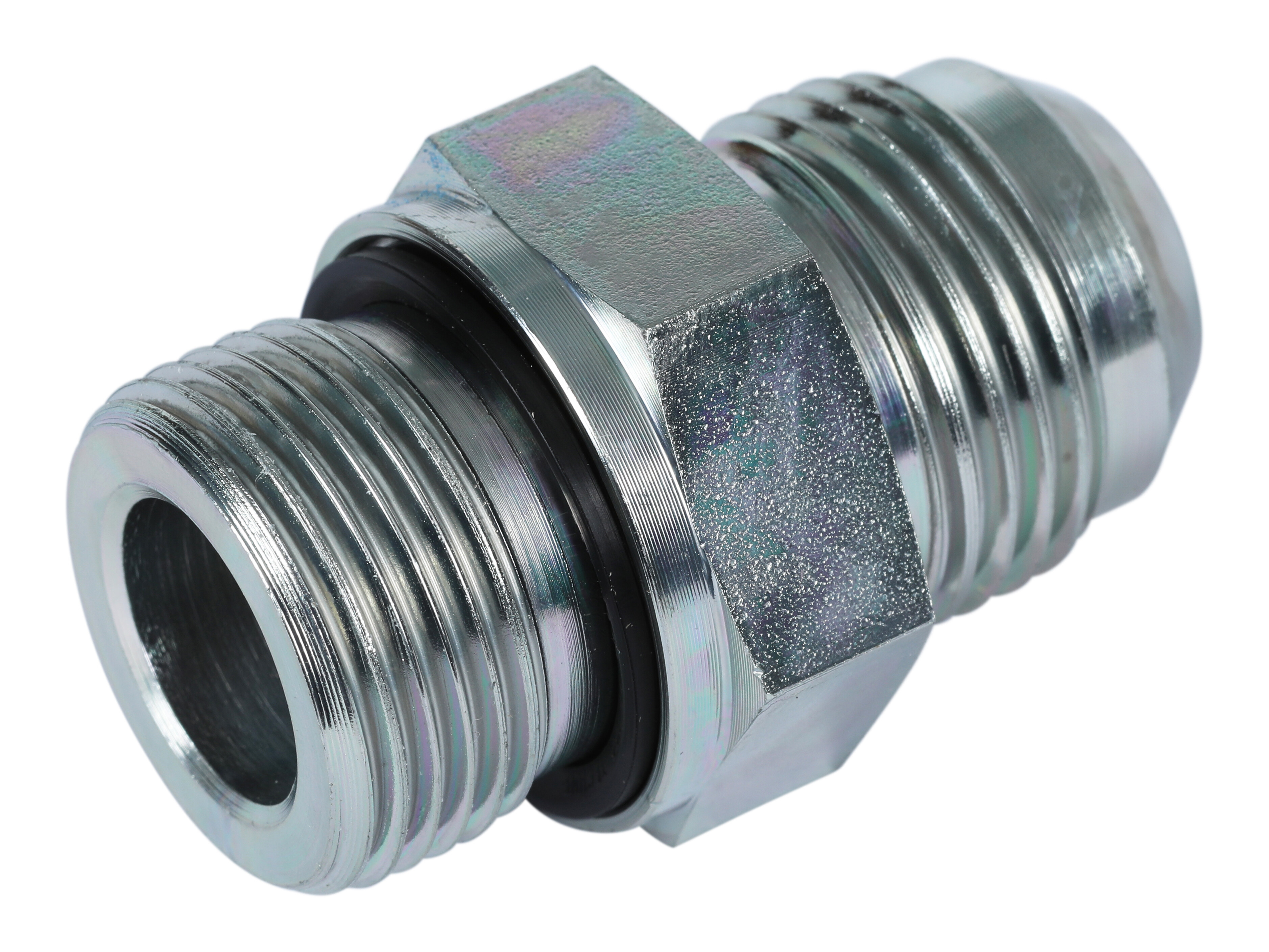

Indskruning 1.1/16-12 JIC udv x 3/4 BSP udv med WD pakning
Indskruning 1.1/16-12 JIC udv x 3/4 BSP udv med WD pakning
Varenummer:
M-20-3/4WD
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
20 mm
Dimension A
52 mm
Dimension B
22 mm
Dimension CH
32 mm
Dimension D
16 mm
Dimension F
G 3/4 BSP
Dimension J
1.1/16-12 JIC
Dimension T
18-20 mm
Material
Stål
Pressure max.
280 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread
G 3/4 BSP
Thread outer
1.1/16-12 JIC
Thread outer
G 3/4 BSP
Package size
0 pcs
Barcode
5704295496665
Gross weight
0,18 Kg
Net weight
0,18 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 1.1/16-12 JIC udv x 3/4 BSP udv med WD pakning
