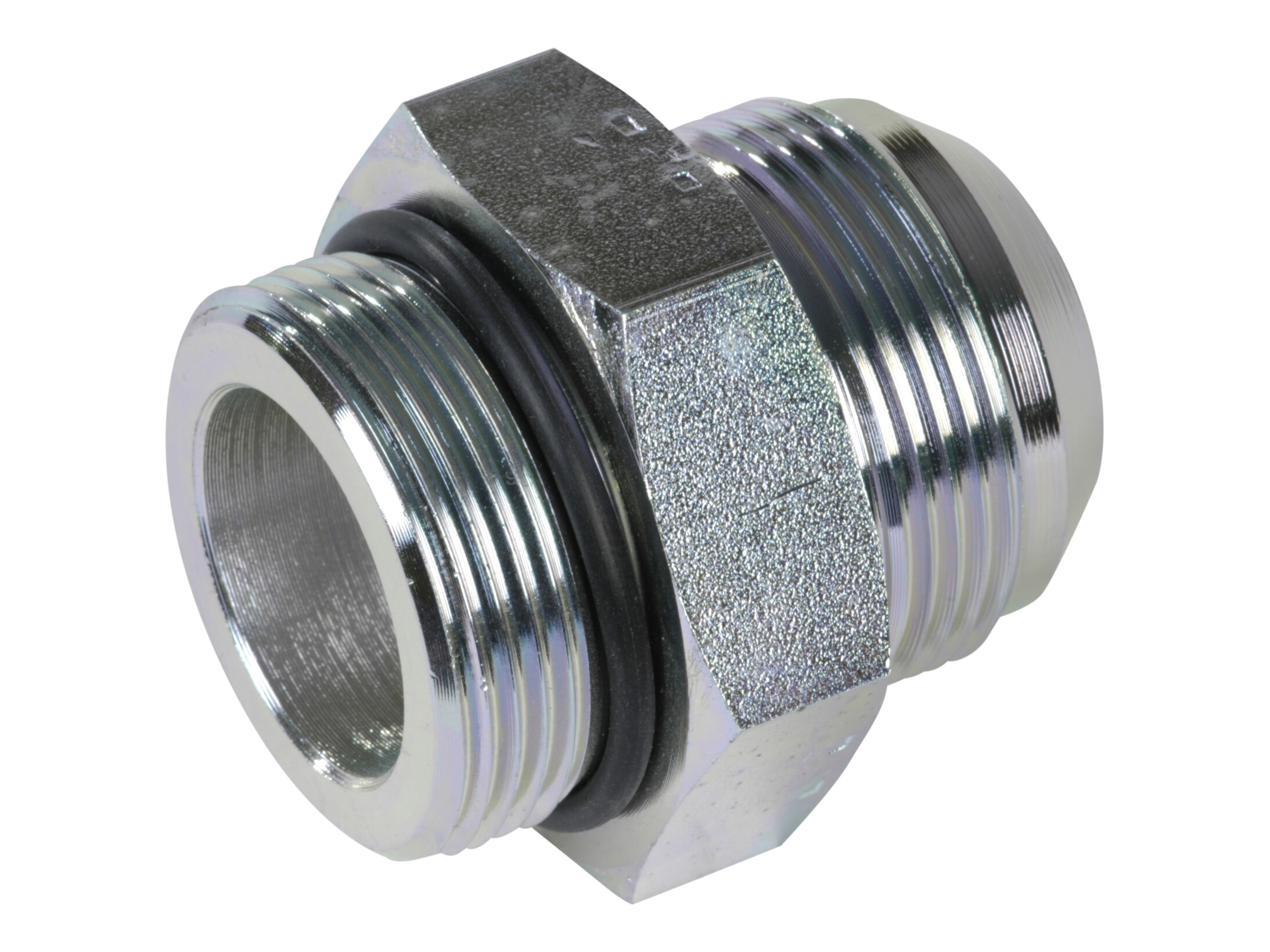

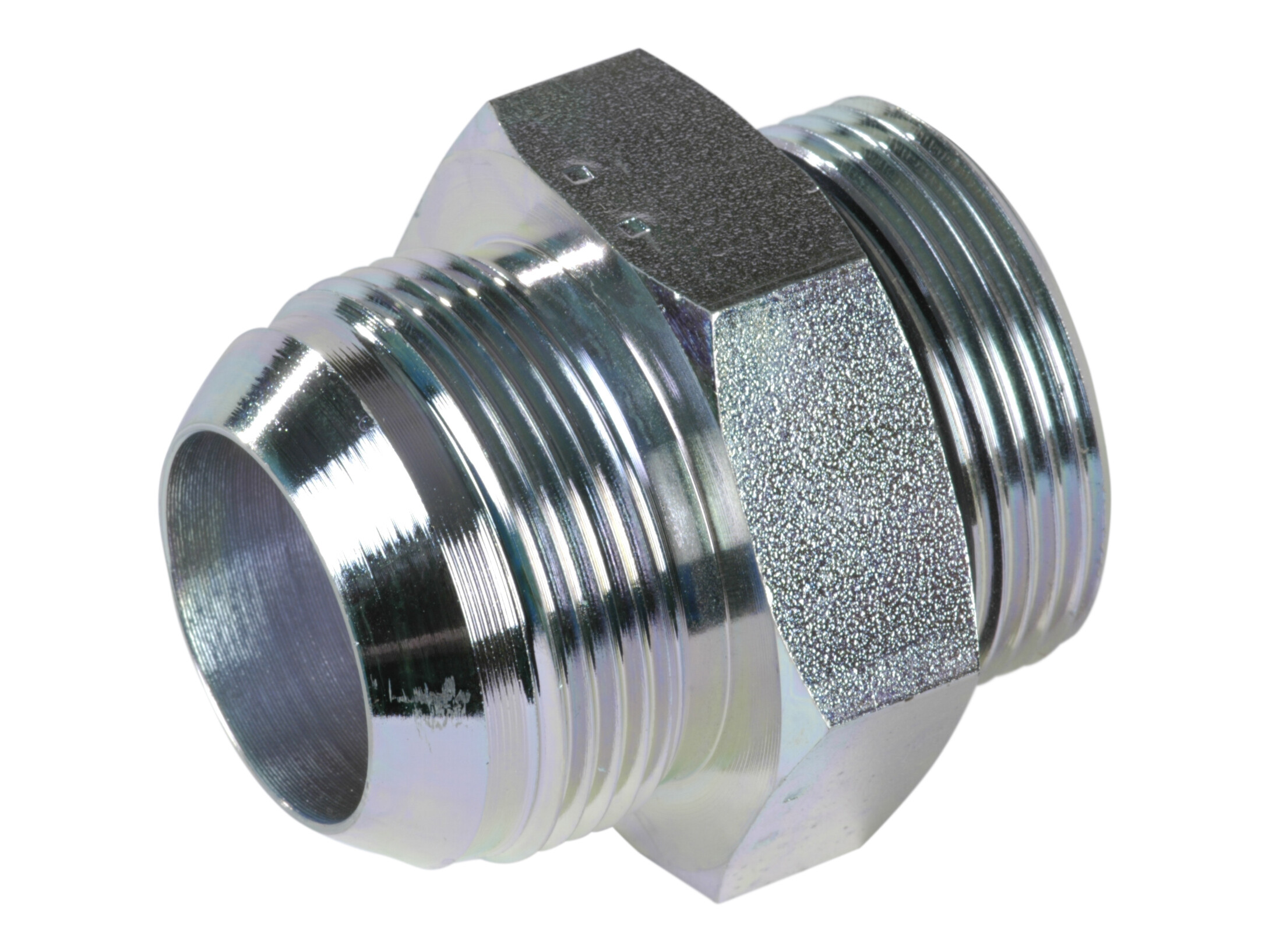

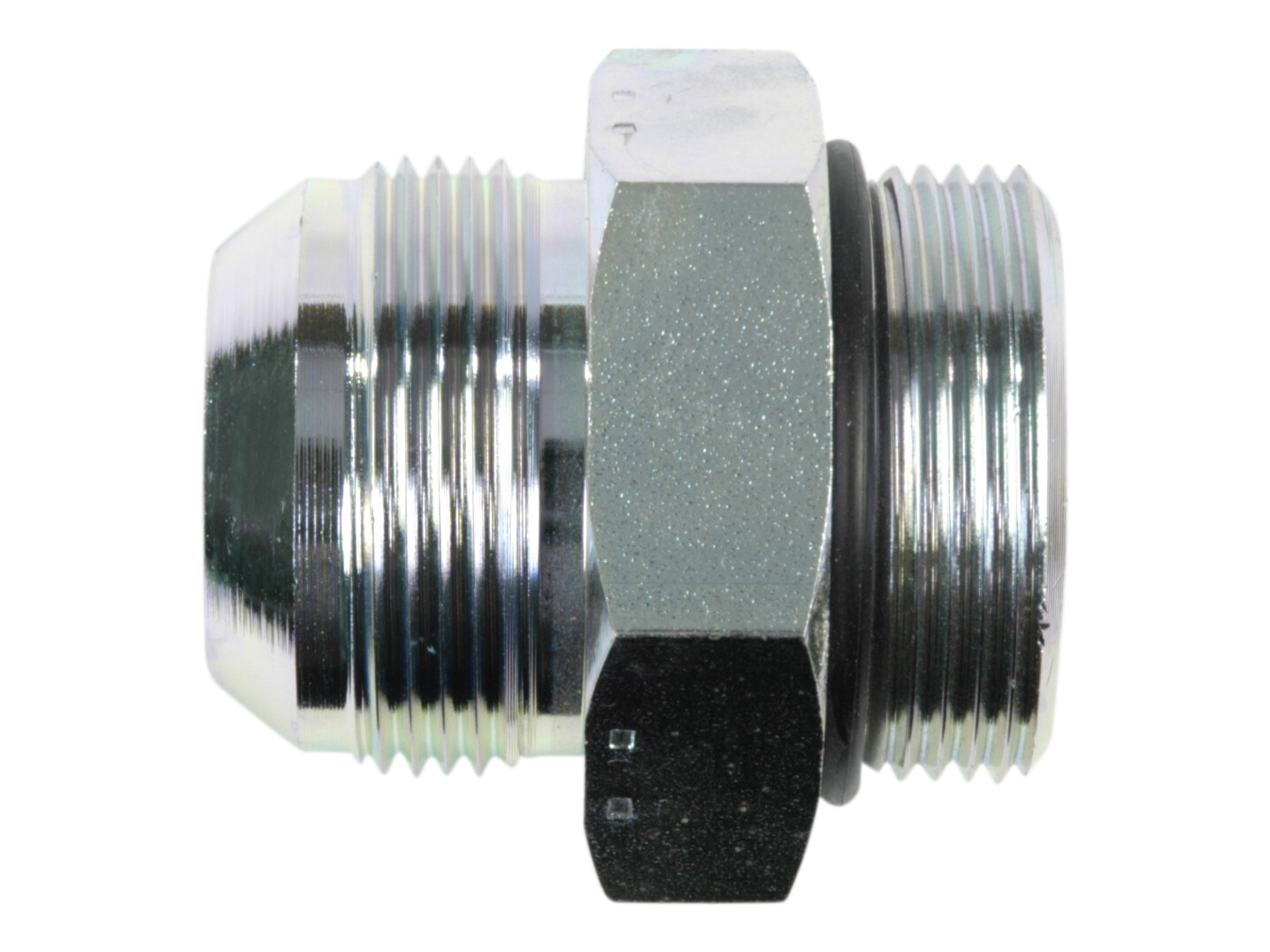

Indskruning 1.5/8-12 JIC udv x 1.5/8-12 UNF udv
Indskruning 1.5/8-12 JIC udv x 1.5/8-12 UNF udv
Partnumber:
M-32-1.5/8
Package size:
0 stk
Min. order quantity is:
1 stk
A
55 mm
Angle
0 °
B
24,5 mm
Brand Name
FOR
CH
48 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
15 mm
Diameter pipe
32 mm
F
1.5/8-12 UNF
J
1.5/8-12 JIC
Material
Stål
Pressure max.
240 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
El-forzinket / hvidkromatiseret
T
32 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.5/8-12 JIC
Thread outer
1.5/8-12 UNF
Package size
0 stk
Barcode
5704334394976
Gross weight
0,364 Kg
Net weight
0,364 Kg
Country of origin
ita
Indskruning 1.5/8-12 JIC udv x 1.5/8-12 UNF udv
Note: Opening 3D files requires a program that supports the file format
