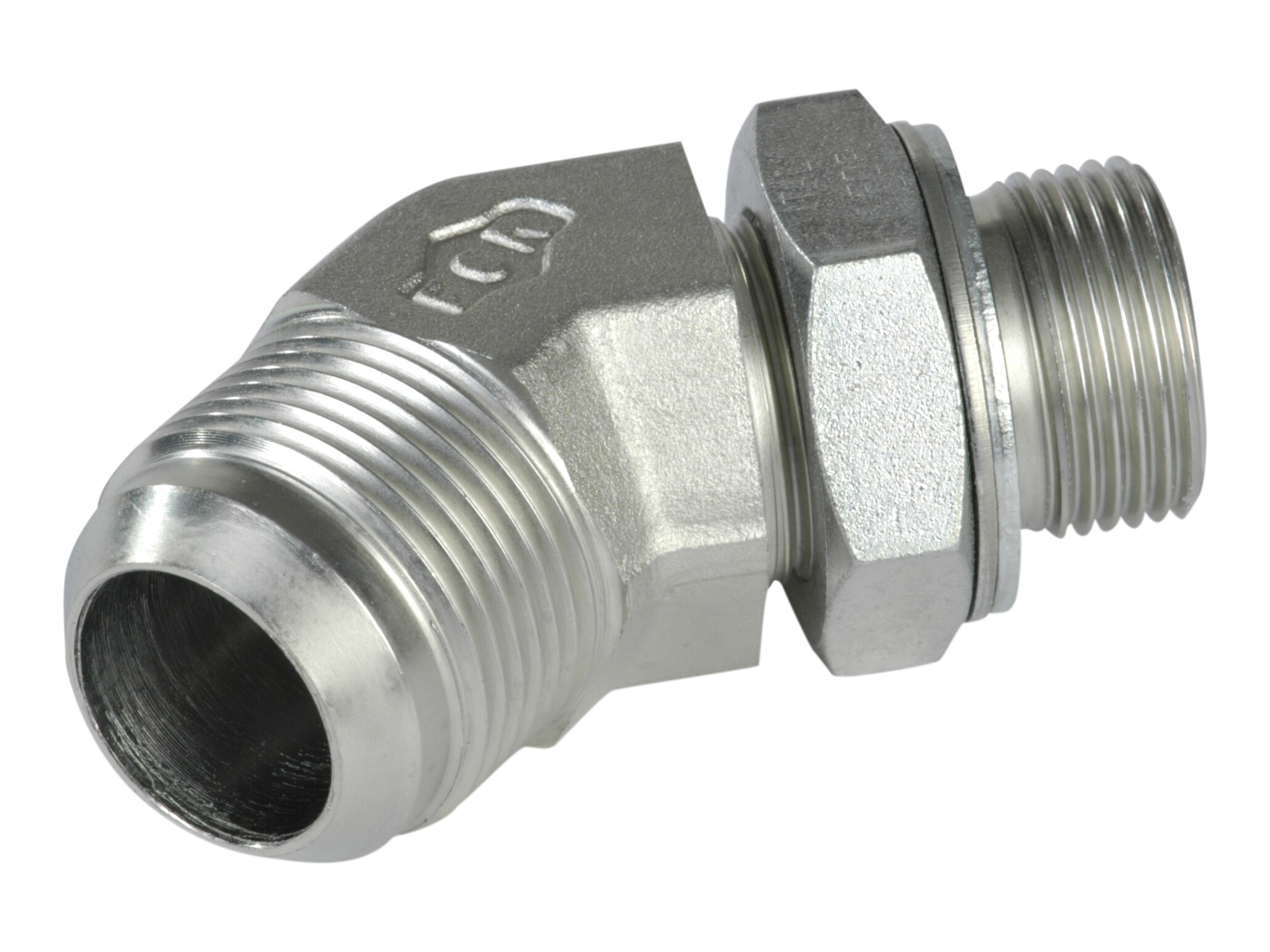

Vinkelindskruning 45 gr 1.5/16-12 JIC udv x 3/4 BSP udv
Vinkelindskruning 45 gr 1.5/16-12 JIC udv x 3/4 BSP udv
Partnumber:
VO-25-3/4
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
45 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
25 mm
Dimension B
37 mm
Dimension C
47 mm
Dimension CH
36 mm
Dimension F
G 3/4 BSP
Dimension J
1.5/16-12 JIC
Dimension T
25 mm
Material
Stål
Pressure max.
290 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread outer
1.5/16-12 JIC
Thread outer
G 3/4 BSP
Package size
0 pcs
Barcode
5704295828978
Gross weight
0,34 Kg
Net weight
0,34 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkelindskruning 45 gr 1.5/16-12 JIC udv x 3/4 BSP udv
