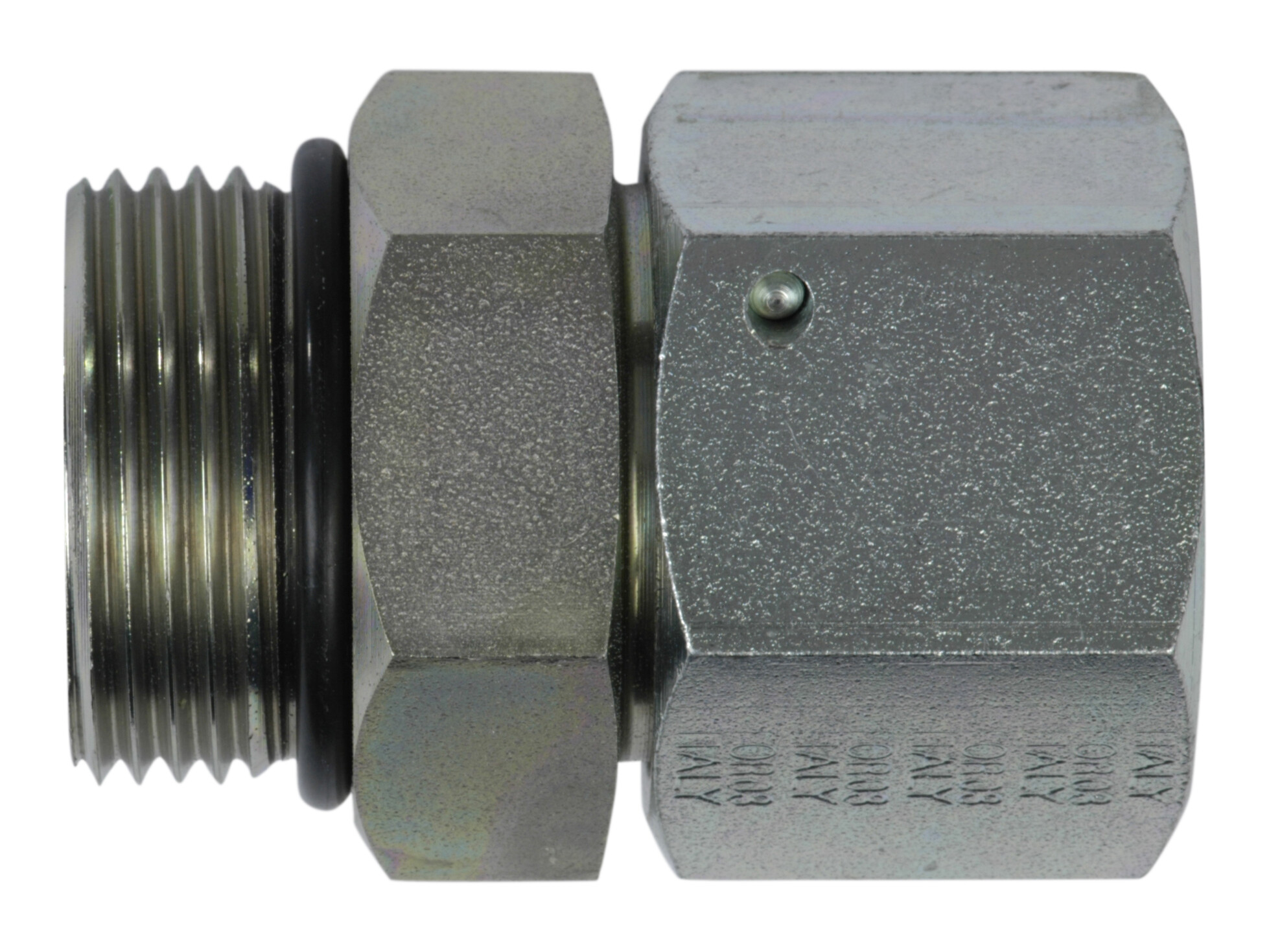

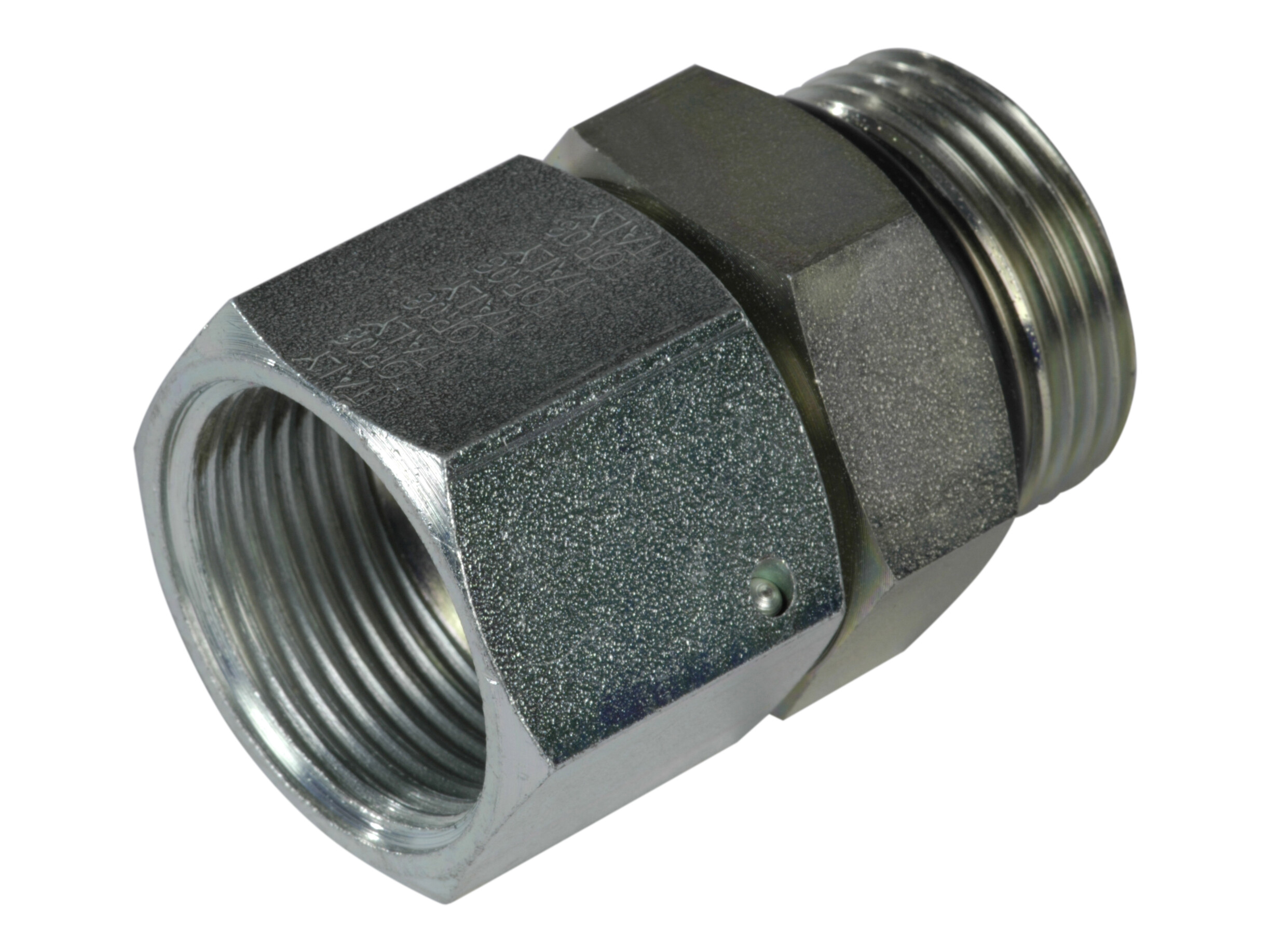

FG-25-1.5/16 - Indskruning 1.5/16-12 JIC omløber x 1.5/16-12 UNF udv
Indskruning 1.5/16-12 JIC omløber x 1.5/16-12 UNF udv
Partnumber:
FG-25-1.5/16
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
25 mm
Dimension A
59 mm
Dimension B
30 mm
Dimension CH
38 mm
Dimension CH1
38 mm
Dimension D
15 mm
Dimension F
1.5/16-12 UNF
Dimension J
1.5/16-12 JIC
Material
Stål
Pressure max.
290 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread inner
1.5/16-12 JIC
Thread outer
1.5/16-12 UNF
Package size
0 pcs
Barcode
5704334274414
Gross weight
0,29 Kg
Net weight
0,29 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 1.5/16-12 JIC omløber x 1.5/16-12 UNF udv
Note: Opening 3D files requires a program that supports the file format
