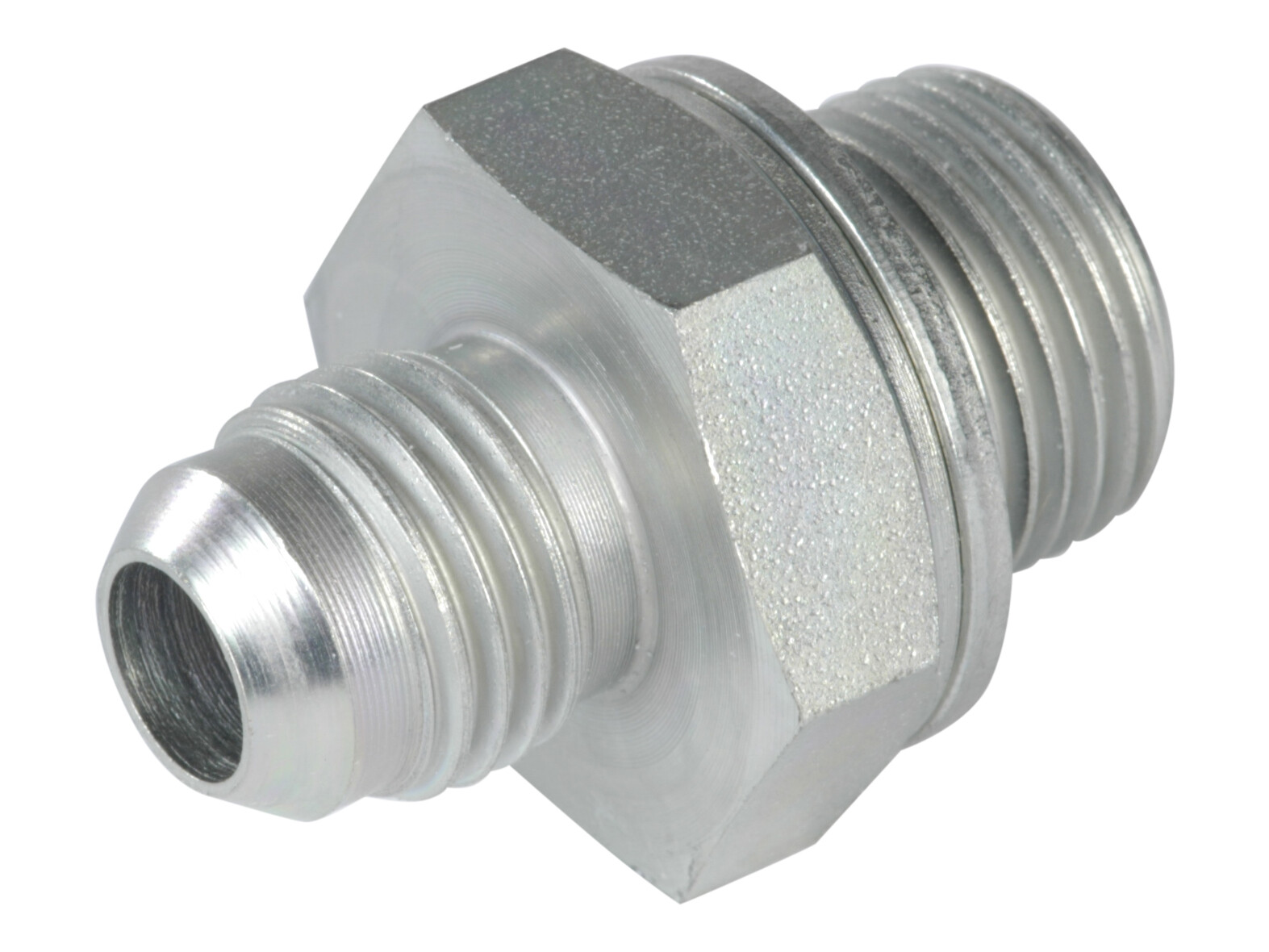

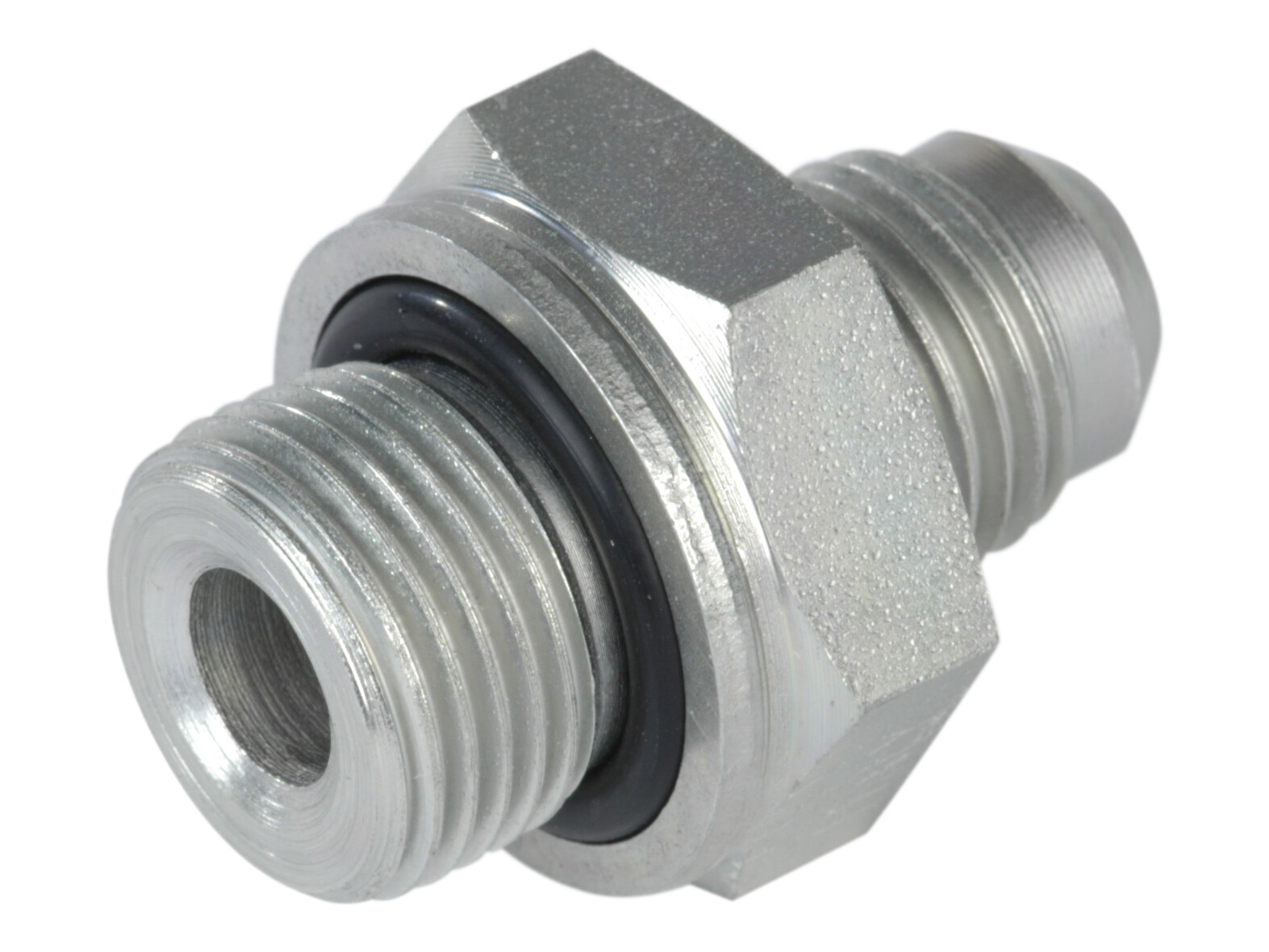

M-10-3/8 - Indskruning 9/16-18 JIC udv x 3/8 BSP udv NW24
Indskruning 9/16-18 JIC udv x 3/8 BSP udv NW24
Varenummer:
M-10-3/8
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
10 mm
Dimension A
34.5 mm
Dimension B
14 mm
Dimension CH
22 mm
Dimension D
10 mm
Dimension F
G 3/8 BSP
Dimension J
9/16-18 JIC
Dimension T
10 mm
Material
Stål
Pressure max.
350 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread
G 3/8 BSP
Thread outer
9/16-18 JIC
Thread outer
G 3/8 BSP
Package size
0 pcs
Barcode
5704334233565
Gross weight
0,05 Kg
Net weight
0,05 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 9/16-18 JIC udv x 3/8 BSP udv NW24
