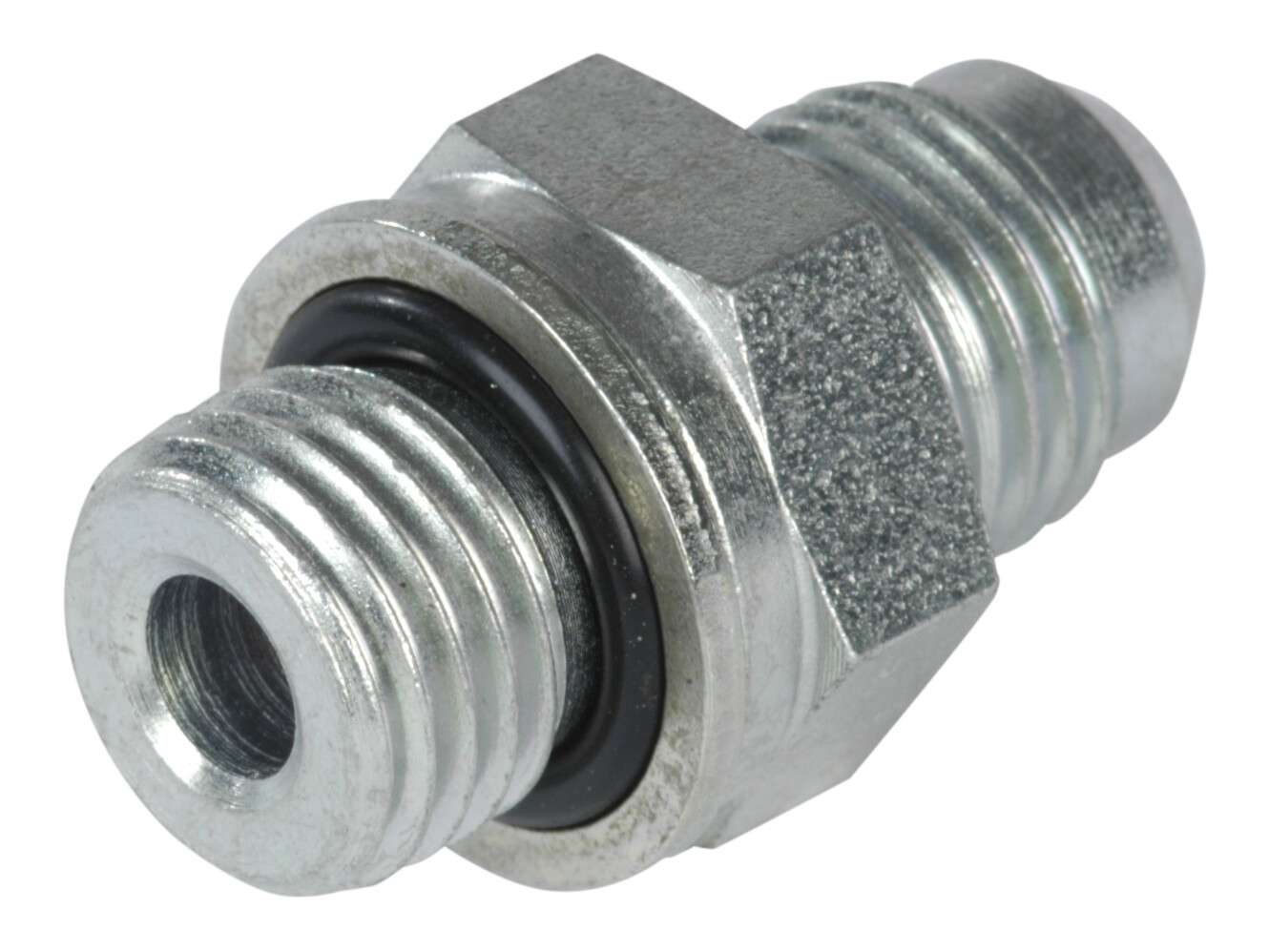

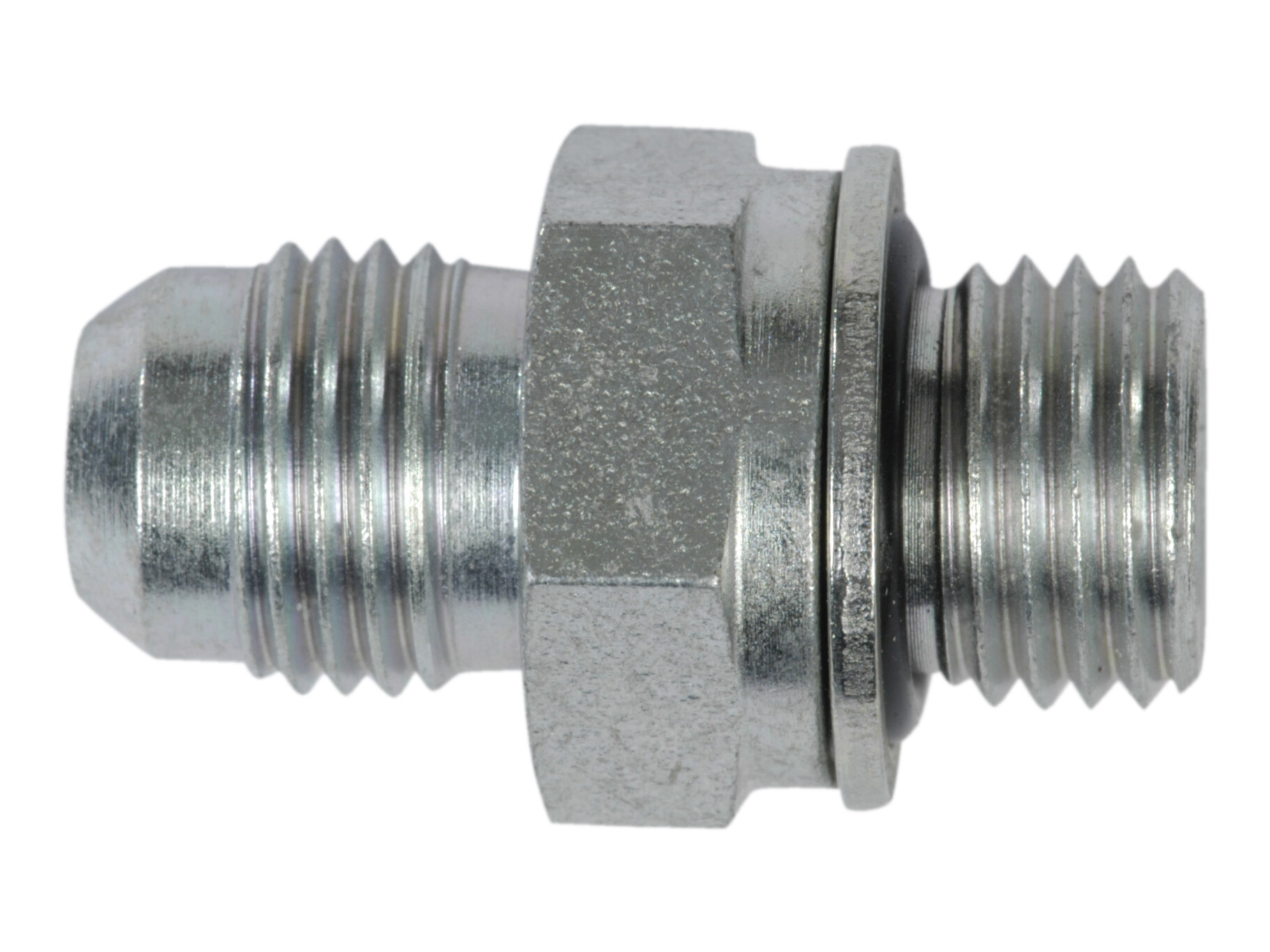

S240-10-14M adaptor MM
S240-10-14M adaptor MM
Partnumber:
JGEM-06-14
Package size:
1 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
10 mm
Dimension A
34 mm
Dimension B
14 mm
Dimension CH
19 mm
Dimension D
12 mm
Dimension F metric
M14x1,5
Dimension J
9/16-18 JIC
Dimension T
10 mm
Material
Steel
Model code
A102067/1014
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
9/16-18 JIC
Thread outer metric
M14x1,5
Package size
1 st
Barcode
195327
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
ITA
Intrastat code
73071110
S240-10-14M adaptor MM
