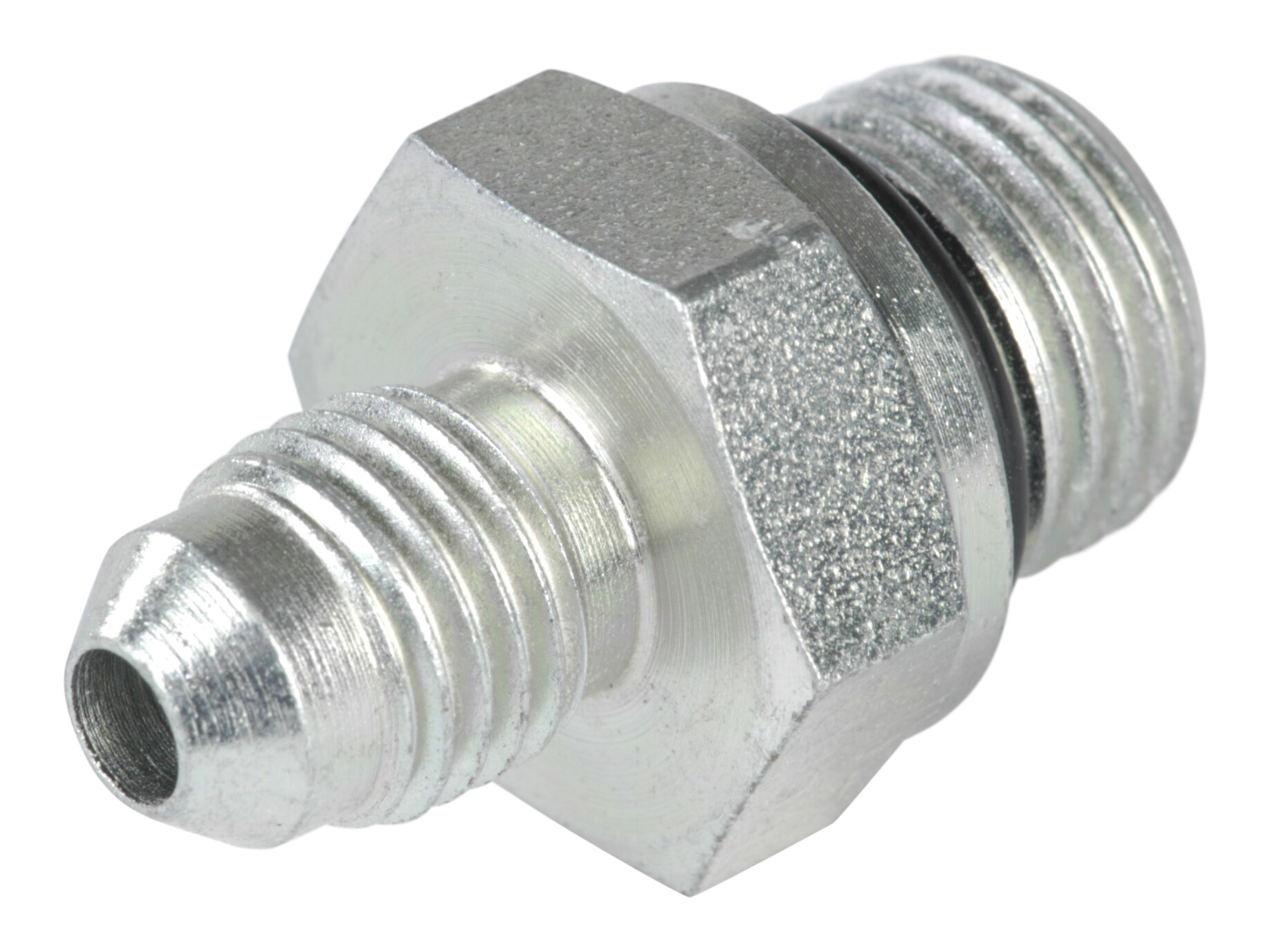

S220-06-14U adaptor UNF

Artikelnummer:

M-06-9/16

Förpackningsstorlek:

0 pcs

Minsta beställningskvantitet:

1 pcs

Accessories (2)

Bushing Ø6

Partnumber: B-06

Nut 7/16-20 JIC

Partnumber: J-06

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

6 mm

Dimension A

32.5 mm

Dimension B

14 mm

Dimension CH

19 mm

Dimension D

10 mm

Dimension F

9/16-18 UNF

Dimension J

7/16-20 JIC

Dimension T

6 mm

Material

Steel

Pressure max.

450 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

7/16-20 JIC

Thread outer

9/16-18 UNF

Package size

0 pcs

Barcode

5704334274582

Gross weight

0,04 Kg

Net weight

0,04 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S220-06-14U adaptor UNF

Note: Opening 3D files requires a program that supports the file format
