S230-10-21G adaptor BSP
\ufeff
-

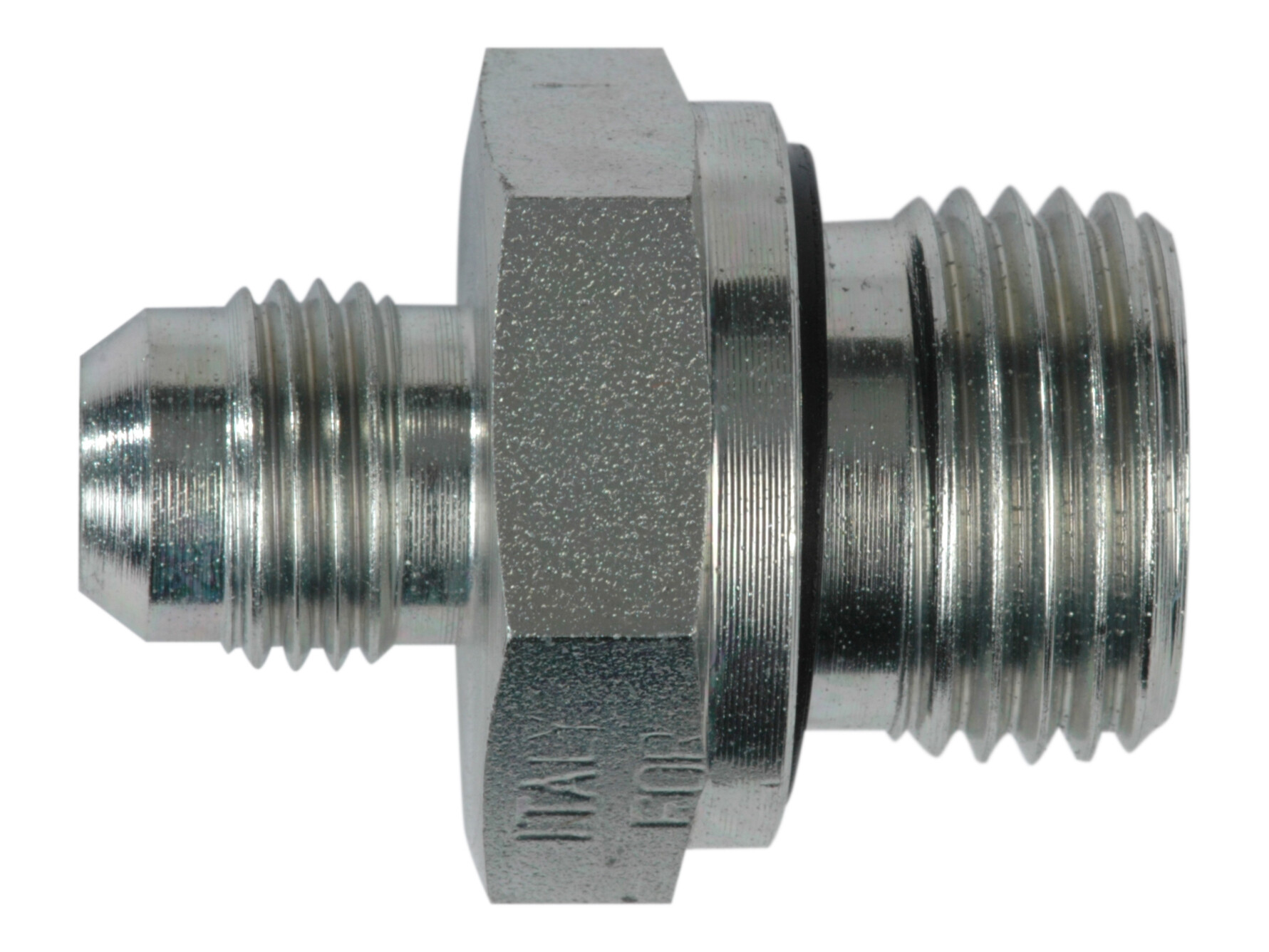

JIC 37° straight basic connector
- External thread (BSPP)
- With ED seal, NBR Shore 85 +5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Artikelnummer:
M-10-1/2WD
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
A
39 mm
Angle
0 °
B
14 mm
Brand Name
FOR
CH
27 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
14 mm
Diameter pipe
10 mm
F
G 1/2 BSP
J
9/16-18 JIC
Material
Steel
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
10 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread
G 1/2 BSP
Thread outer
9/16-18 JIC
Thread outer
G 1/2 BSP
Package size
0 pcs
Barcode
5704295496641
Gross weight
0,08 Kg
Net weight
0,08 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° straight basic connector
- External thread (BSPP)
- With ED seal, NBR Shore 85 +5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
