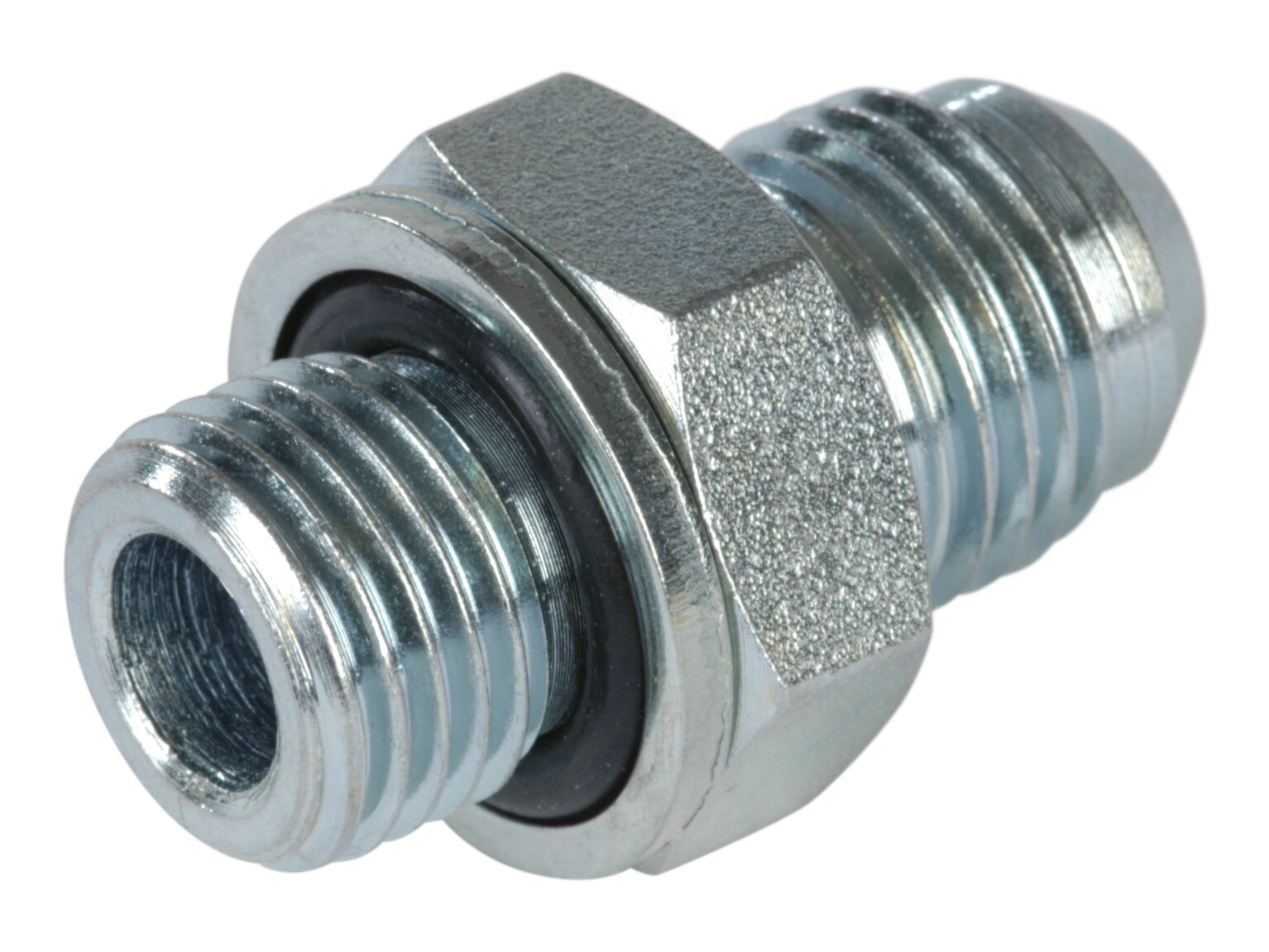

S230-10-13G adaptor BSP

Partnumber:

M-10-1/4

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (2)

Bushing Ø10

Partnumber: B-10

Nut 9/16 -18 JIC NW 17 mm

Partnumber: J-10

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

10 mm

Dimension A

34.5 mm

Dimension B

14 mm

Dimension CH

19 mm

Dimension D

10 mm

Dimension F

G 1/4 BSP

Dimension J

9/16-18 JIC

Dimension T

10 mm

Material

Steel

Model code

A102023/1013

Pressure max.

350 bar

Surface treatment

Electro-galvanized / White chromatized

Thread

G 1/4 BSP

Thread outer

9/16-18 JIC

Thread outer

G 1/4 BSP

Package size

0 pcs

Barcode

5704334235347

Gross weight

0,03 Kg

Net weight

0,03 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S230-10-13G adaptor BSP

Note: Opening 3D files requires a program that supports the file format
