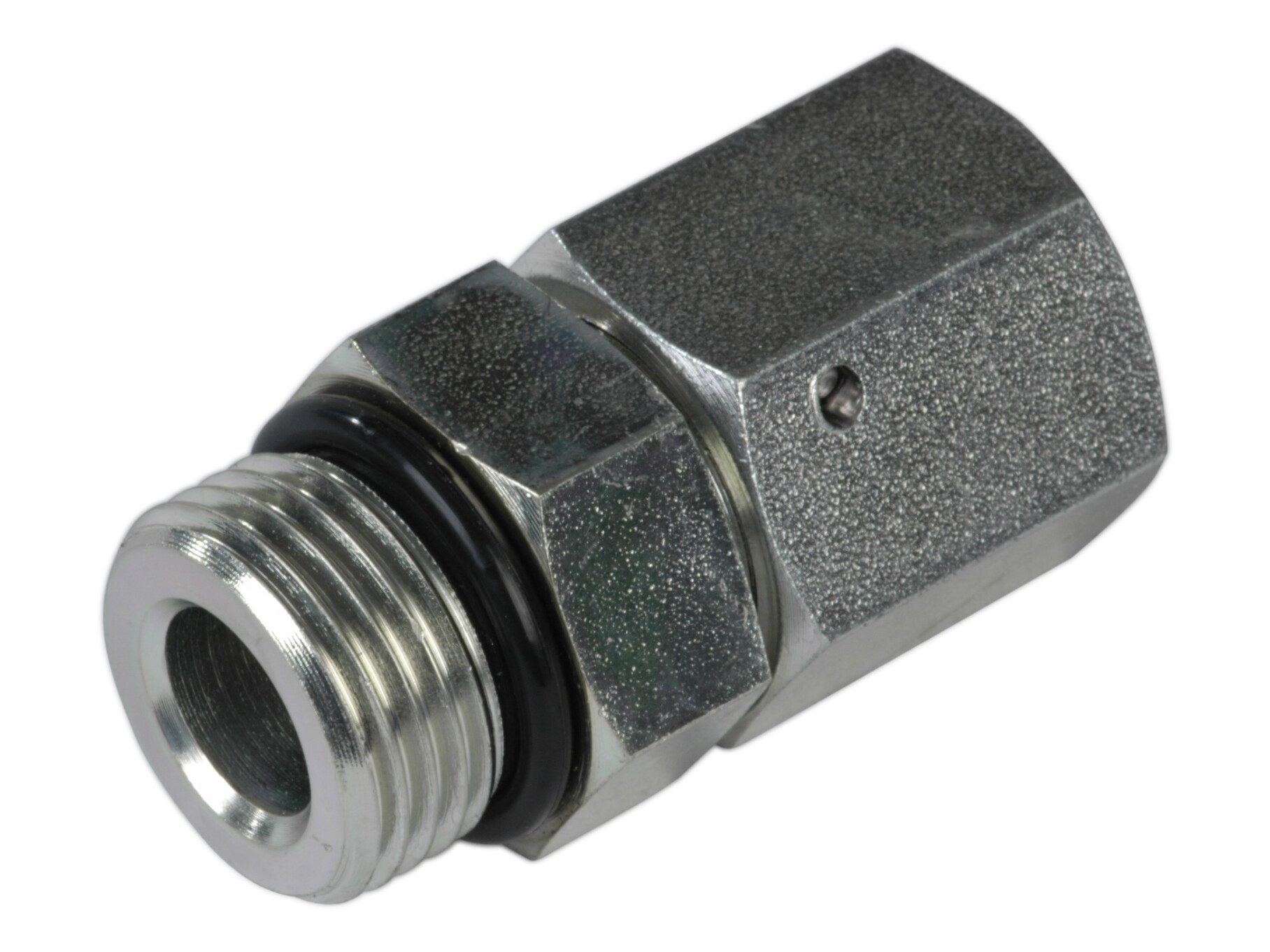

S170-12-19U adaptor with nut
S170-12-19U adaptor with nut
Partnumber:
FG-12-3/4UNF
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Dimension A
43.5 mm
Dimension B
23 mm
Dimension CH
22 mm
Dimension CH1
22 mm
Dimension D
11 mm
Dimension F
3/4-16 UNF
Dimension J
3/4-16 JIC
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
Thread inner
3/4-16 JIC
Thread outer
3/4-16 UNF
Förpackningsstorlek
0 pcs
Streckkod
5704334274322
Bruttovikt
0,08 Kg
Nettovikt
0,08 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
S170-12-19U adaptor with nut
Obs: För att öppna 3D-filer krävs ett program som stöder filformatet
