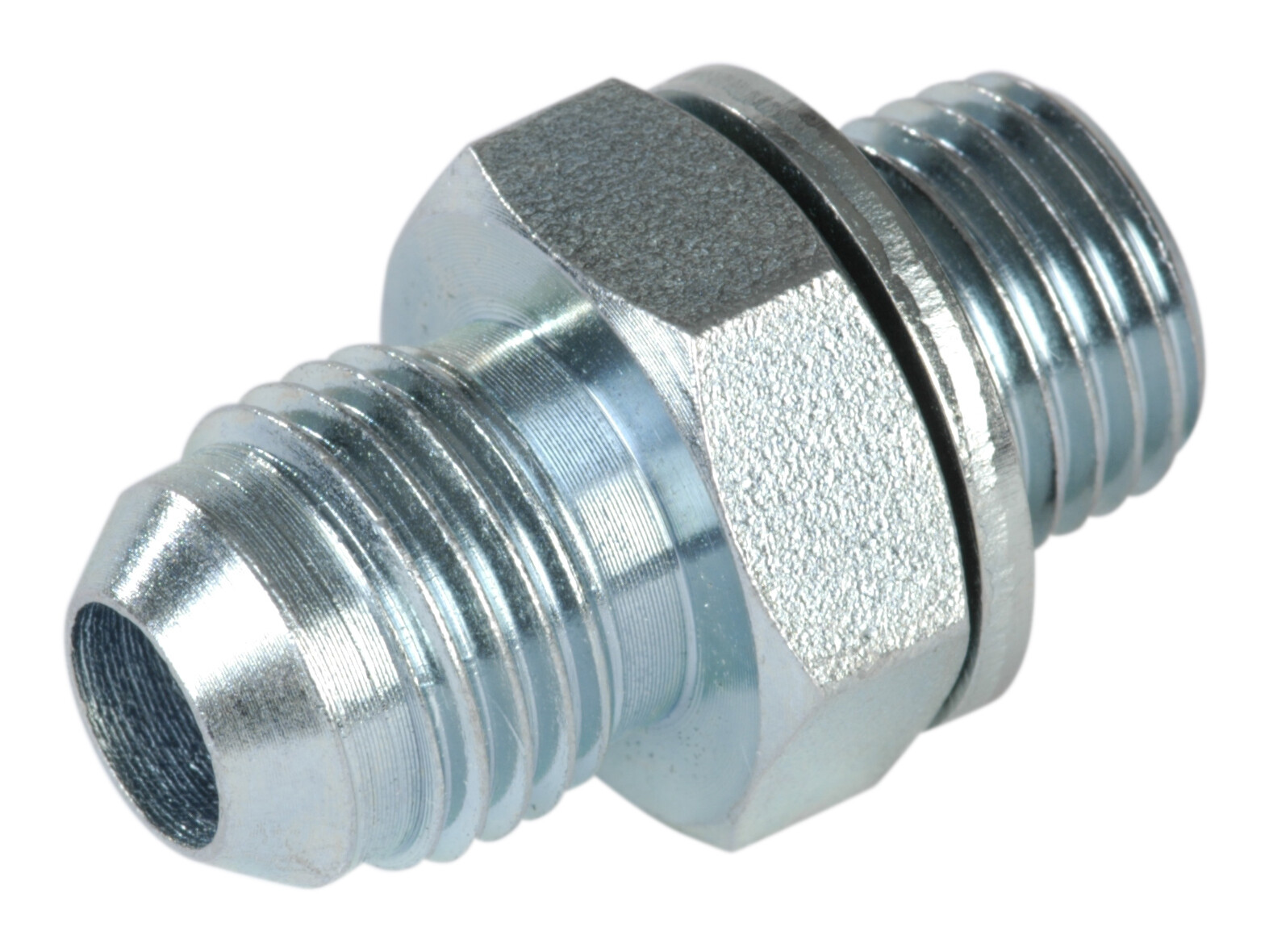

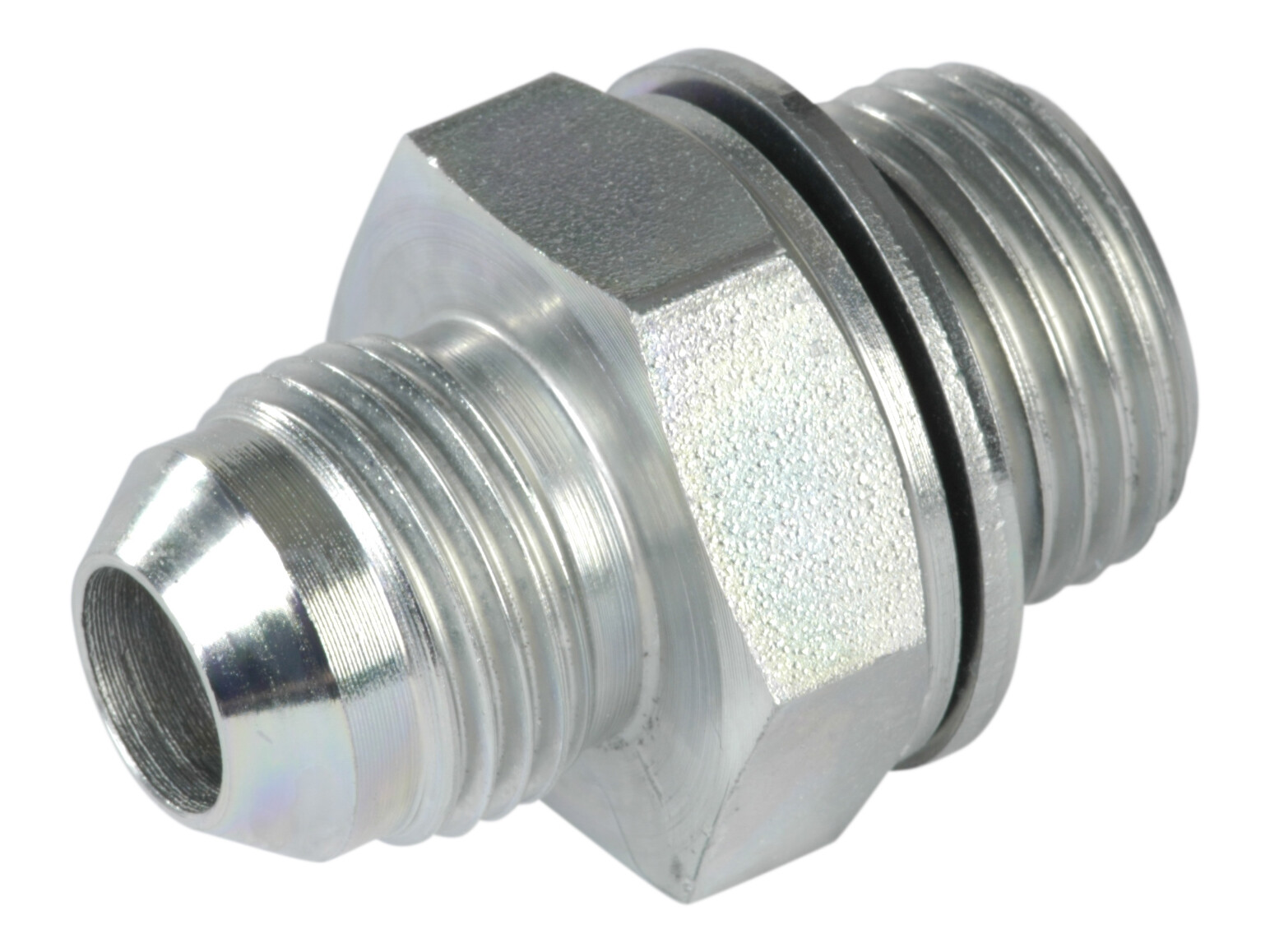

S180-12-21G adaptor with nut
\ufeff
-
JIC female connector, straight, 37° taper
- External thread (BSPP)
- ED seal NBR, shore-A 85 \u200b\u200b+5/-0
- Operating temperature range -20° to +120°
- ISO 1179 - for threaded ports
Varenummer:
FG-12-1/2WD
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
A
47,5 mm
Angle
0 °
B
23 mm
Brand Name
FOR
CH
27 mm
CH1
22 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
12 mm
Diameter pipe
12 mm
F
G 1/2 BSP
J
3/4-16 JIC
Material
Steel
Model code
A102188/1221
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
12 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread inner
3/4-16 JIC
Thread outer
G 1/2 BSP
Package size
0 pcs
Barcode
5704334274292
Gross weight
0,11 Kg
Net weight
0,11 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC female connector, straight, 37° taper
- External thread (BSPP)
- ED seal NBR, shore-A 85 \u200b\u200b+5/-0
- Operating temperature range -20° to +120°
- ISO 1179 - for threaded ports
Note: Opening 3D files requires a program that supports the file format
