S190-12-16M adaptor with nut

Indskruning 3/4-16 JIC omløber x M16x1.5 udv

Partnumber:

FG-12-16

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

44 mm

23 mm

22 mm

CH1

22 mm

11 mm

Dimension F metrisk

M16x1,5

Gevind indvendig

3/4-16 JIC

Gevind udvendig metrisk

M16x1,5

3/4-16 JIC

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Steel

Mærke navn

FOR

Overfladebehandling

Electro-galvanized / White chromatized

12 mm

Tryk maks.

350 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704334274315

Gross weight

0,07 Kg

Net weight

0,07 Kg

Country of origin

ITA

Intrastat code

73071110

Product information

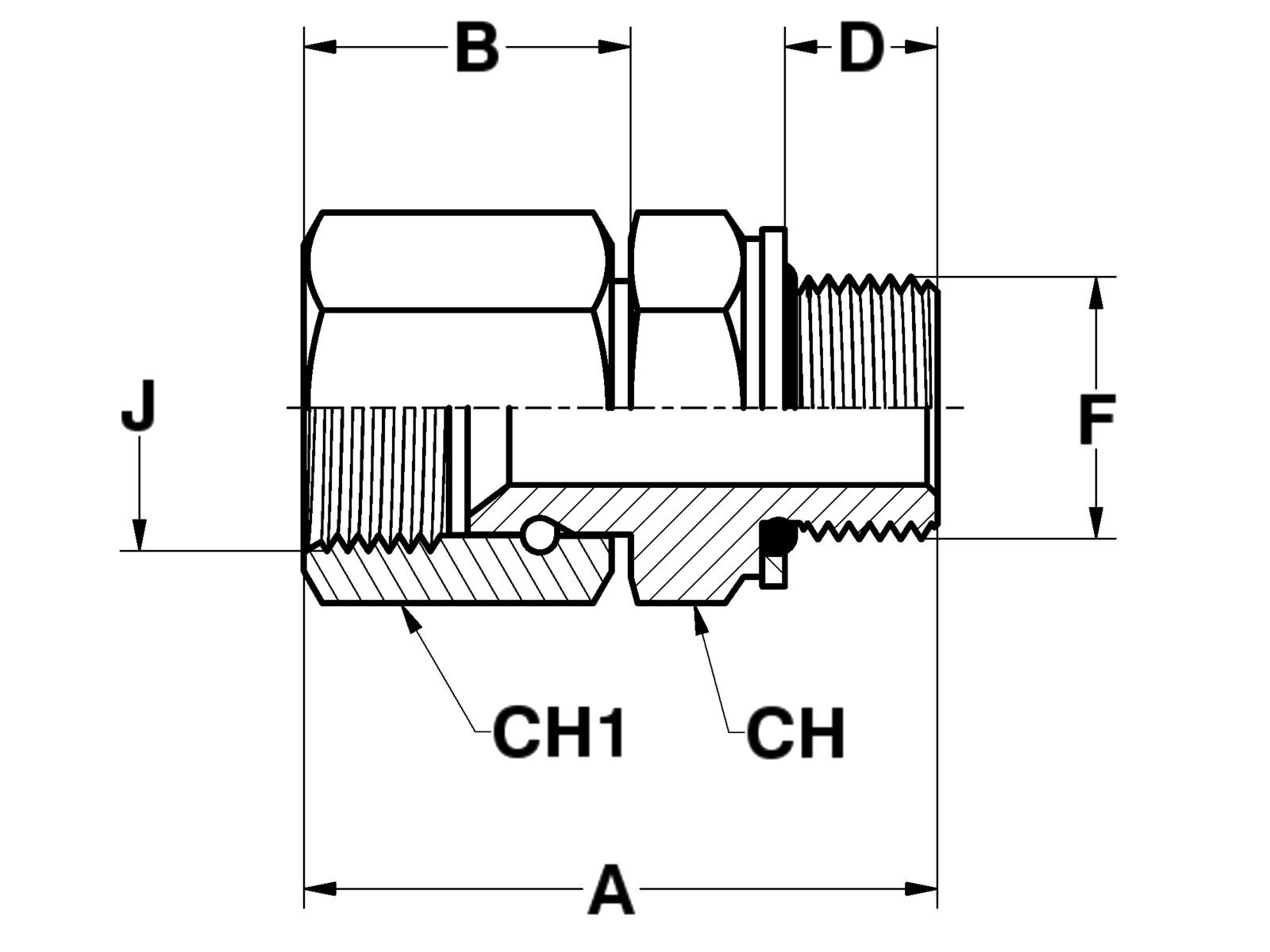

Measure sketch

Indskruning 3/4-16 JIC omløber x M16x1.5 udv

Note: Opening 3D files requires a program that supports the file format
