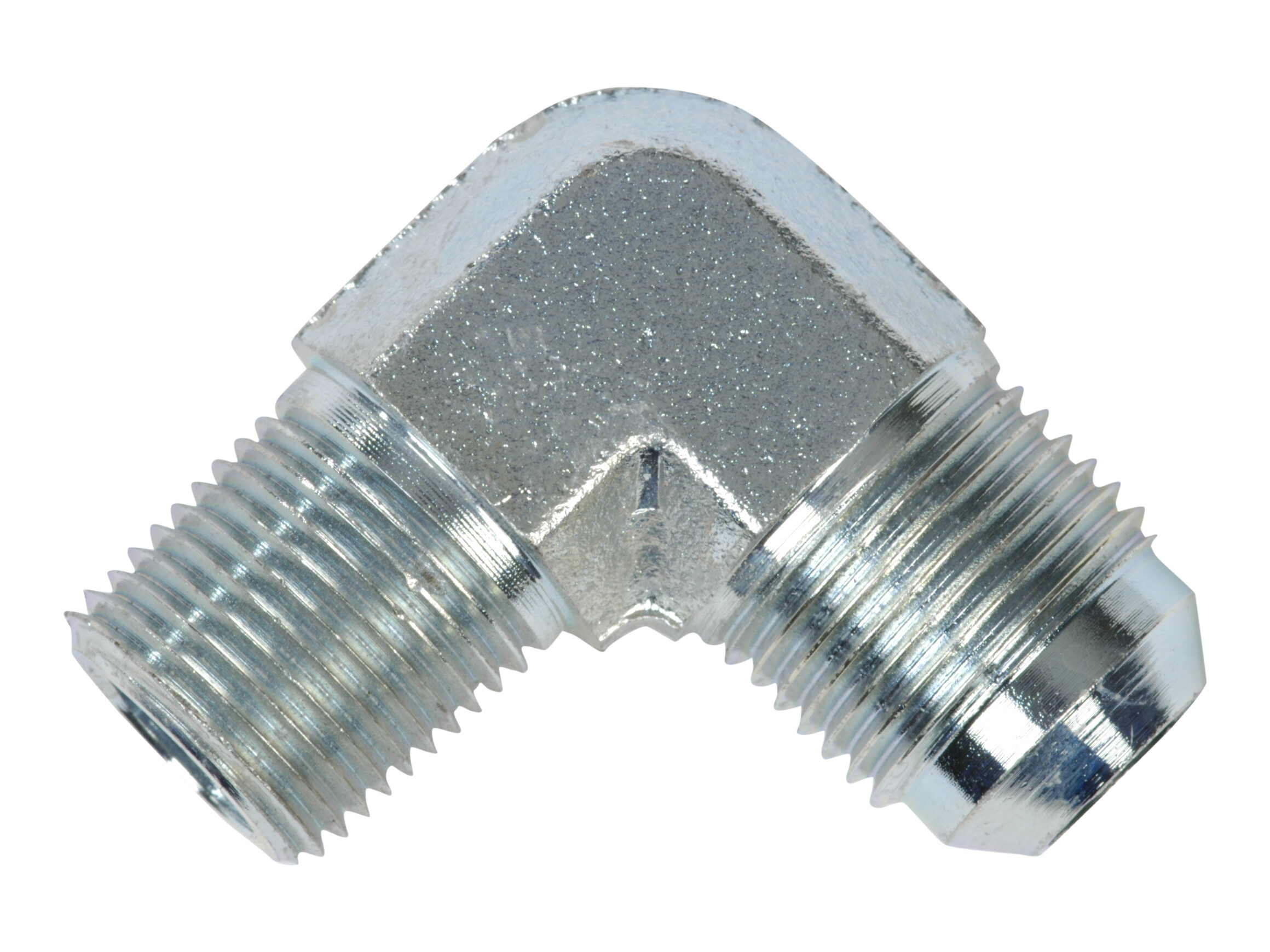

S525-12-17N elbow NPT

Partnumber:

C1-12-3/8

Package size:

0 pcs

Min. order quantity is:

1 pcs

Tilbehør (2)

Bushing Ø12

Partnumber: B-12

Nut 3/4-16 JIC

Partnumber: J-12

Specifications
Dimensions and shipping

Angle

90 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

12 mm

Dimension B

31.5 mm

Dimension C

31 mm

Dimension F

3/8 NPT

Dimension J

3/4-16 JIC

Dimension T

12 mm

Material

Steel

Pressure max.

350 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

3/8 NPT

Thread outer

3/4-16 JIC

Package size

0 pcs

Barcode

5704334274148

Gross weight

0,08 Kg

Net weight

0,08 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S525-12-17N elbow NPT

Note: Opening 3D files requires a program that supports the file format
