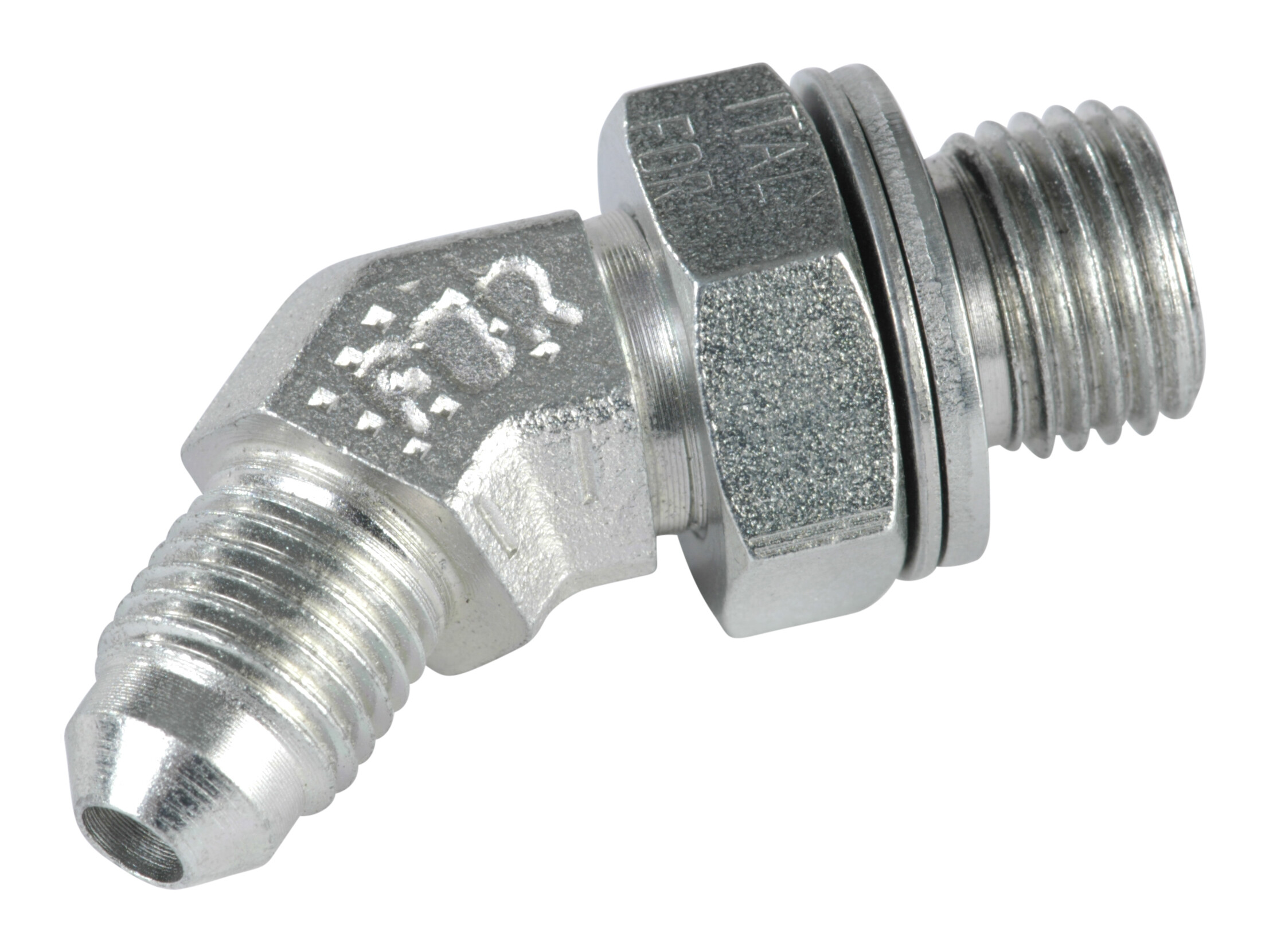

S615-06-13G elbow BSP

Varenummer:

VO-06-1/4

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Accessories (2)

Bushing Ø6

Partnumber: B-06

Nut 7/16-20 JIC

Partnumber: J-06

Specifications
Dimensions and shipping

Angle

45 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

6 mm

Dimension B

21 mm

Dimension C

29 mm

Dimension CH

19 mm

Dimension F

G 1/4 BSP

Dimension J

7/16-20 JIC

Dimension T

6 mm

Material

Steel

Pressure max.

450 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

7/16-20 JIC

Thread outer

G 1/4 BSP

Package size

0 pcs

Barcode

5704334274940

Gross weight

0,05 Kg

Net weight

0,05 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S615-06-13G elbow BSP

Note: Opening 3D files requires a program that supports the file format
