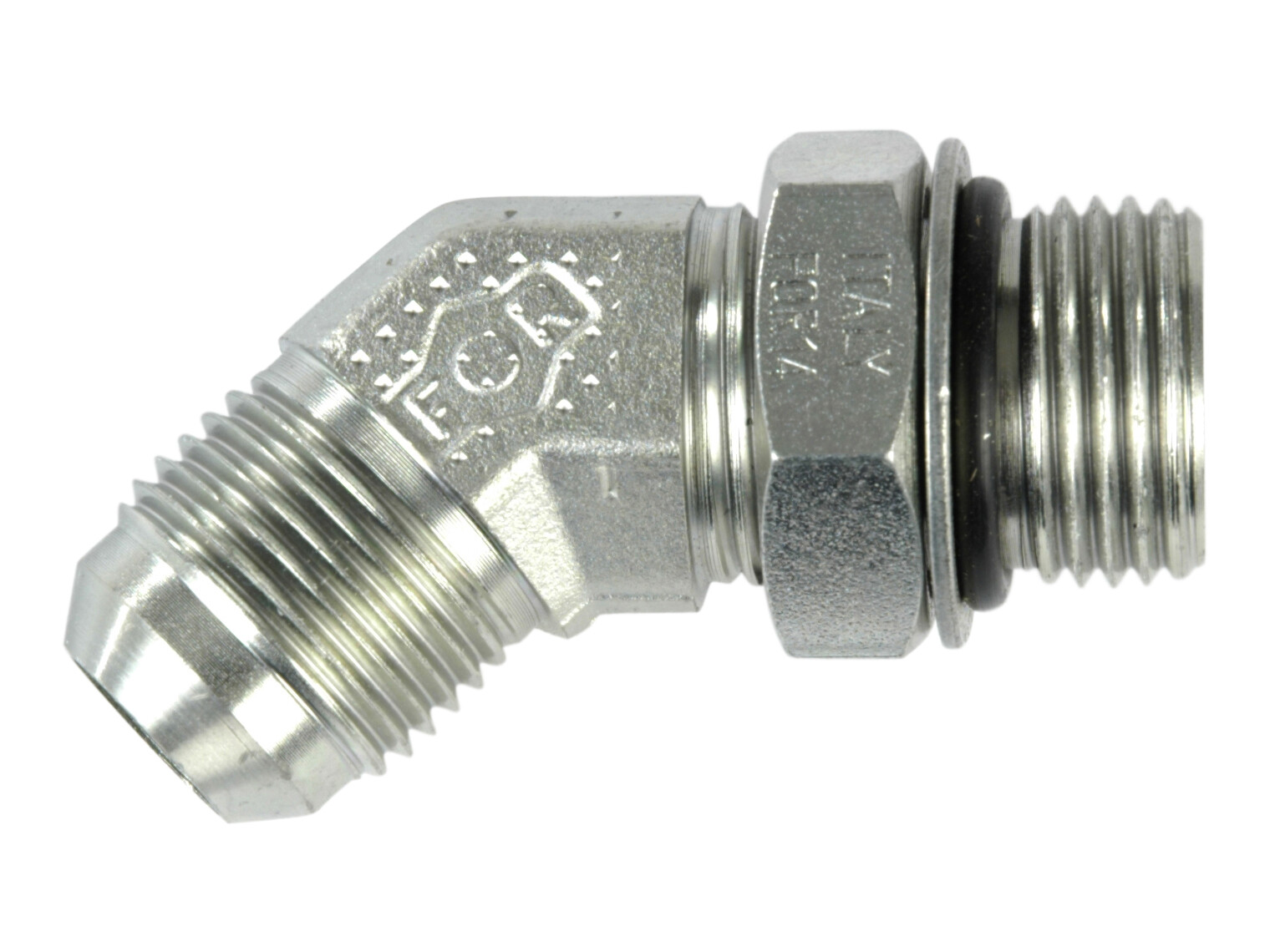

S590-16-22U elbow UNF
S590-16-22U elbow UNF
Partnumber:
VO-16-7/8
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
45 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
16 mm
Dimension B
28 mm
Dimension C
38.5 mm
Dimension CH
27 mm
Dimension F
7/8-14 UNF
Dimension J
7/8-14 JIC
Dimension T
16 mm
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
7/8-14 JIC
Thread outer
7/8-14 UNF
Package size
0 pcs
Barcode
5704334275022
Gross weight
0,15 Kg
Net weight
0,15 Kg
Country of origin
ITA
Intrastat code
73071110
S590-16-22U elbow UNF
