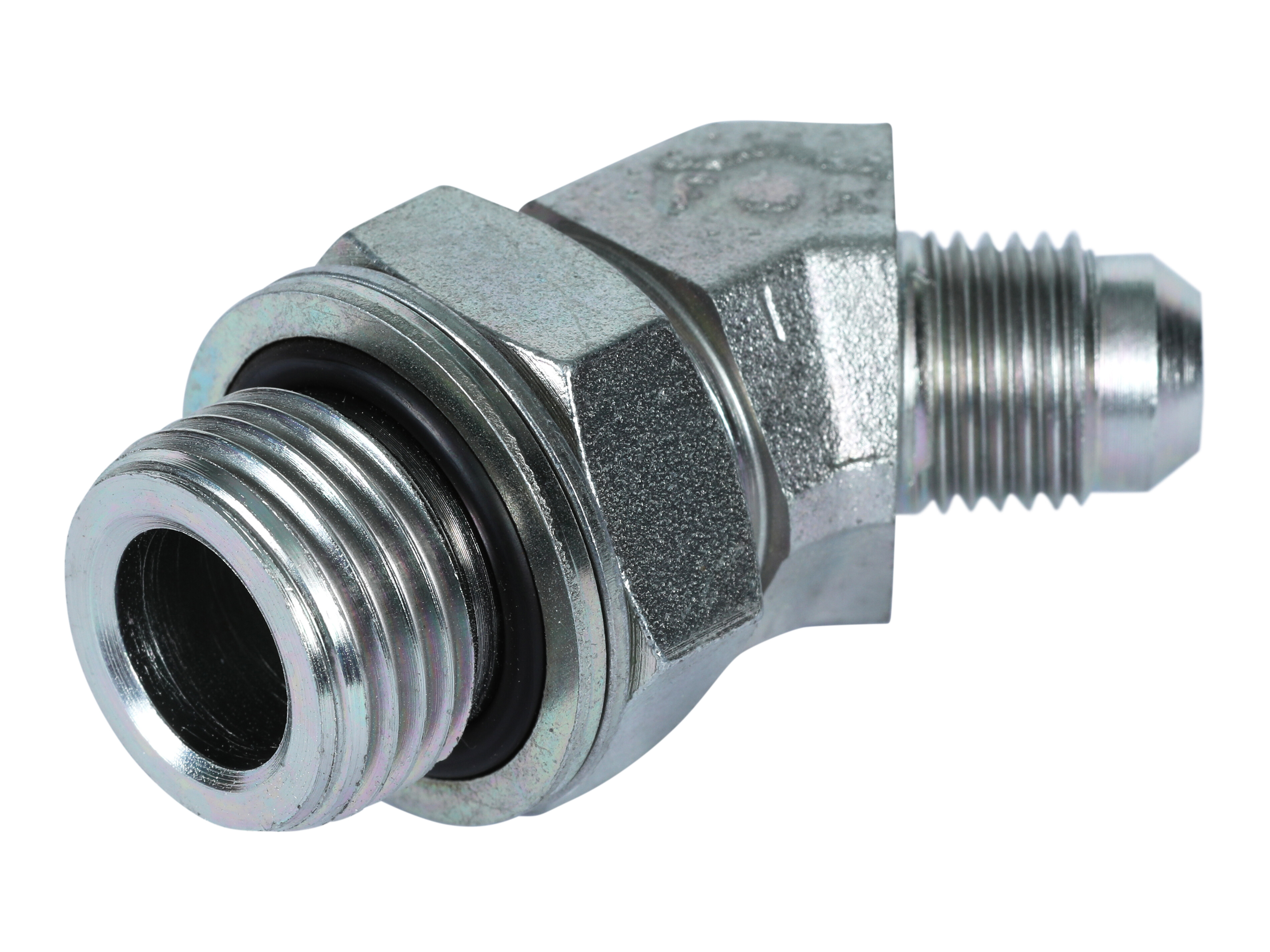

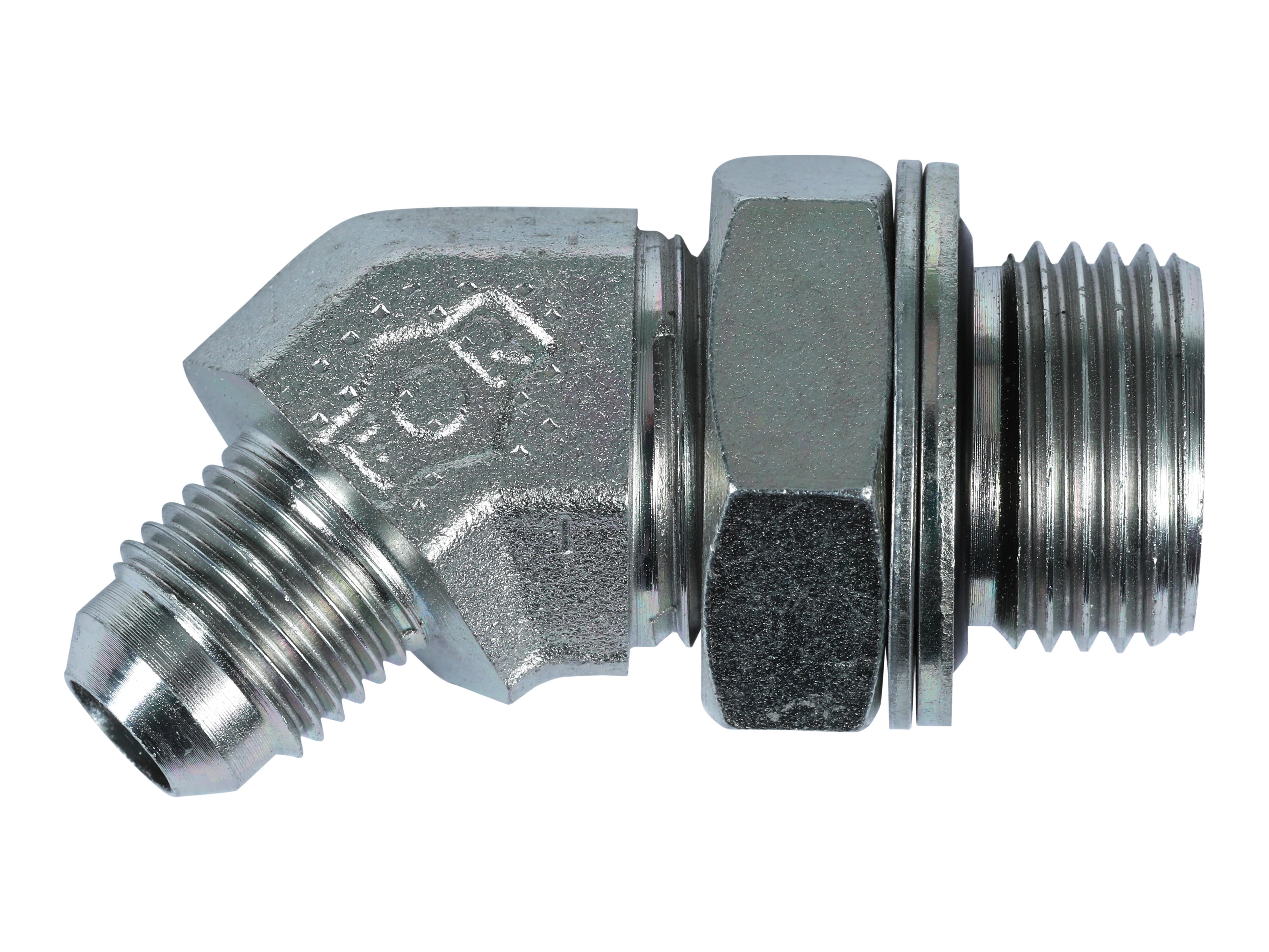

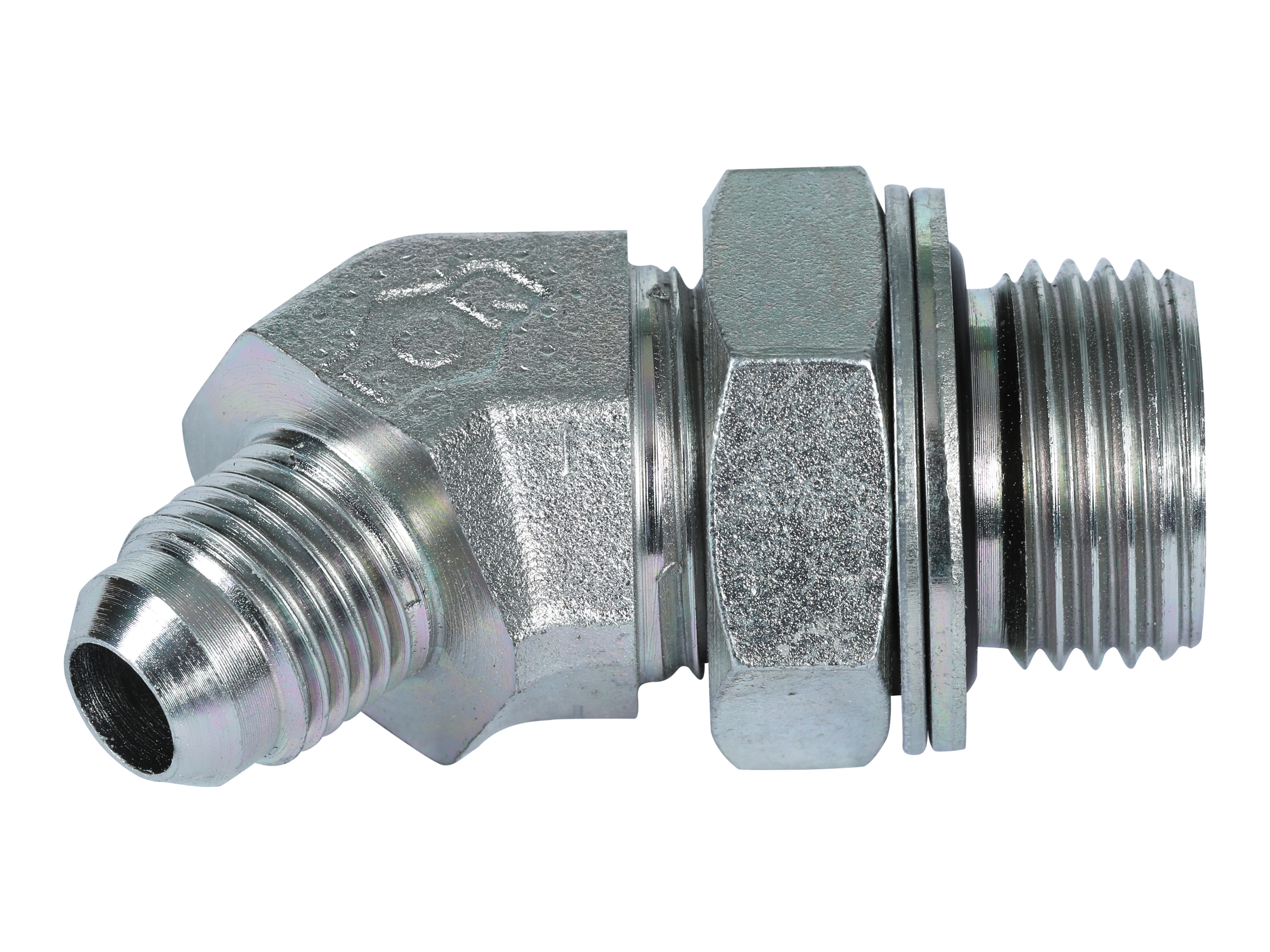

Elbow adapter 45 deg. 9/16-18 JIC male x 1/2 BSP male

Elbow adapter 45 deg. 9/16-18 JIC male x 1/2 BSP male

Vinkelindskruning 45 gr 9/16-18 JIC udv x 1/2 BSP udv

Partnumber:

VO-10-1/2

Package size:

0 pcs

Min. order quantity is:

1 pcs

Tilbehør (2)

Bushing Ø10

Partnumber: B-10

J-10 - Omløber 9/16-18 JIC Nøglevidde 17mm

Partnumber: J-10

Specifications
Dimensions and shipping

Angle

45 °

22,5 mm

Brand Name

FOR

38,5 mm

27 mm

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

10 mm

G 1/2 BSP

9/16-18 JIC

Material

Steel

Pressure max.

350 bar

Surface treatment

Electro-galvanized / White chromatized

10 mm

Thread outer

9/16-18 JIC

Thread outer

G 1/2 BSP

Package size

0 pcs

Barcode

5704334179030

Gross weight

0,12 Kg

Net weight

0,12 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Vinkelindskruning 45 gr 9/16-18 JIC udv x 1/2 BSP udv

Note: Opening 3D files requires a program that supports the file format
