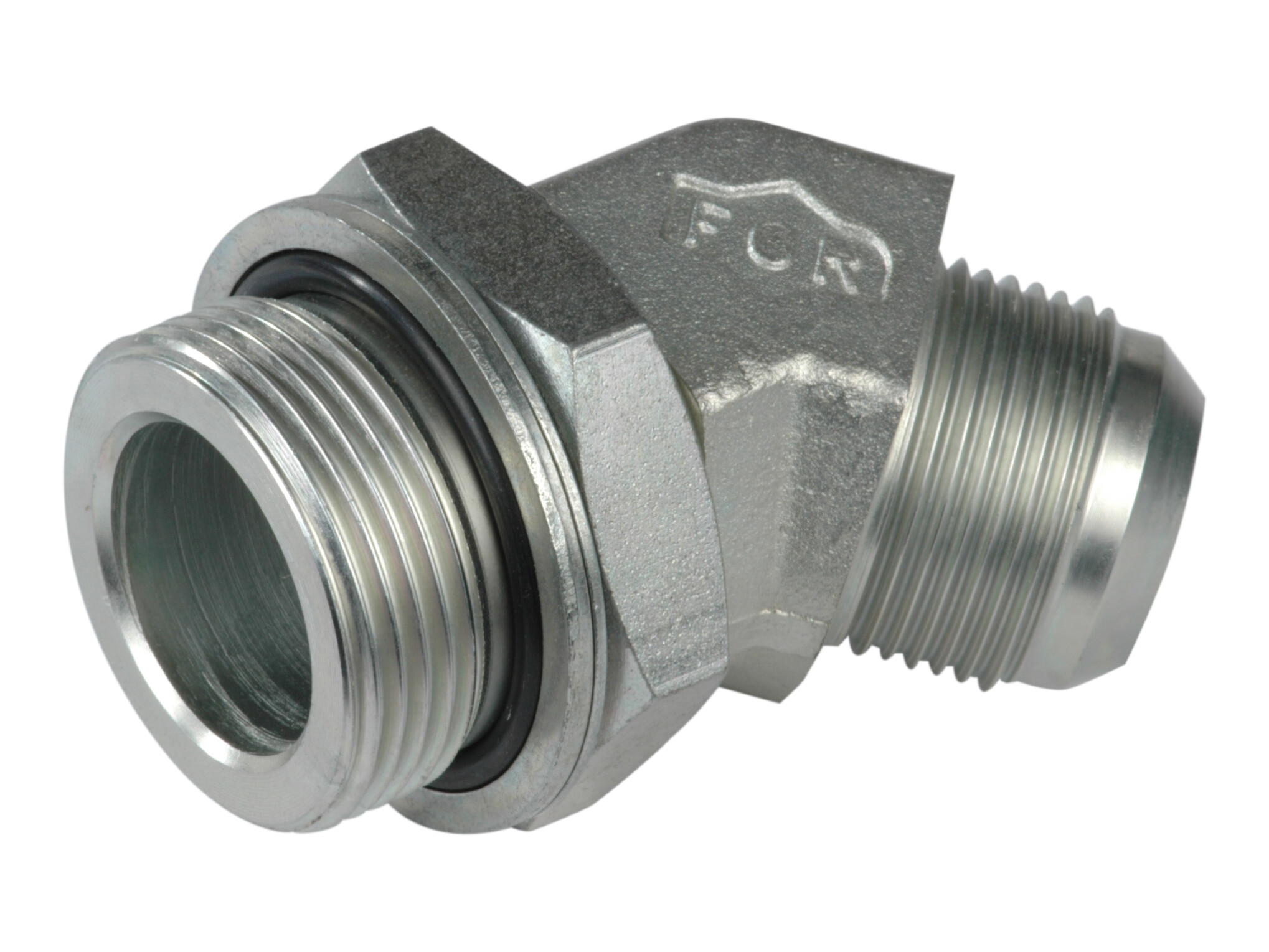

Elbow adapter 45 deg. 1.5/16-12 JIC male x 1.1/4 BSP male
Elbow adapter 45 deg. 1.5/16-12 JIC male x 1.1/4 BSP male
Partnumber:
VO-25-1.1/4
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
45 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
25 mm
Dimension B
39 mm
Dimension C
48.5 mm
Dimension CH
50 mm
Dimension F
G 1.1/4 BSP
Dimension J
1.5/16-12 JIC
Dimension T
25 mm
Material
Steel
Pressure max.
290 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
1.5/16-12 JIC
Thread outer
G 1.1/4 BSP
Package size
0 pcs
Barcode
5704334144311
Gross weight
0,57 Kg
Net weight
0,57 Kg
Country of origin
ITA
Intrastat code
73071110
Elbow adapter 45 deg. 1.5/16-12 JIC male x 1.1/4 BSP male
