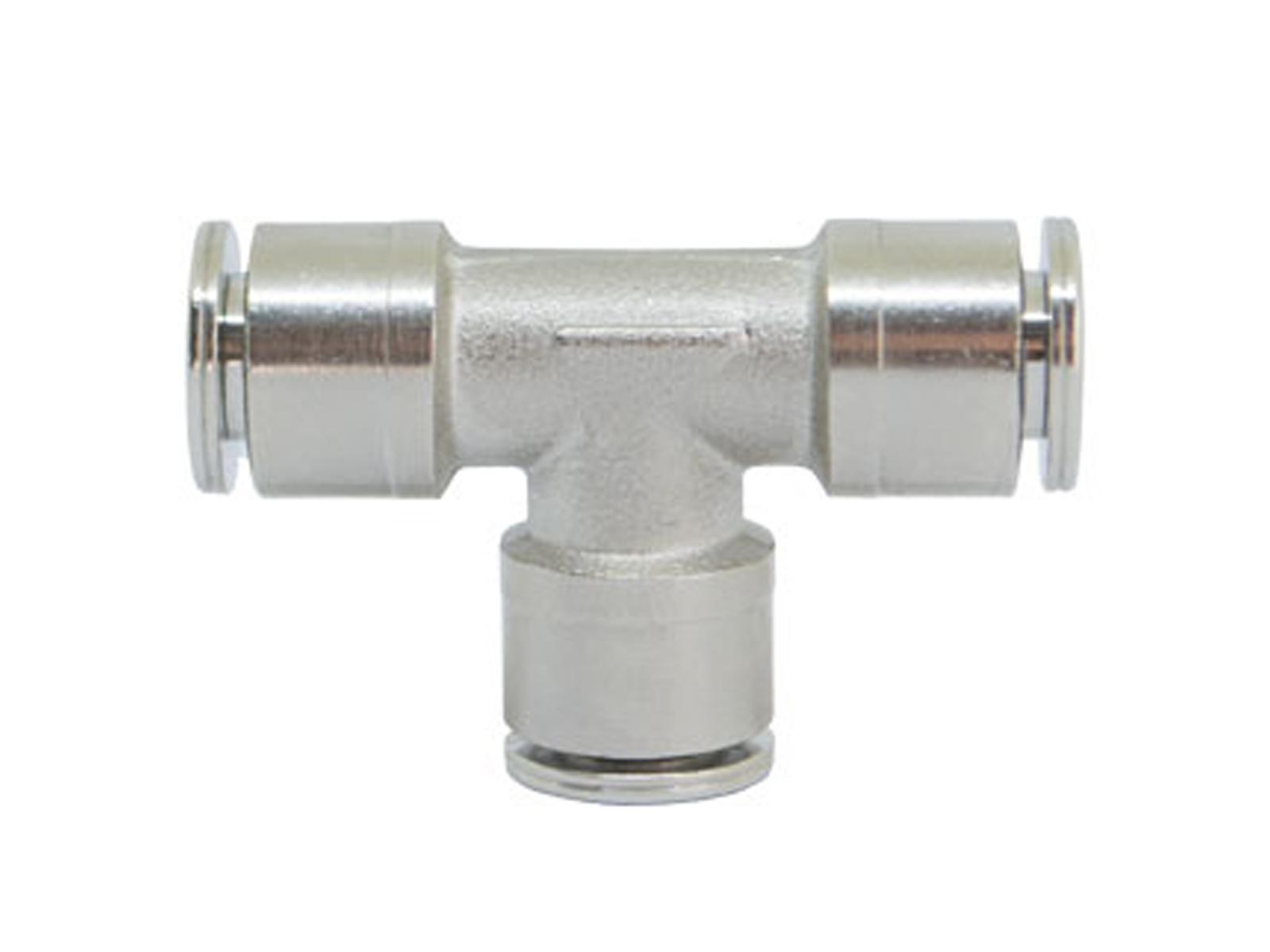

T-Skarvkoppling push-in x push-in 10060

T-Skarvkoppling push-in x push-in 10060

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Pressure max.
100600400 100600400 - Skarvkoppling T Ø4 mm 4 mm 20 bar
100600500 100600500 - Skarvkoppling T Ø5 mm 5 mm 20 bar
100600600 100600600 - Skarvkoppling T Ø6 mm 6 mm 20 bar
100600800 100600800 - Skarvkoppling T Ø8 mm 8 mm 20 bar
100601000 100601000 - Skarvkoppling T Ø10 mm 10 mm 20 bar
100601200 100601200 - Skarvkoppling T Ø12 mm 12 mm 20 bar
100601400 100601400 - Skarvkoppling T Ø14 mm 14 mm 20 bar
120600500 120600500 - T-koppling 5/16 och 8mm 8 mm 20 bar
Area of use
Gas och vätskor kompatibla med ingående material, Tryckluft, Vacuum
Material
Mässing, Rostfritt stål
Pressure max.
20
REACH compliant
Ja
RoHs compliant
Ja
Sealing material
NBR, POM (Acetal)
Standard
Silicone Free
Surface treatment
Förnicklad
Temperature max.
+80
Temperature min.
-20
Vacuum max.
-0.9
