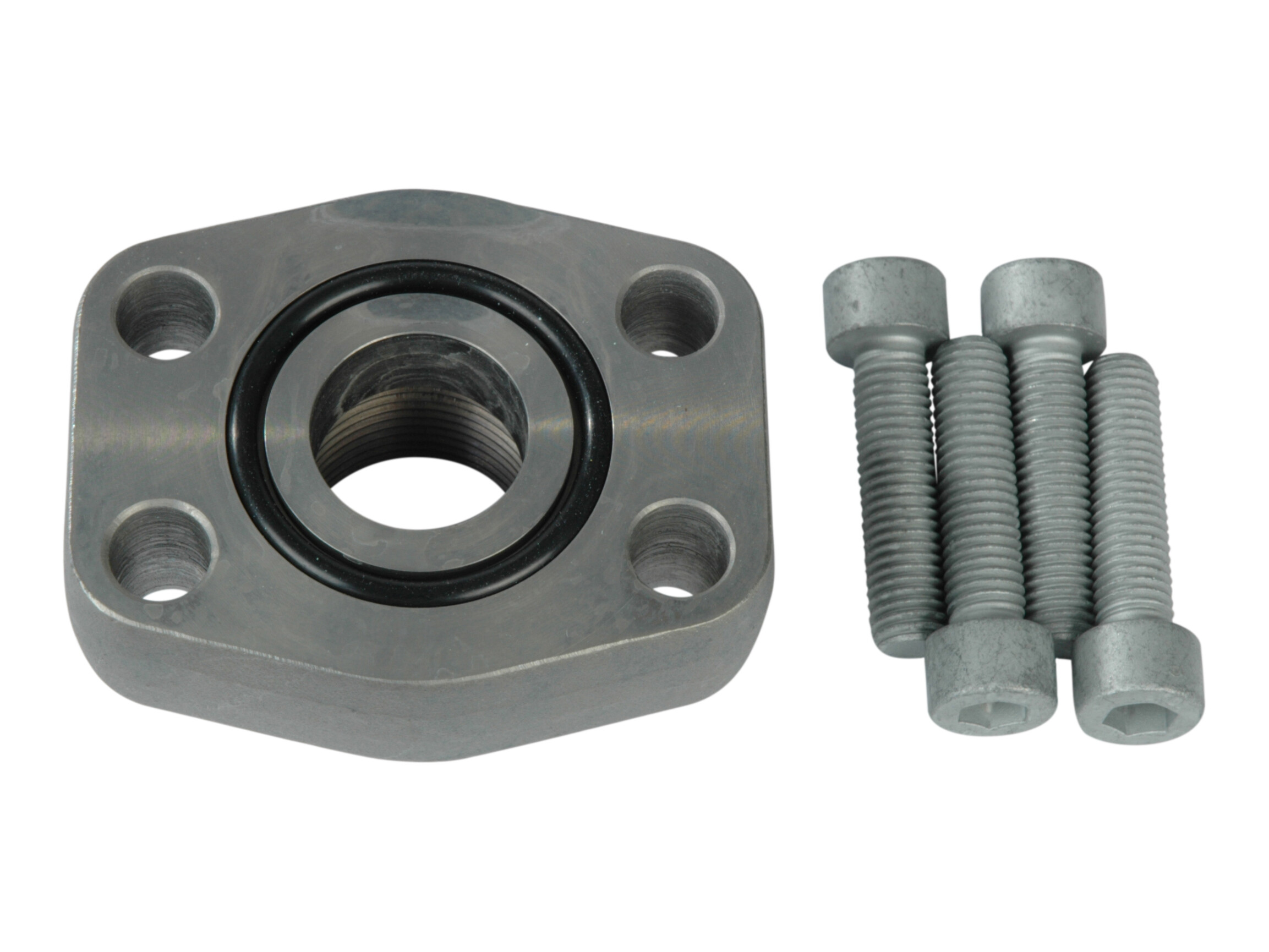

Threaded flange 1.1/4" SAE3000 x 1" BSP - complete
Threaded flange 1.1/4" SAE3000 x 1" BSP - complete
Varenummer:
8310-20-16-KM
Pakke str.:
1 set
Min. bestillingsenhed er:
1 set
Angle
0 °
Bolt dimension
M10x40 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
50.8 mm
Dimension C
58.7 mm
Dimension E
30.2 mm
Flange
1.1/4 "
Flange SAE/DIN
3000 PSI
Material
Steel
Number of bolts
4
O-ring
37.69X3.53 mm
Pressure max.
280 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 1 BSP
Package size
1 set
Barcode
416769
Gross weight
0,80 Kg
Net weight
0,80 Kg
Country of origin
DEU
Intrastat code
73079100
Threaded flange 1.1/4" SAE3000 x 1" BSP - complete
