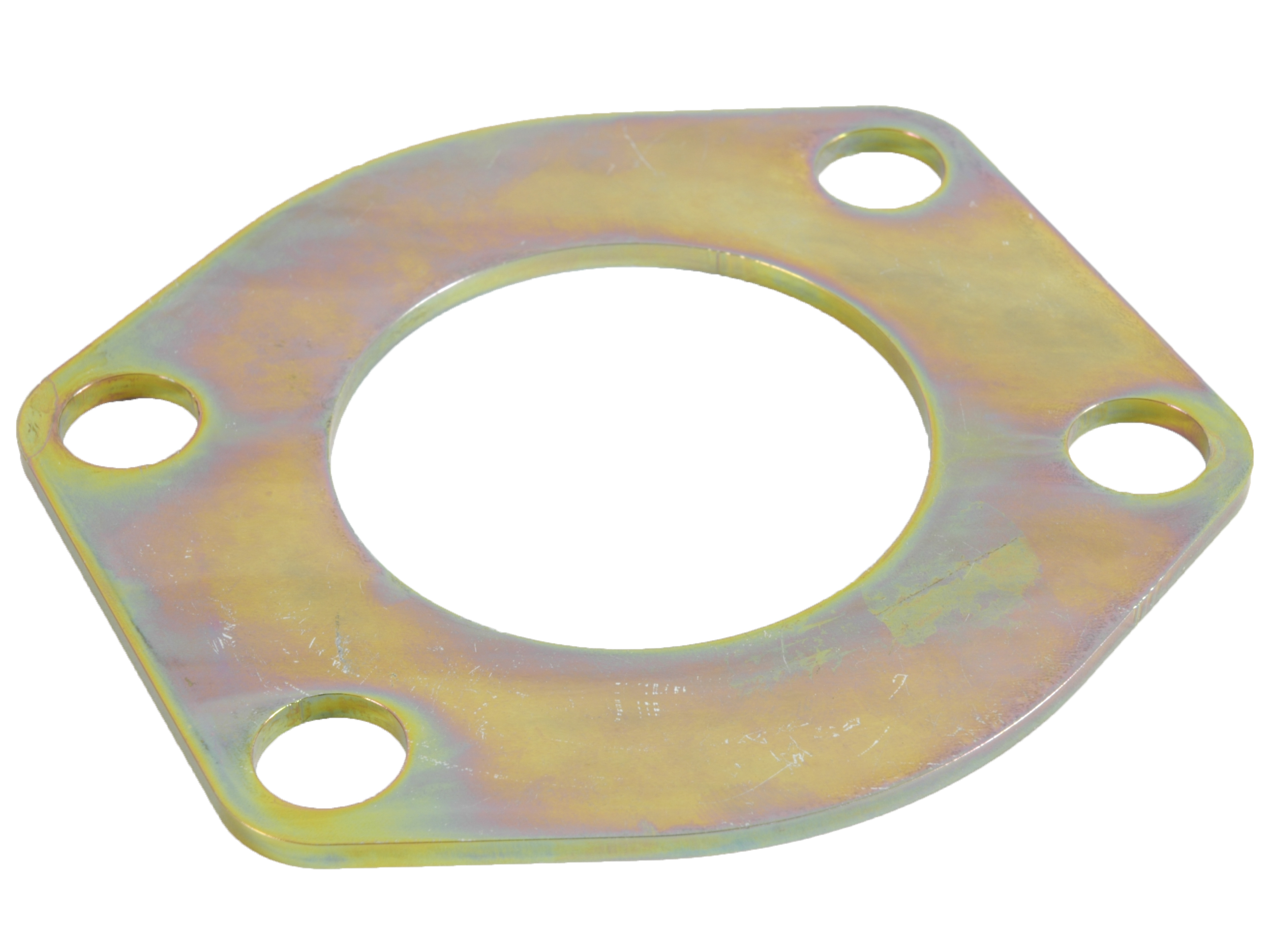

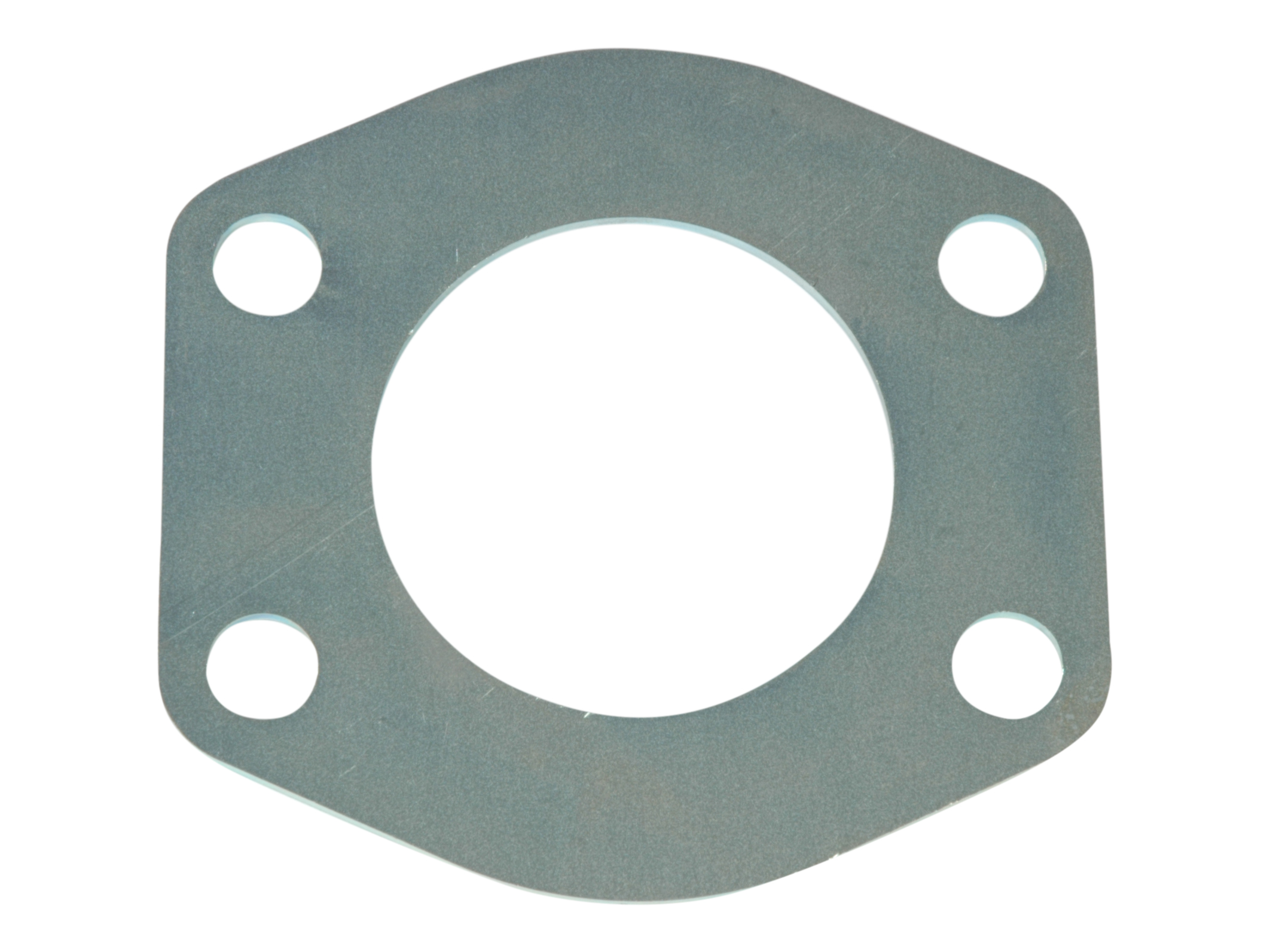

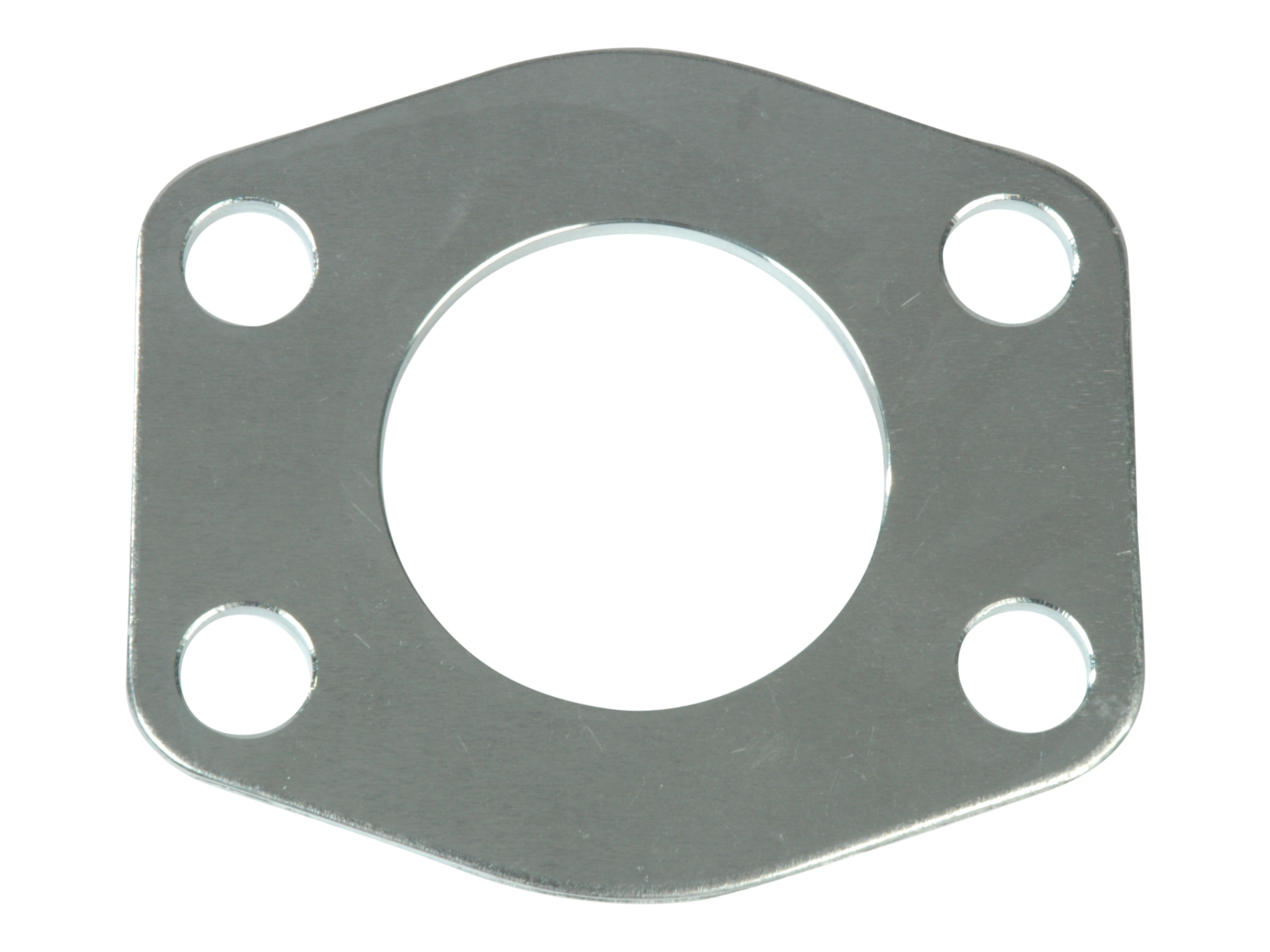

Distance plate SAE 3000 PSI - ZP1 / SPL3

VÄLJ VARIANT

Artikelnummer	Beskrivning	Flange	O-ring
ZP080	Adapter sheet 1/2" SAE3000	1/2 "	18.64X3.53 mm
ZP100	Adapter sheet 3/4" SAE3000	3/4 "	24.99X3.53 mm
ZP102	Adapter sheet 1" SAE3000	1 "	32.93X3.53 mm
ZP104	Adapter sheet 1.1/4" SAE3000	1.1/4 "	37.69X3.53 mm
ZP106	Adapter sheet 1.1/2" SAE3000	1.1/2 "	47.22X3.53 mm
ZP108	Adapter sheet 2" SAE3000	2 "	56.75X3.53 mm
ZP110	Adapter sheet 2.1/2" SAE3000	2.1/2 "	69.44X3.53 mm
ZP112	Adapter sheet 3" SAE3000	3 "	85.32X3.53 mm
ZP114	Adapter sheet 3.1/2" SAE3000	3.1/2 "	98.02X3.53 mm
ZP116	Adapter sheet 4" SAE3000	4 "	110.72X3.53 mm

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Flange SAE/DIN

3000 PSI

Material

Steel

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Surface treatment

Zinc-Nickel plated

Temperature max.

+90

Temperature min.

-40
