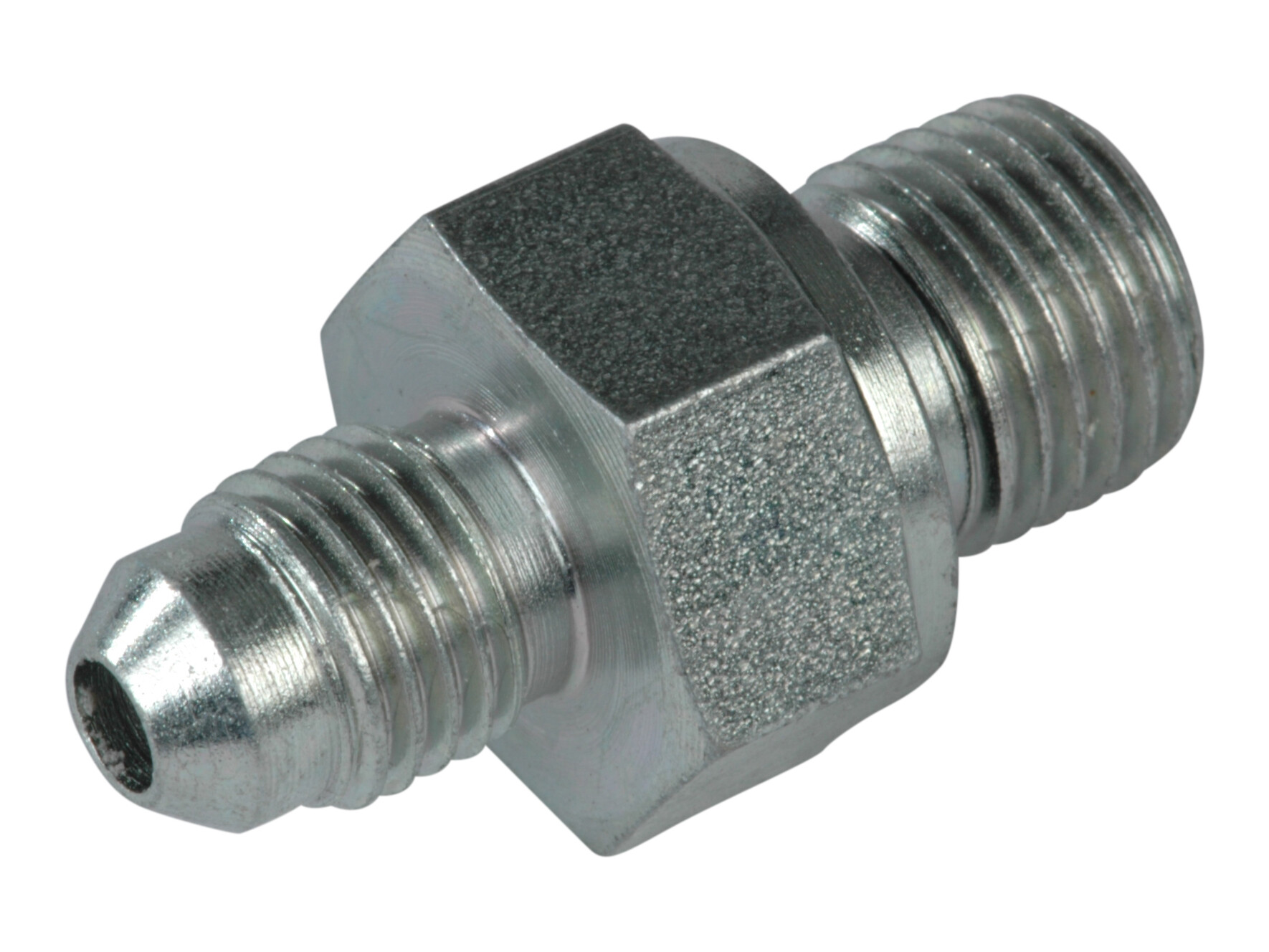

S240-06-10M adaptor MM

Partnumber:

M-06-10WD

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (2)

Bushing Ø6

Partnumber: B-06

Nut 7/16-20 JIC

Partnumber: J-06

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

6 mm

Dimension A

30 mm

Dimension B

14 mm

Dimension CH

14 mm

Dimension D

8 mm

Dimension F metric

M10x1

Dimension J

7/16-20 JIC

Dimension T

6 mm

Material

Steel

Pressure max.

450 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

7/16-20 JIC

Thread outer metric

M10x1

Package size

0 pcs

Barcode

5704295496634

Gross weight

Net weight

Country of origin

ITA

Intrastat code

73071110

Product information

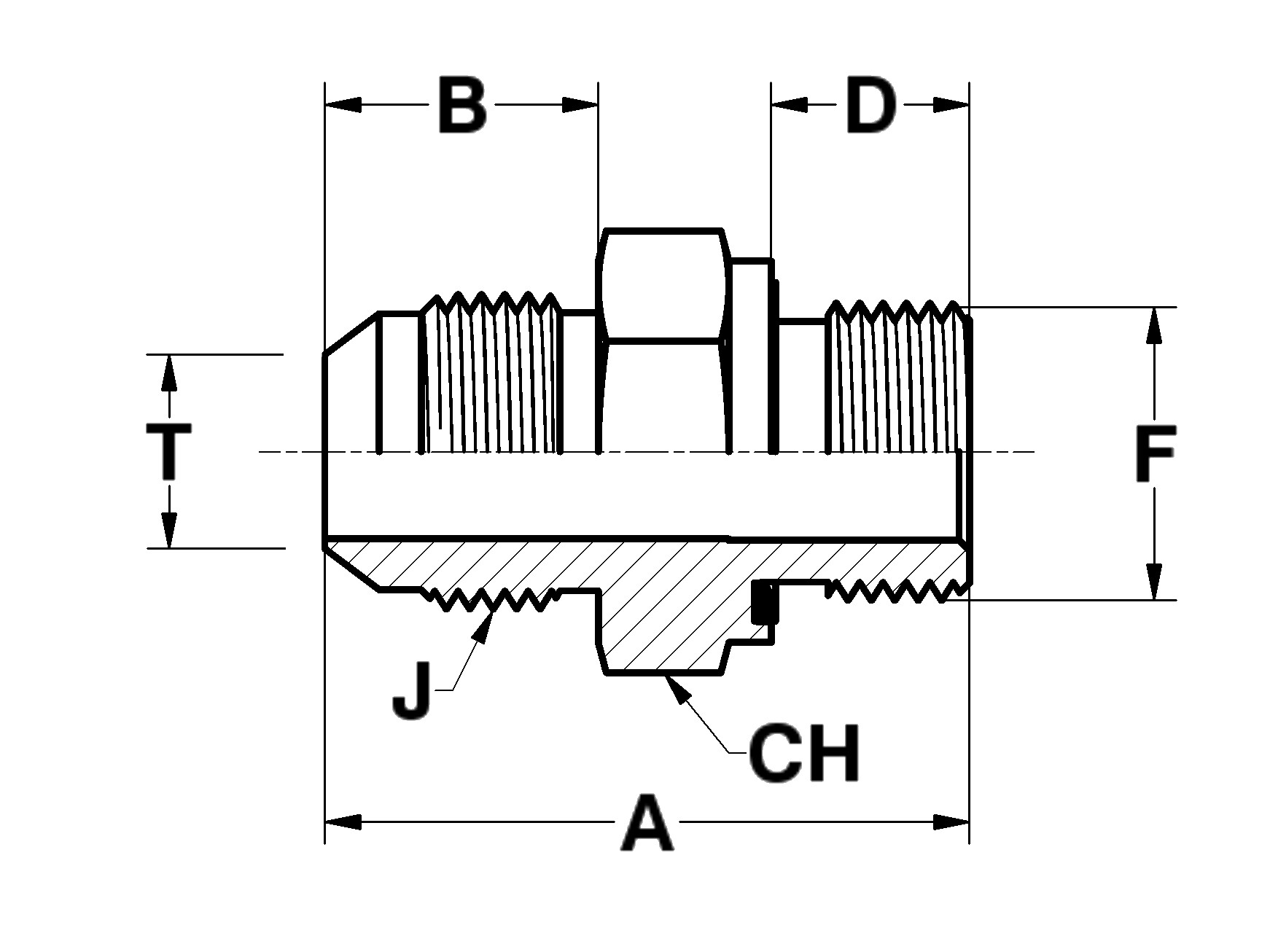

Measure sketch

S240-06-10M adaptor MM
