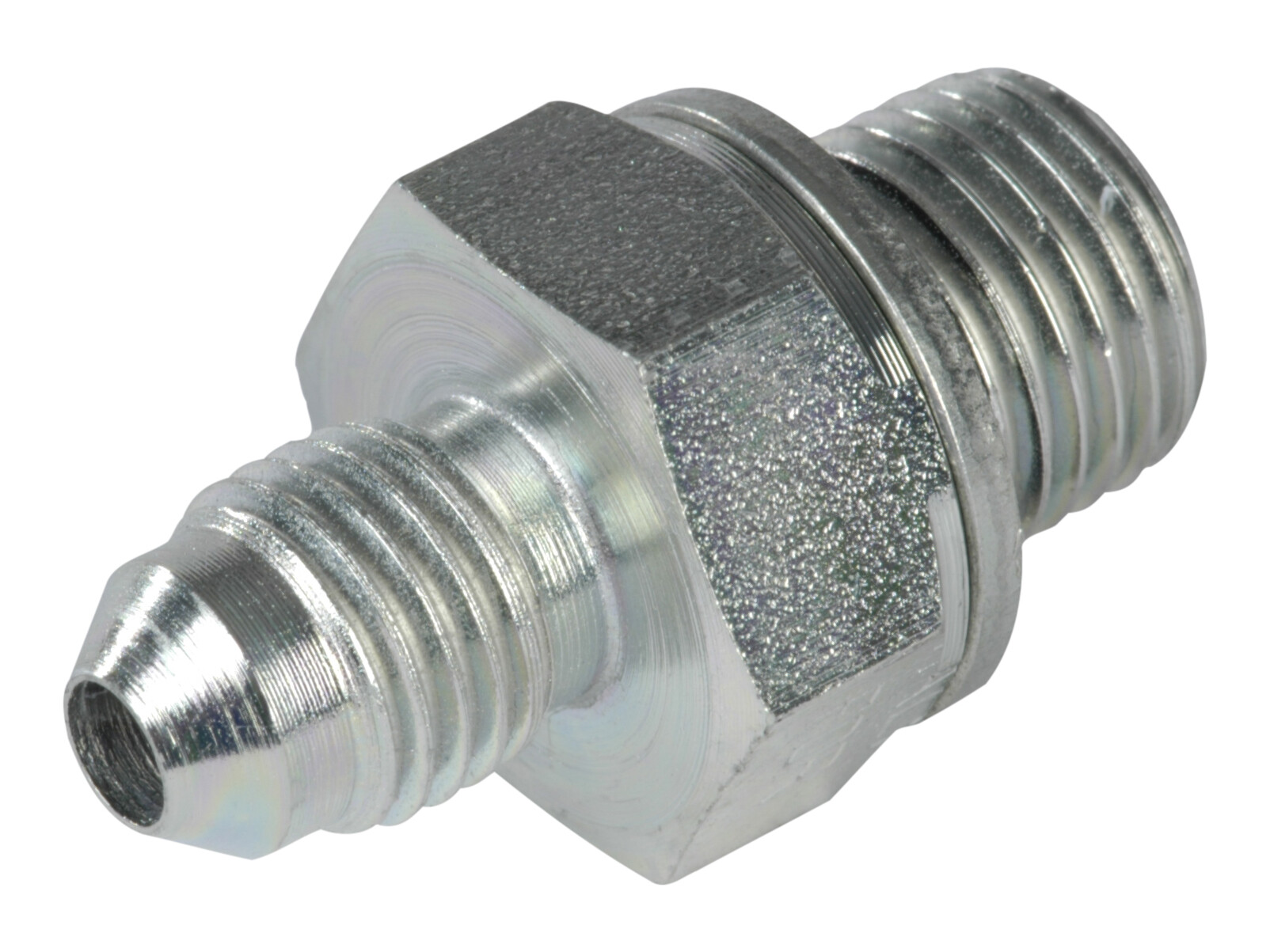

S230-06-13G adaptor BSP
S230-06-13G adaptor BSP
Partnumber:
M-06-1/4
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
6 mm
Dimension A
34.5 mm
Dimension B
14 mm
Dimension CH
19 mm
Dimension D
10 mm
Dimension F
G 1/4 BSP
Dimension J
7/16-20 JIC
Dimension T
6 mm
Material
Steel
Pressure max.
450 bar
Surface treatment
Electro-galvanized / White chromatized
Thread
G 1/4 BSP
Thread outer
7/16-20 JIC
Thread outer
G 1/4 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704334274520
Bruttovikt
0,03 Kg
Nettovikt
0,03 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
S230-06-13G adaptor BSP
Obs: För att öppna 3D-filer krävs ett program som stöder filformatet
