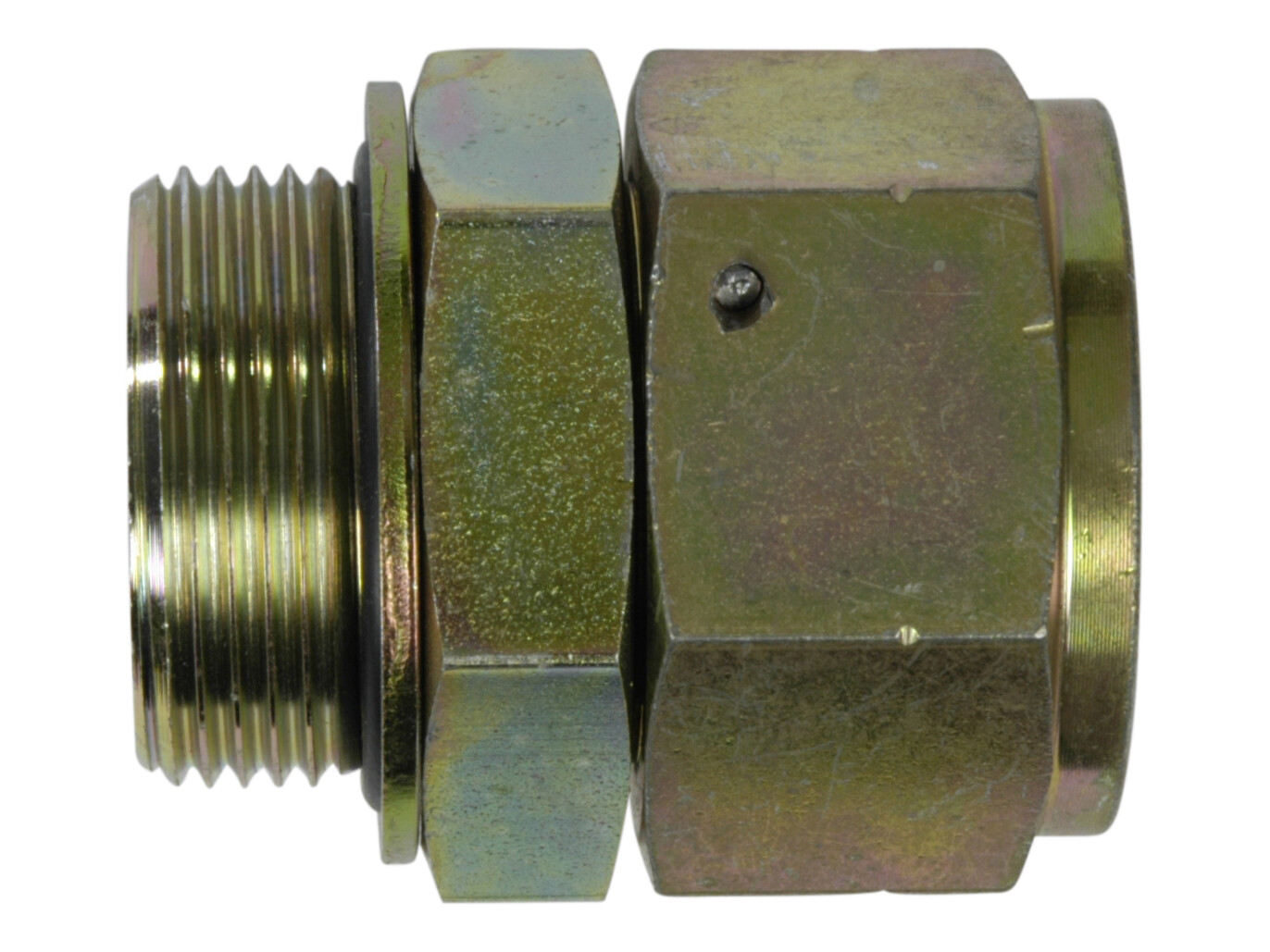

S180-30-42G adaptor with nut
S180-30-42G adaptor with nut
Partnumber:
FG-32-1.1/4
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
32 mm
Dimension A
67.5 mm
Dimension B
32.5 mm
Dimension CH
50 mm
Dimension CH1
50 mm
Dimension D
17.5 mm
Dimension F
G 1.1/4 BSP
Dimension J
1.5/8-12 JIC
Dimension T
32 mm
Material
Steel
Pressure max.
240 bar
Surface treatment
Electro-galvanized / White chromatized
Thread inner
1.5/8-12 JIC
Thread outer
G 1.1/4 BSP
Pakke str.
0 pcs
Stregkode
5704334274452
Brutto vægt
0,54 Kg
Netto vægt
0,54 Kg
Oprindelsesland
ITA
Intrastat varekode
73071110
S180-30-42G adaptor with nut
