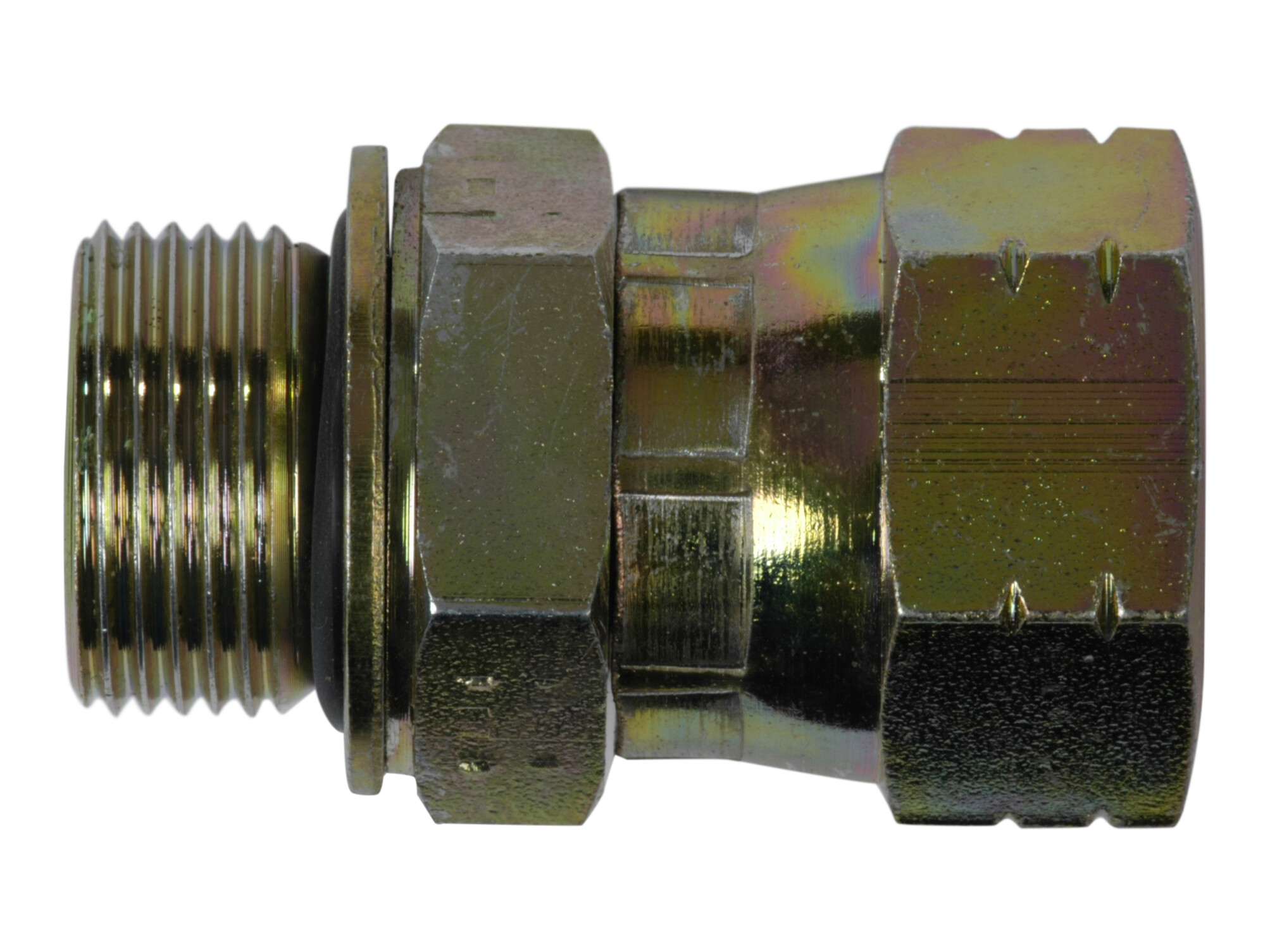

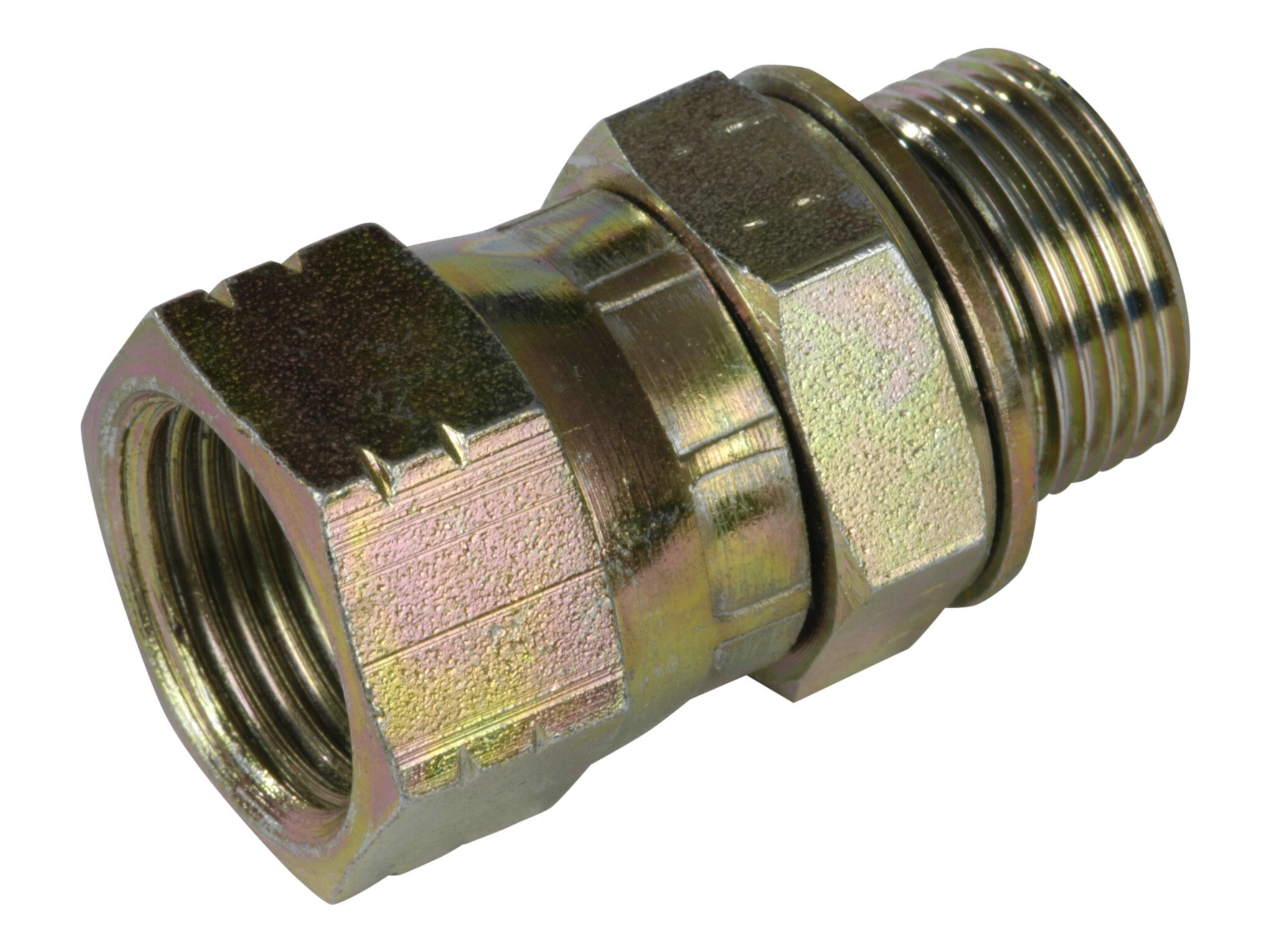

S190-16-22M adaptor with nut

Partnumber:

FG-16-22

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Dimension A

52 mm

Dimension B

26 mm

Dimension CH

27 mm

Dimension CH1

27 mm

Dimension D

13.5 mm

Dimension F metric

M22x1,5

Dimension J

7/8-14 JIC

Dimension T

16 mm

Material

Steel

Pressure max.

350 bar

Surface treatment

Electro-galvanized / White chromatized

Thread inner

7/8-14 JIC

Thread outer metric

M22x1,5

Package size

0 pcs

Barcode

5704334274339

Gross weight

0,12 Kg

Net weight

0,12 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S190-16-22M adaptor with nut

Note: Opening 3D files requires a program that supports the file format
