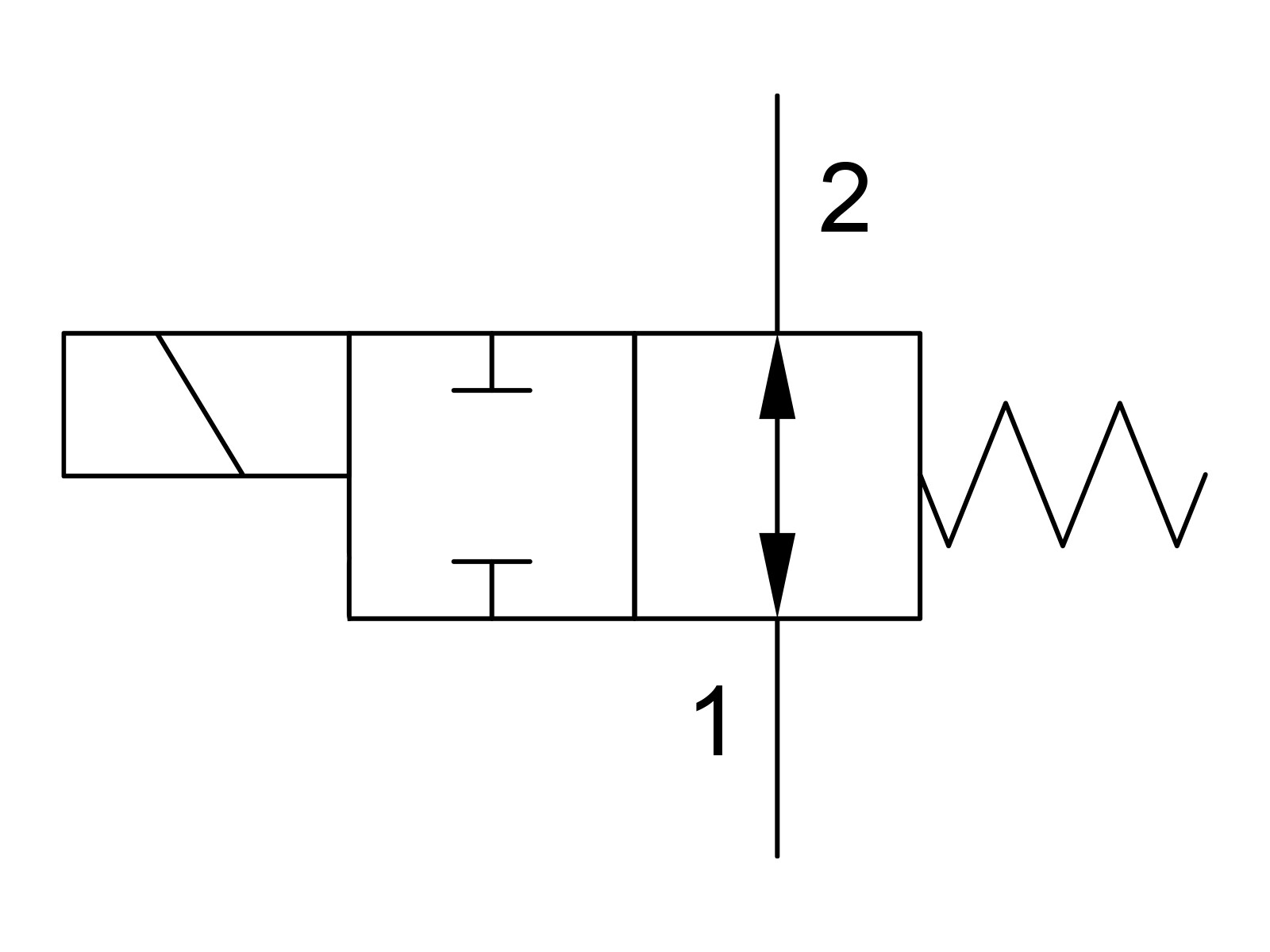

SUN 2/2 solenoid-operated valve. 45 Lpm. Normaly open. T-13A
This solenoid-operated 2-way, 2-position cartridge is a direct-acting, balanced spool directional valve. The valve is available in either a normally open or normally closed configuration and is designed to be used with 740 and 747 Series coils.
Partnumber:
DLDF-XHN
Package size:
0 pcs
Min. order quantity is:
1 pcs
Activation
Solenoid
Brand Name
Sun Hydraulics
Cavity
T-13A
Contamination level max.
15/13/11 - ISO 4406
Filter built-in
No
Flow rate nominal LMin
45 lpm
Manual operated
No
Number of ways/positions
2/2
Oil viscocity recommended
2,8 - 380 cSt
Pressure max.
350 bar
Sealing material
NBR
Temperature max.
+110 °C
Temperature min.
-30 °C
Torque tightening
41 - 47 Nm
Valve type
NO - Normally open
Förpackningsstorlek
0 pcs
Streckkod
5704334789260
Bruttovikt
0,27 Kg
Nettovikt
0,27 Kg
Ursprungsland
Intrastat artikelkod
84812010
This solenoid-operated 2-way, 2-position cartridge is a direct-acting, balanced spool directional valve. The valve is available in either a normally open or normally closed configuration and is designed to be used with 740 and 747 Series coils.
