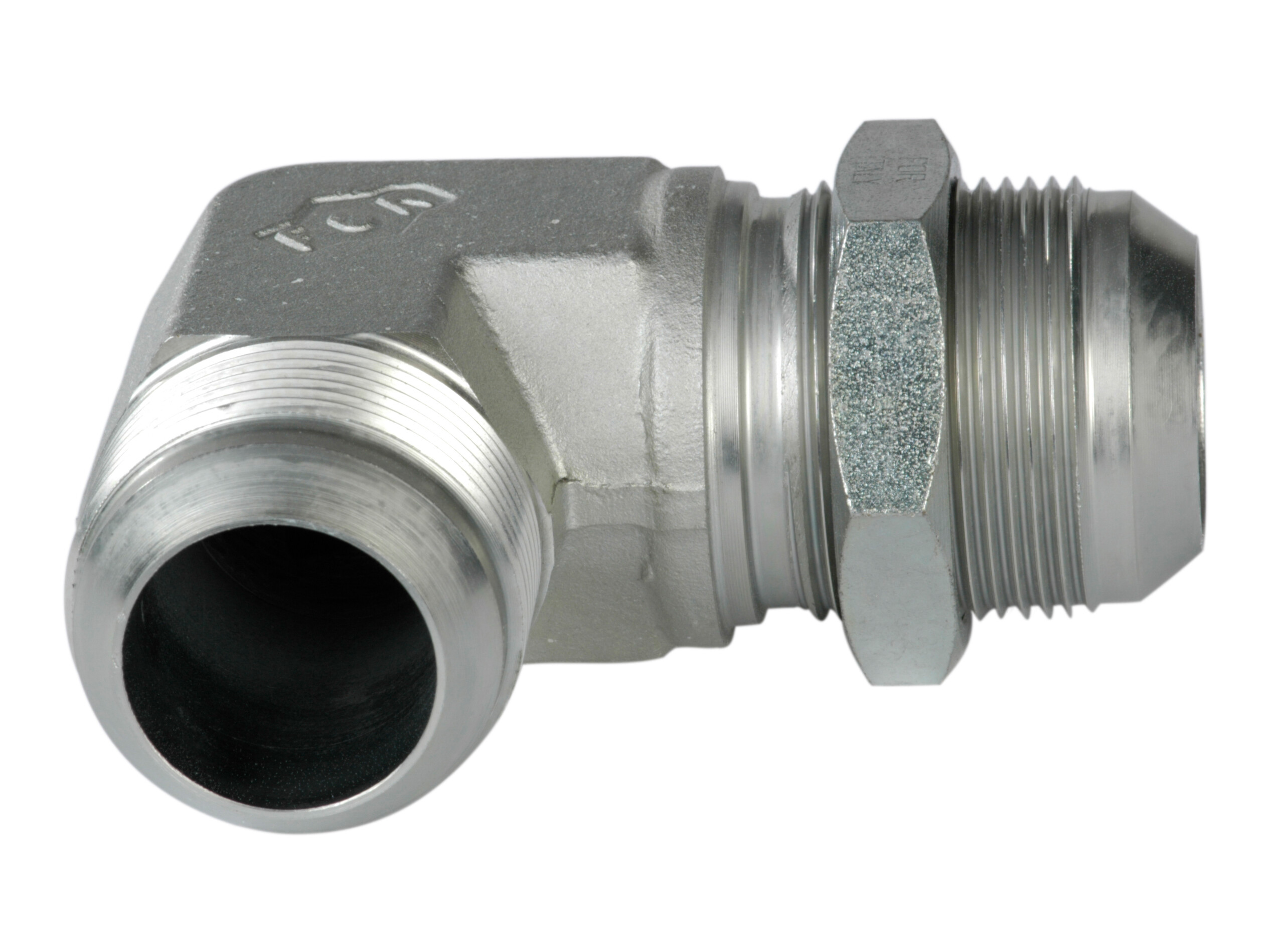

S650-30U bulkhead elbow
-
JIC 37° external thread 90° feed-through connector
- Connector includes locking nut
Partnumber:
CUP-32
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
90 °
B
55 mm
Brand Name
FOR
C
79 mm
CH
50 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
44 mm
Diameter pipe
30 mm
J
1.5/8-12 JIC
J1
1.5/8-12 JIC
Material
Steel
Pressure max.
250 bar
Surface treatment
Electro zinc plated
T
30 mm
T1
30 mm
Thread outer
1.5/8-12 JIC
Package size
0 pcs
Barcode
5704295979502
Gross weight
0,80 Kg
Net weight
0,80 Kg
Country of origin
ITA
Intrastat code
73071110
-
JIC 37° external thread 90° feed-through connector
- Connector includes locking nut
Note: Opening 3D files requires a program that supports the file format
