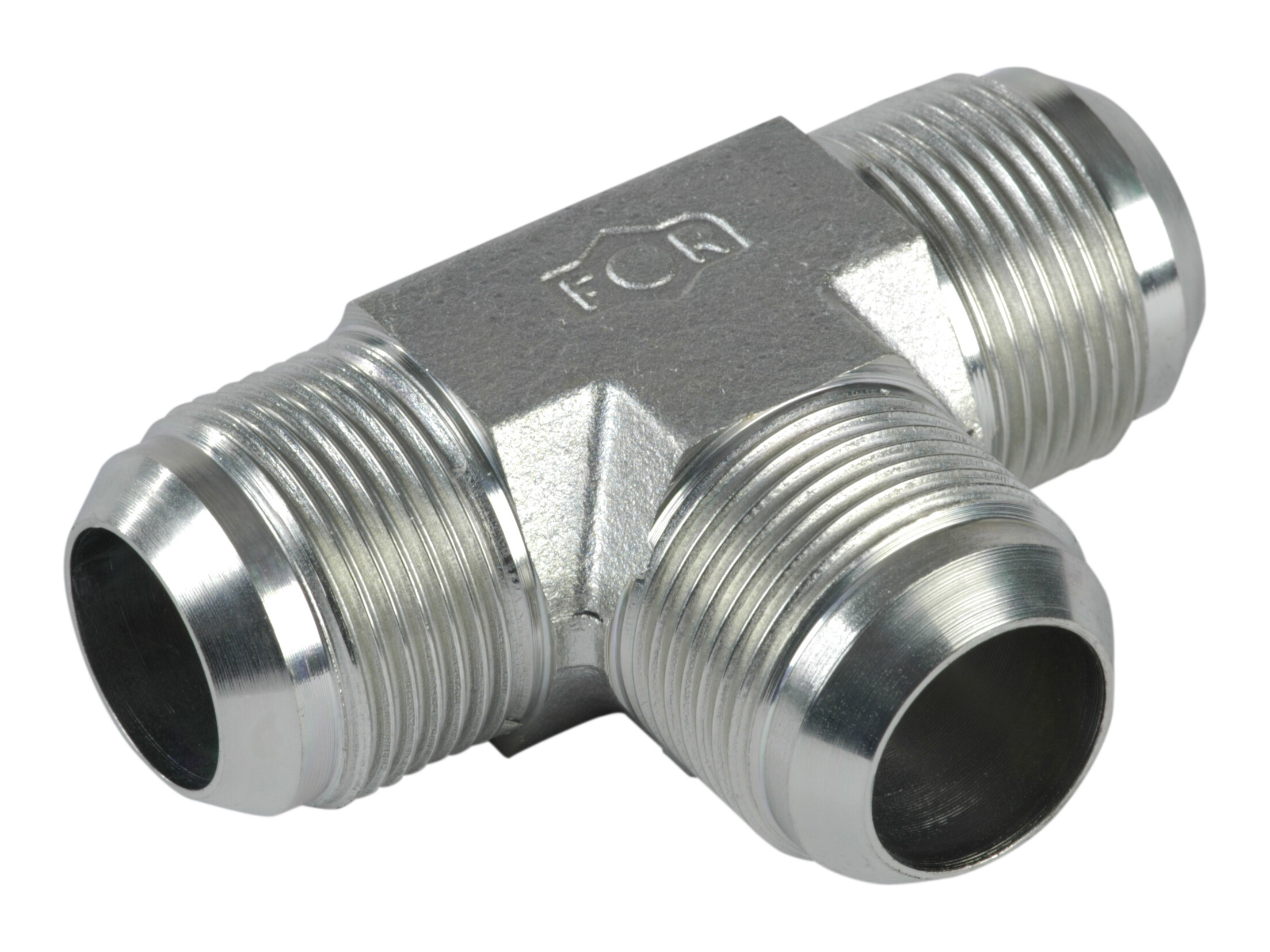

S505-25IT Tee

Partnumber:

TU-25

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (2)

Bushing

Partnumber: B-25

Nut 1.5/16-12 JIC

Partnumber: J-25

Specifications
Dimensions and shipping

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

25 mm

Dimension B

46 mm

Dimension J

1.5/16-12 JIC

Dimension T

25 mm

Material

Steel

Pressure max.

290 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

1.5/16-12 JIC

Package size

0 pcs

Barcode

5704334126027

Gross weight

0,43 Kg

Net weight

0,43 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S505-25IT Tee

Note: Opening 3D files requires a program that supports the file format
