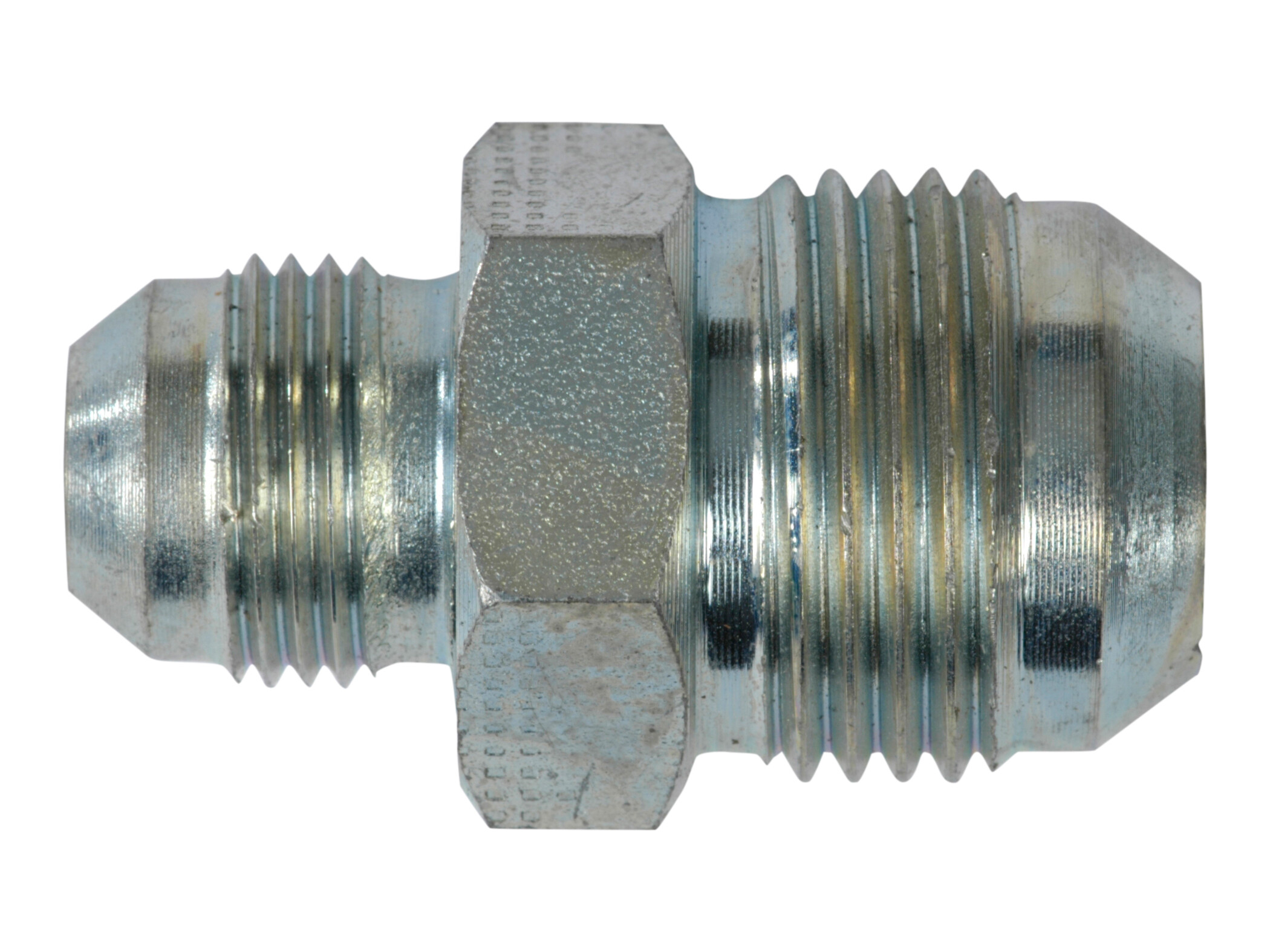

Straight fitting, reduction
Straight fitting, reduction
Partnumber:
MU-20-12
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe 1
20 mm
Diameter pipe 2
12 mm
Dimension A
50 mm
Dimension B
22 mm
Dimension B1
17 mm
Dimension CH
30 mm
Dimension J
1.1/16-12 JIC
Dimension J1
3/4-16 JIC
Dimension T
20 mm
Dimension T1
12 mm
Material
Steel
Pressure max.
300 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
1.1/16-12, 3/4-16 JIC
Package size
0 pcs
Barcode
5704334214311
Gross weight
0,12 Kg
Net weight
0,12 Kg
Country of origin
ITA
Intrastat code
73071110
Straight fitting, reduction
Note: Opening 3D files requires a program that supports the file format
