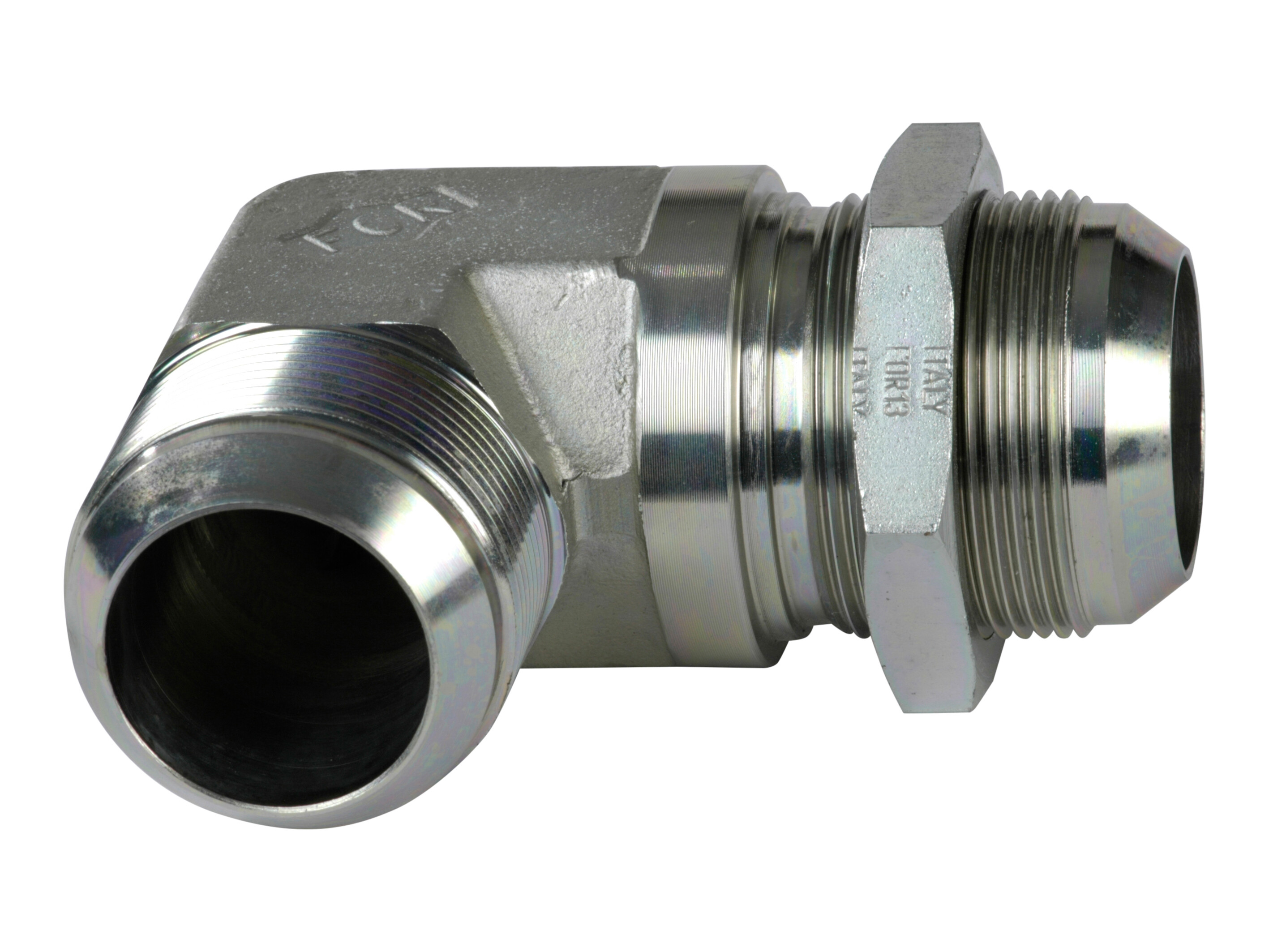

S650-38U bulkhead elbow

\ufeff

JIC 37° external thread 90° feed-through connector
- Connector includes locking nut

Partnumber:

CUP-38

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

90 °

59 mm

Brand Name

FOR

87 mm

55 mm

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

44 mm

Diameter pipe

38 mm

Dimension J1

1.7/8-12 JIC

Material

Steel

Pressure max.

250 bar

Surface treatment

Electro-galvanized / White chromatized

38 mm

Thread outer

1.7/8-12 JIC

Package size

0 pcs

Barcode

5704295772714

Gross weight

1,18 Kg

Net weight

1,18 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

\ufeff

JIC 37° external thread 90° feed-through connector
- Connector includes locking nut

Note: Opening 3D files requires a program that supports the file format
