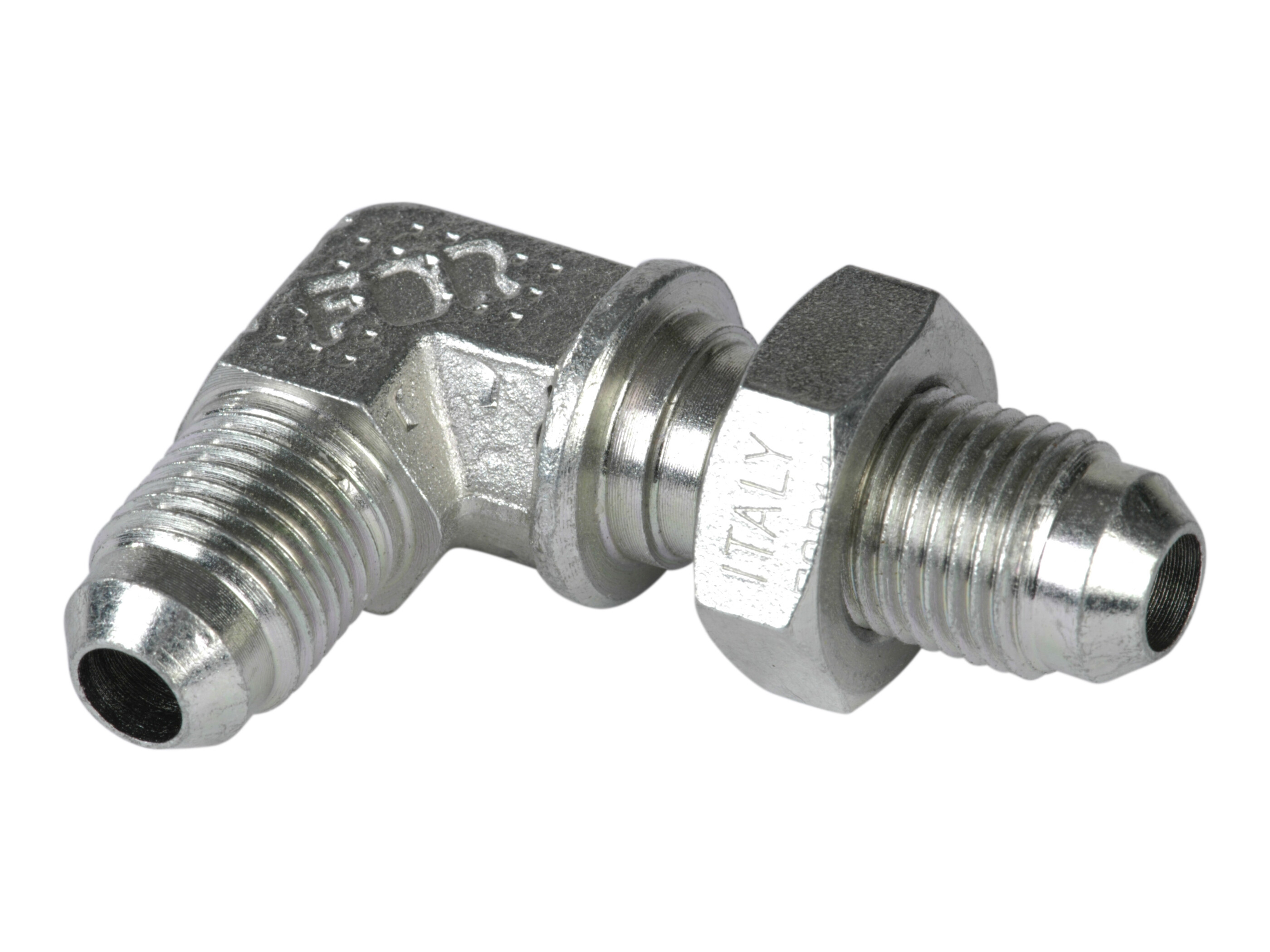

S650-08U bulkhead elbow

\ufeff

JIC 37° external thread 90° feed-through connector
- Connector includes locking nut

Partnumber:

CUP-08

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (2)
Spare parts (1)

Bushing Ø8

Partnumber: B-08

Mutter, UNF-1/2''-20

Partnumber: J-08

Motmutter, UNF 1/2''

Partnumber: 31FS05

Specifications
Dimensions and shipping

Angle

90 °

26 mm

Brand Name

FOR

41 mm

19 mm

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

28,5 mm

Diameter pipe

8 mm

Dimension J1

1/2-20 JIC

Model code

A108007/08

Pressure max.

416 bar

Surface treatment

Electro-galvanized / White chromatized

8 mm

Thread outer

1/2-20 JIC

Package size

0 pcs

Barcode

5704334103721

Gross weight

0,07 Kg

Net weight

0,07 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

\ufeff

JIC 37° external thread 90° feed-through connector
- Connector includes locking nut

Note: Opening 3D files requires a program that supports the file format
