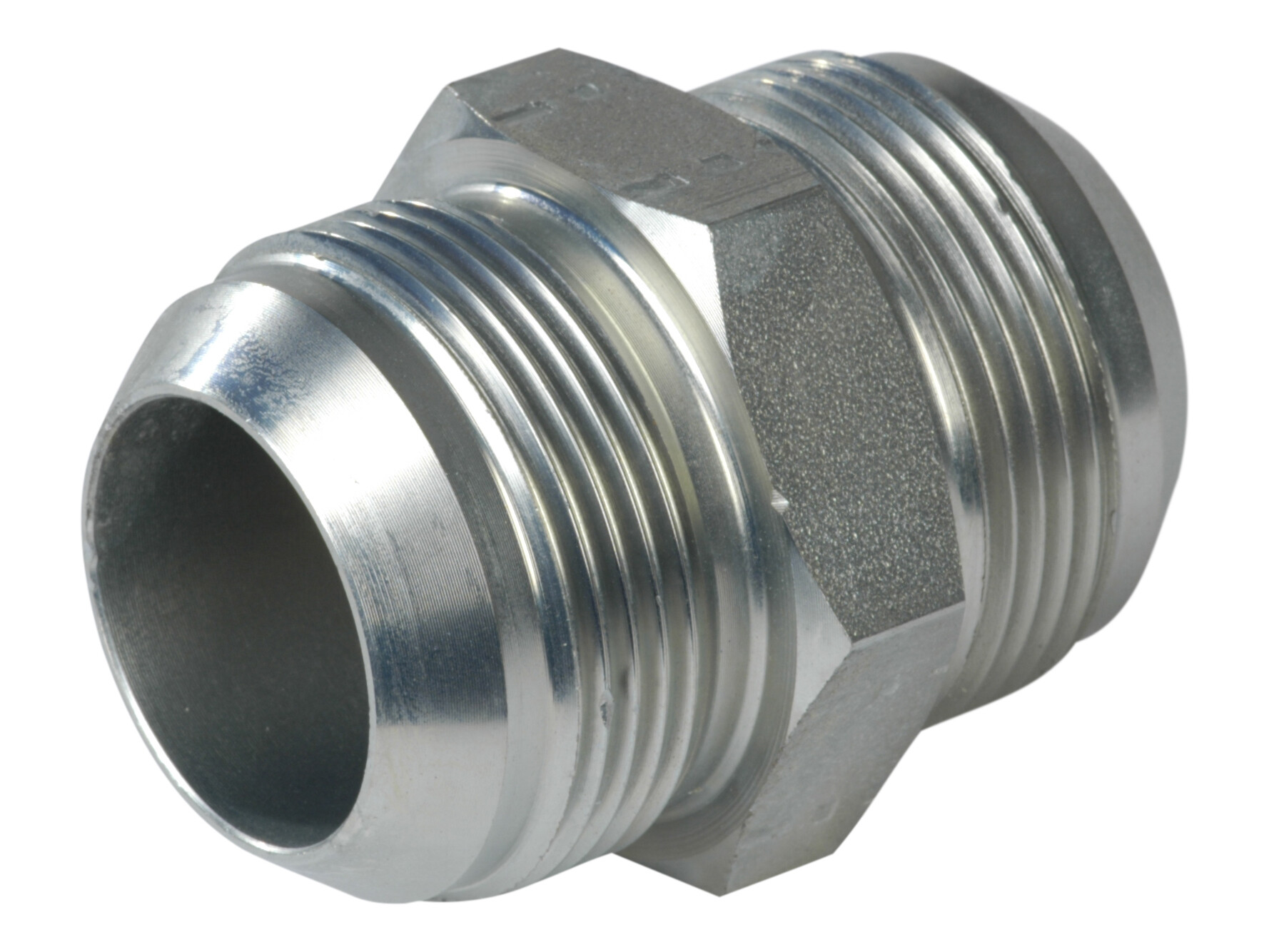

Straight fitting

Artikelnummer:

MU-32

Förpackningsstorlek:

0 pcs

Minsta beställningskvantitet:

1 pcs

Accessories (2)

Bushing

Varenummer: B-32

Nut 1.5/8-12 JIC

Varenummer: J-30/32

Specifikationer
Dimensioner og forsendelse

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe 1

32 mm

Diameter pipe 2

32 mm

Dimension A

61.5 mm

Dimension B

24.5 mm

Dimension B1

24.5 mm

Dimension CH

42 mm

Dimension J

1.5/8-12 JIC

Dimension J1

1.5/8-12 JIC

Dimension T

32 mm

Dimension T1

32 mm

Material

Steel

Model code

A102001/32

Pressure max.

240 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

1.5/8-12 JIC

Pakke str.

0 pcs

Stregkode

5704334146407

Brutto vægt

0,30 Kg

Netto vægt

0,30 Kg

Oprindelsesland

ITA

Intrastat varekode

73071110

Produkt information
Målskitse

Straight fitting

Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
