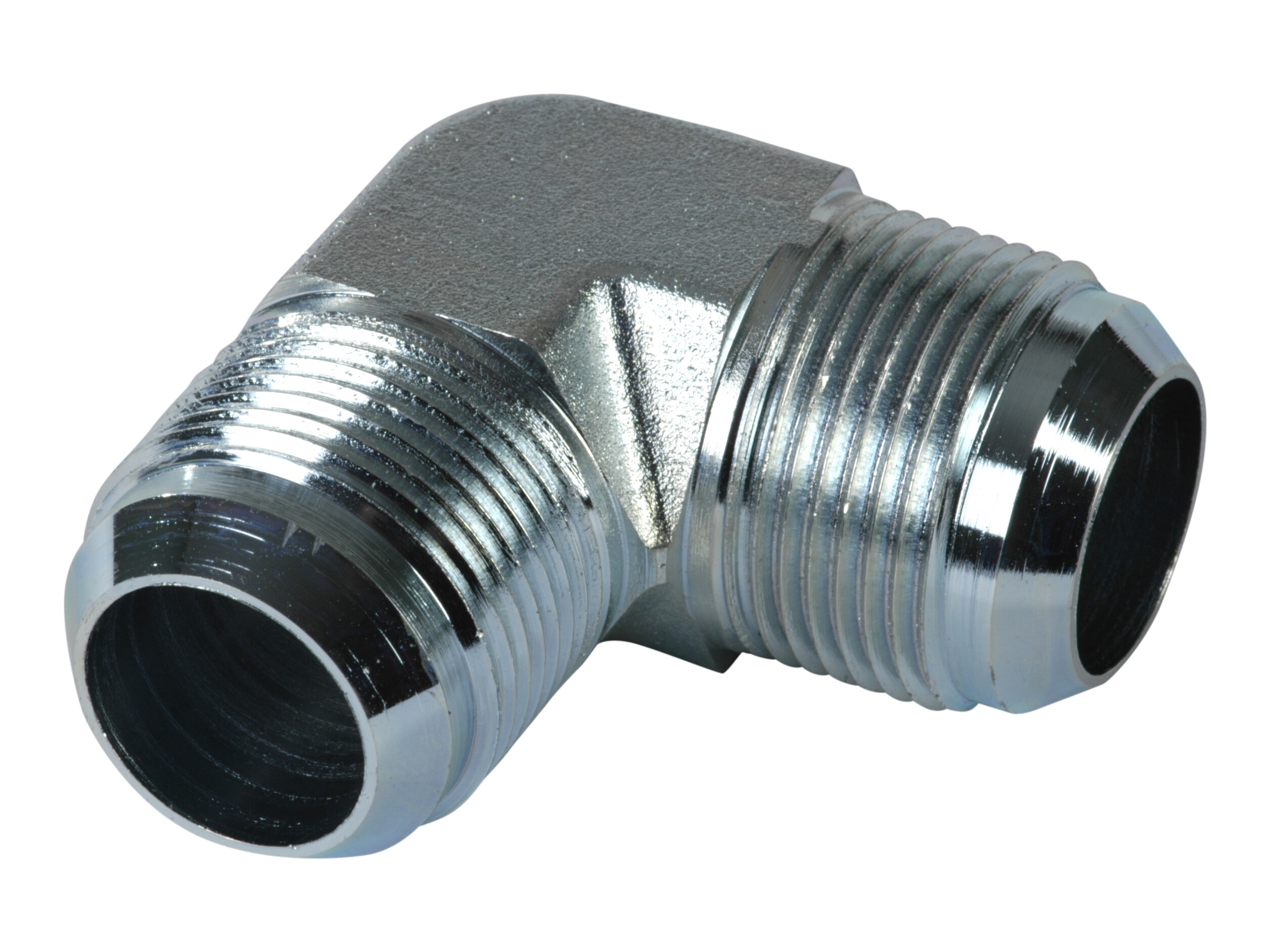

S500-25IL elbow, 90 °
S500-25IL elbow, 90 °
Artikelnummer:
CU-25
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Angle
90 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
25 mm
Dimension B
46 mm
Dimension B1
46 mm
Dimension J
1.5/16-12 JIC
Dimension J1
1.5/16-12 JIC
Dimension T
25 mm
Dimension T1
25 mm
Material
Steel
Pressure max.
290 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
1.5/16-12 JIC
Package size
0 pcs
Barcode
5704334232490
Gross weight
0,32 Kg
Net weight
0,32 Kg
Country of origin
ITA
Intrastat code
73071110
S500-25IL elbow, 90 °
Note: Opening 3D files requires a program that supports the file format
