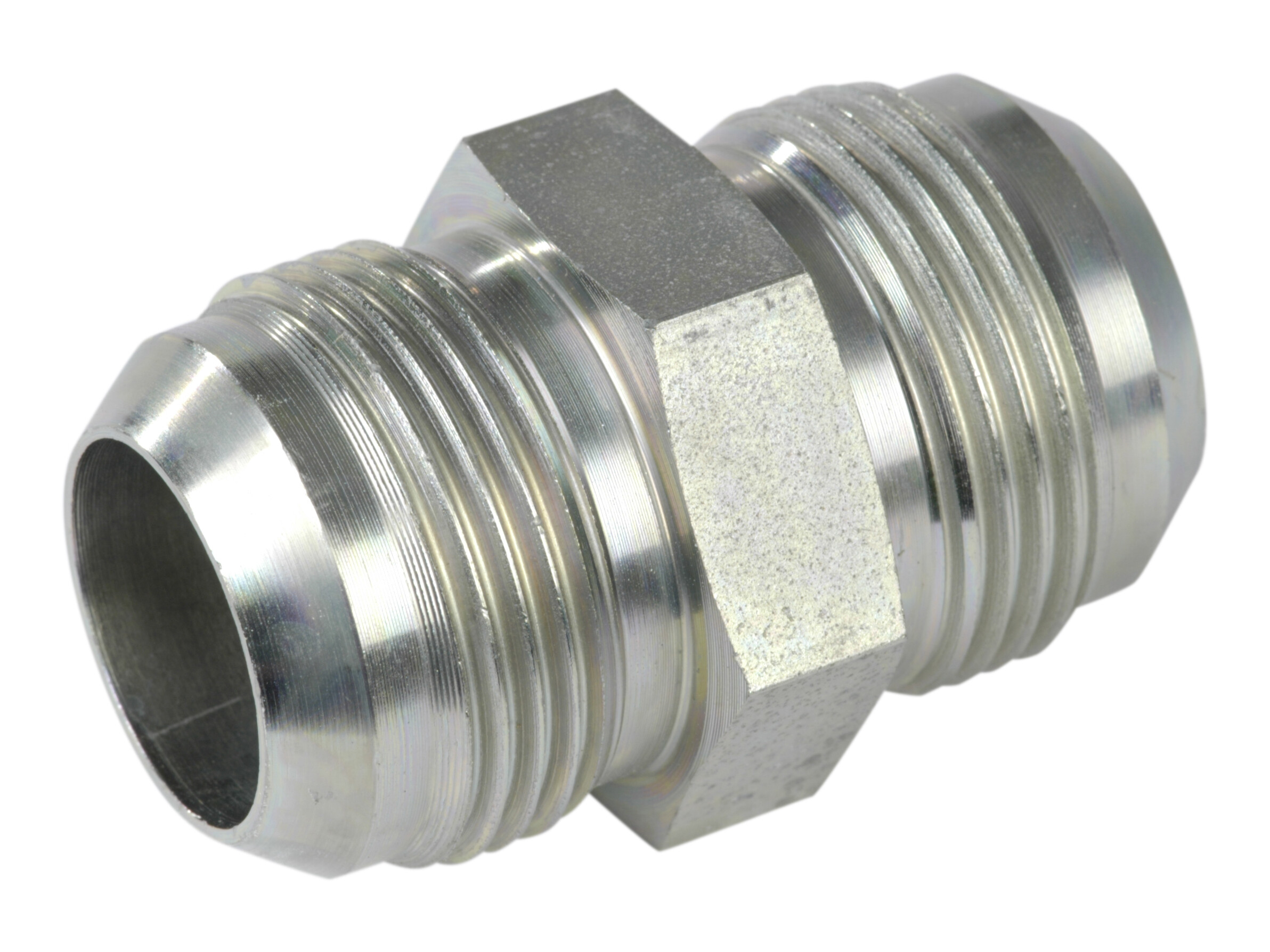

Straight fitting
Straight fitting
Partnumber:
MU-25
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe 1
25 mm
Diameter pipe 2
25 mm
Dimension A
57 mm
Dimension B
23 mm
Dimension B1
23 mm
Dimension CH
35 mm
Dimension J
1.5/16-12 JIC
Dimension J1
1.5/16-12 JIC
Dimension T
25 mm
Dimension T1
25 mm
Material
Steel
Model code
A102001/25
Pressure max.
290 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
1.5/16-12 JIC
Package size
0 pcs
Barcode
5704334146391
Gross weight
0,19 Kg
Net weight
0,19 Kg
Country of origin
ITA
Intrastat code
73071110
Straight fitting
Note: Opening 3D files requires a program that supports the file format
