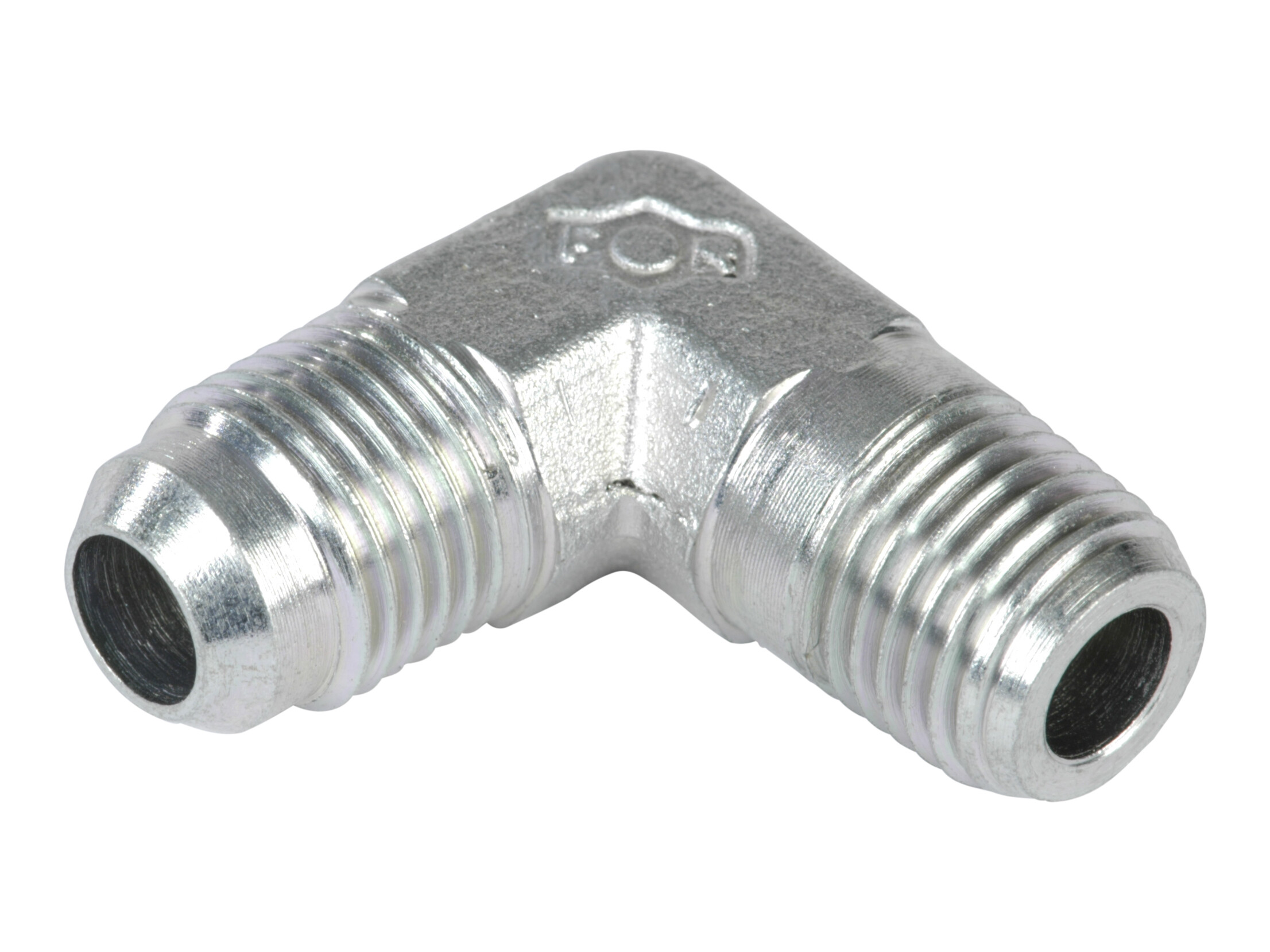

S525-10-13N elbow NPT 06BK0406

Varenummer:

C1-10-1/4

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (1)

Bushing Ø10

Partnumber: B-10

Specifications
Dimensions and shipping

Angle

90 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

10 mm

Dimension B

27 mm

Dimension C

27.5 mm

Dimension F

1/4 NPT

Dimension J

9/16-18 JIC

Dimension T

10 mm

Material

Steel

Pressure max.

350 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

1/4 NPT

Thread outer

9/16-18 JIC

Package size

0 pcs

Barcode

5704334274100

Gross weight

0,04 Kg

Net weight

0,04 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S525-10-13N elbow NPT 06BK0406

Note: Opening 3D files requires a program that supports the file format
