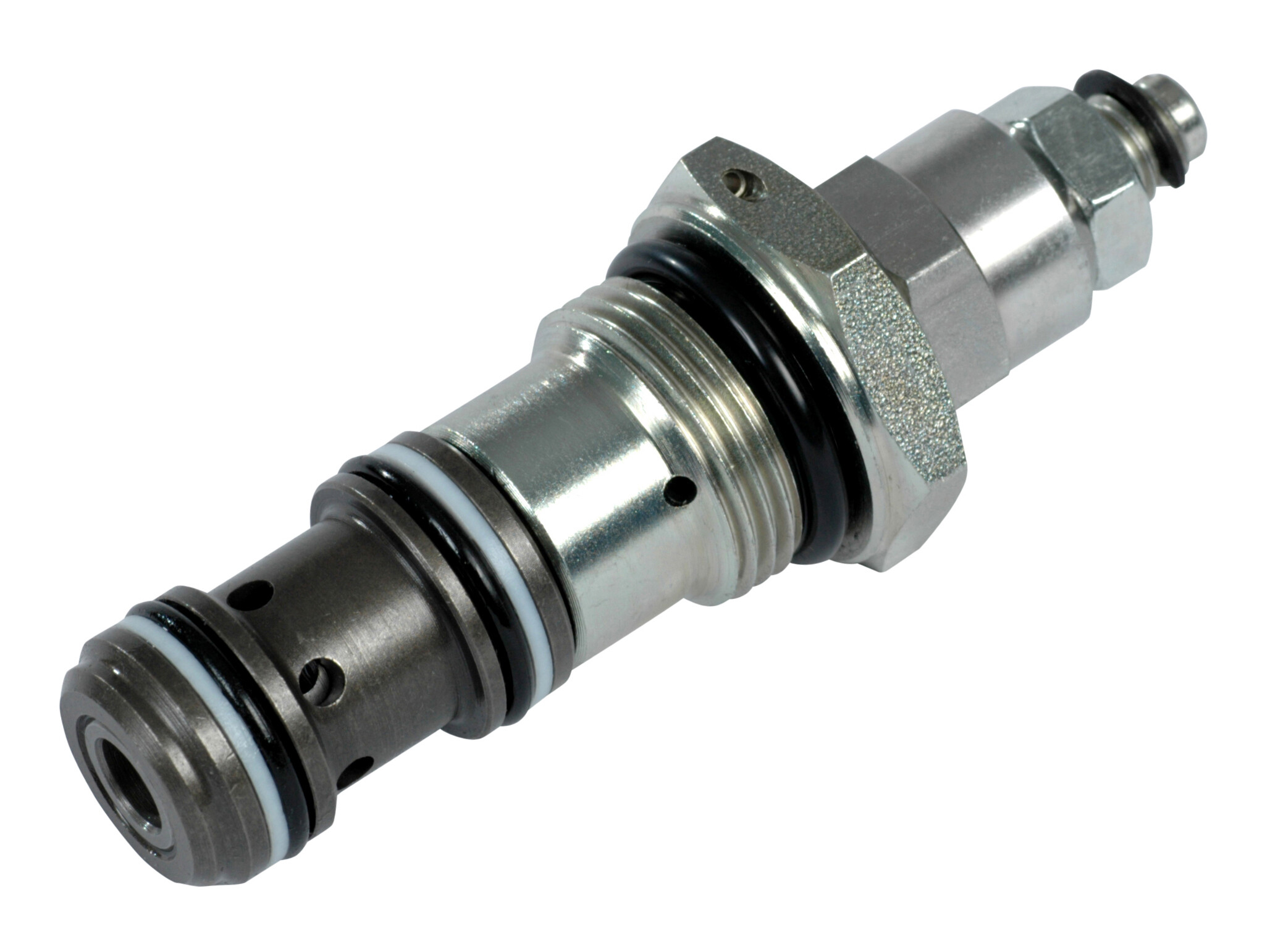

Press. Reducing valve 40l/m 10-70bar PPRC 06-EN-1-00-XXX
This is a normally open, pilot operated pressure reducing valve. Port 2 is open to port 1 until the setting is reached at which time the valve throttles the outlet flow limiting the pressure. Port 3 is a drain port only, as the valve does not contain a relief function. This valve is ideal for stable and precise control of a secondary pressure within a circuit.
Partnumber:
810120419
Package size:
0 pcs
Min. order quantity is:
1 pcs
Cavity
NCS06/3
Flow Nominel
40 lpm
Forureningsgrad maks.
20/18/14 - ISO 4406
Materiale
Steel
Model kode
PPRC06-EN-1-00-XXX
Mærke navn
Danfoss
Nøglevidde
27 mm
Olieviskositet anbefalet
12 - 54 cSt
Pakningsmateriale
NBR
Tilspændingsmoment
45 - 50 Nm
Tryk maks.
315 bar
Trykindstilling maks.
70 bar
Trykindstilling min.
10 bar
Förpackningsstorlek
0 pcs
Streckkod
5704334468646
Bruttovikt
0,14 Kg
Nettovikt
0,14 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
This is a normally open, pilot operated pressure reducing valve. Port 2 is open to port 1 until the setting is reached at which time the valve throttles the outlet flow limiting the pressure. Port 3 is a drain port only, as the valve does not contain a relief function. This valve is ideal for stable and precise control of a secondary pressure within a circuit.
