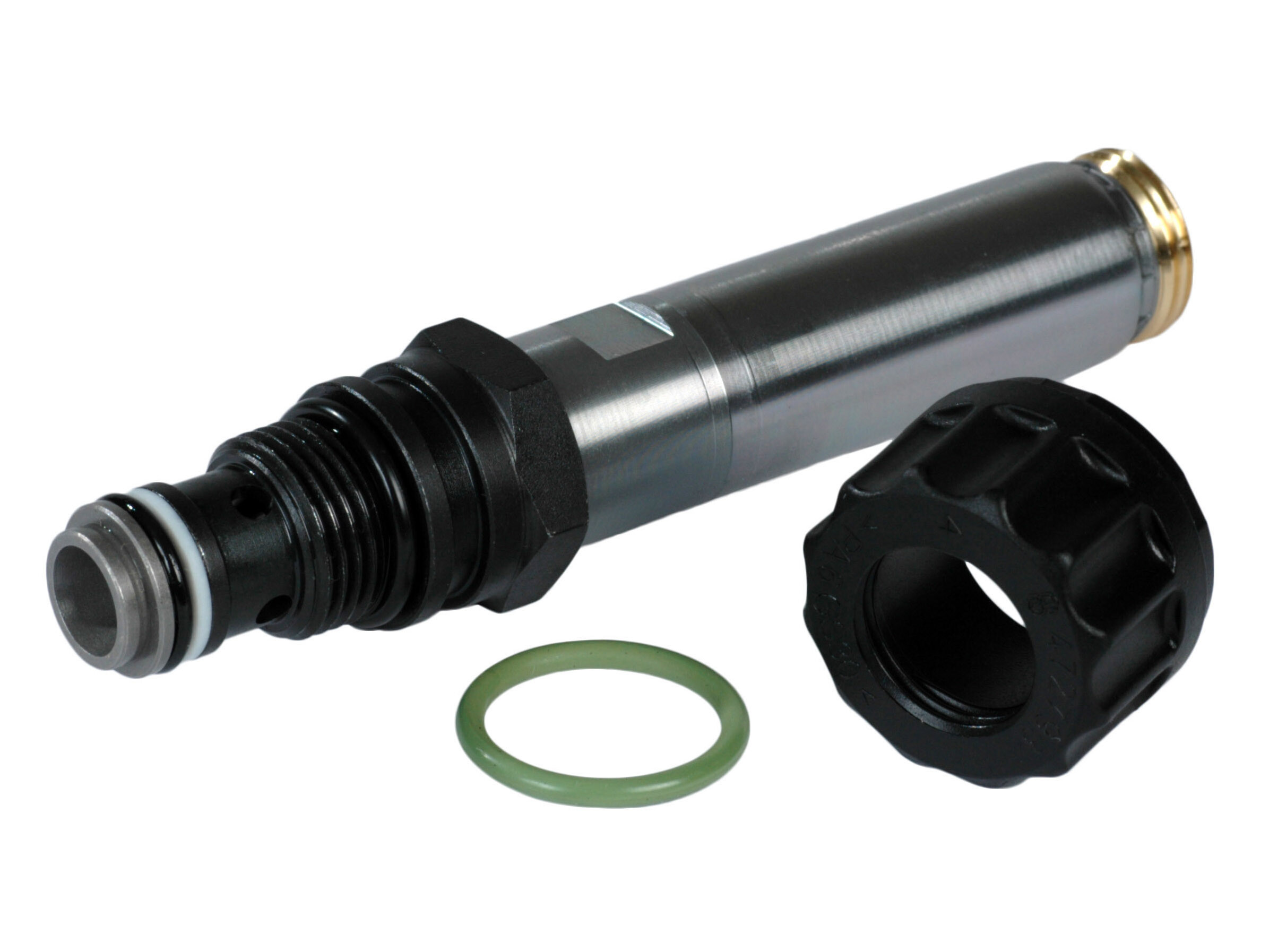

Proportional relief valve XMD 04-70-00-00-00-00
This is a direct acting, poppet type, normally open, proportional relief valve.
In the de-energized condition, the pressure setting will be at a minimum. As current is applied to the coil, the pressure setting of the valve will increase proportionally. This valve is ideal for use as a pilot valve to control larger logic elements.
Partnumber:
850128319
Package size:
0 pcs
Min. order quantity is:
1 pcs
Cavity
NCS04/2
Flow Nominel
4 lpm
Forureningsgrad maks.
18/17/13 - ISO 4406
Model kode
XMD04-70-00-00-00-00
Mærke navn
Danfoss
Nøglevidde
22 mm
Olieviskositet anbefalet
12 - 54 cSt
Pakningsmateriale
NBR
Tilspændingsmoment
44 - 50 Nm
Tryk maks.
250 bar
Trykindstilling maks.
70 bar
Trykindstilling min.
3 bar
Package size
0 pcs
Barcode
5704334371656
Gross weight
0,44 Kg
Net weight
0,44 Kg
Country of origin
Intrastat code
84812010
This is a direct acting, poppet type, normally open, proportional relief valve.
In the de-energized condition, the pressure setting will be at a minimum. As current is applied to the coil, the pressure setting of the valve will increase proportionally. This valve is ideal for use as a pilot valve to control larger logic elements.
