TRYCKB.V S-H 8-2 5-420 BAR

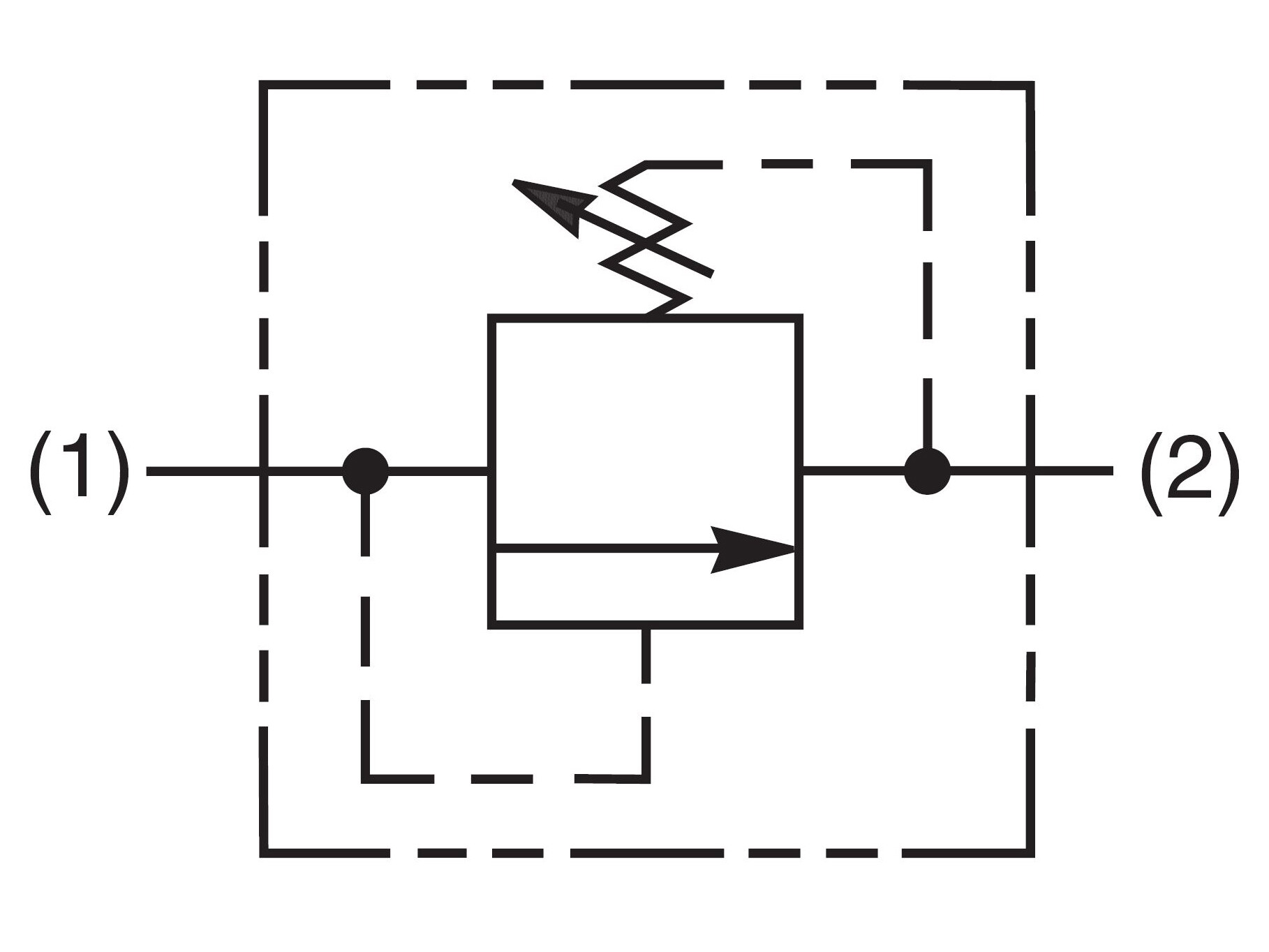

Direct Acting, Poppet-Type, Relief Valve.
Features
- Fast response
- Excellent stability throughout flow range
- Virtually leak free
- Hardened working parts for maximum durability
- All external parts zinc plated
Artikelnummer:
A02B2PZN
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Hydraspecma
Cavity
CAV02-2
Contamination level max.
18/16/13 - ISO 4406
Flowrate nominal LMin
30 lpm
Oil viscocity recommended
15 - 50 cSt
Pressure T max.
420 bar
Pressure max.
420 bar
Pressure setting max.
420 bar
Pressure setting min.
5 bar
Sealing material
NBR
Torque tightening
40 Nm
Förpackningsstorlek
0 pcs
Streckkod
5704295349480
Bruttovikt
0,20 Kg
Nettovikt
0,20 Kg
Ursprungsland
gbr
Intrastat artikelkod
84812010
Direct Acting, Poppet-Type, Relief Valve.
Features
- Fast response
- Excellent stability throughout flow range
- Virtually leak free
- Hardened working parts for maximum durability
- All external parts zinc plated
