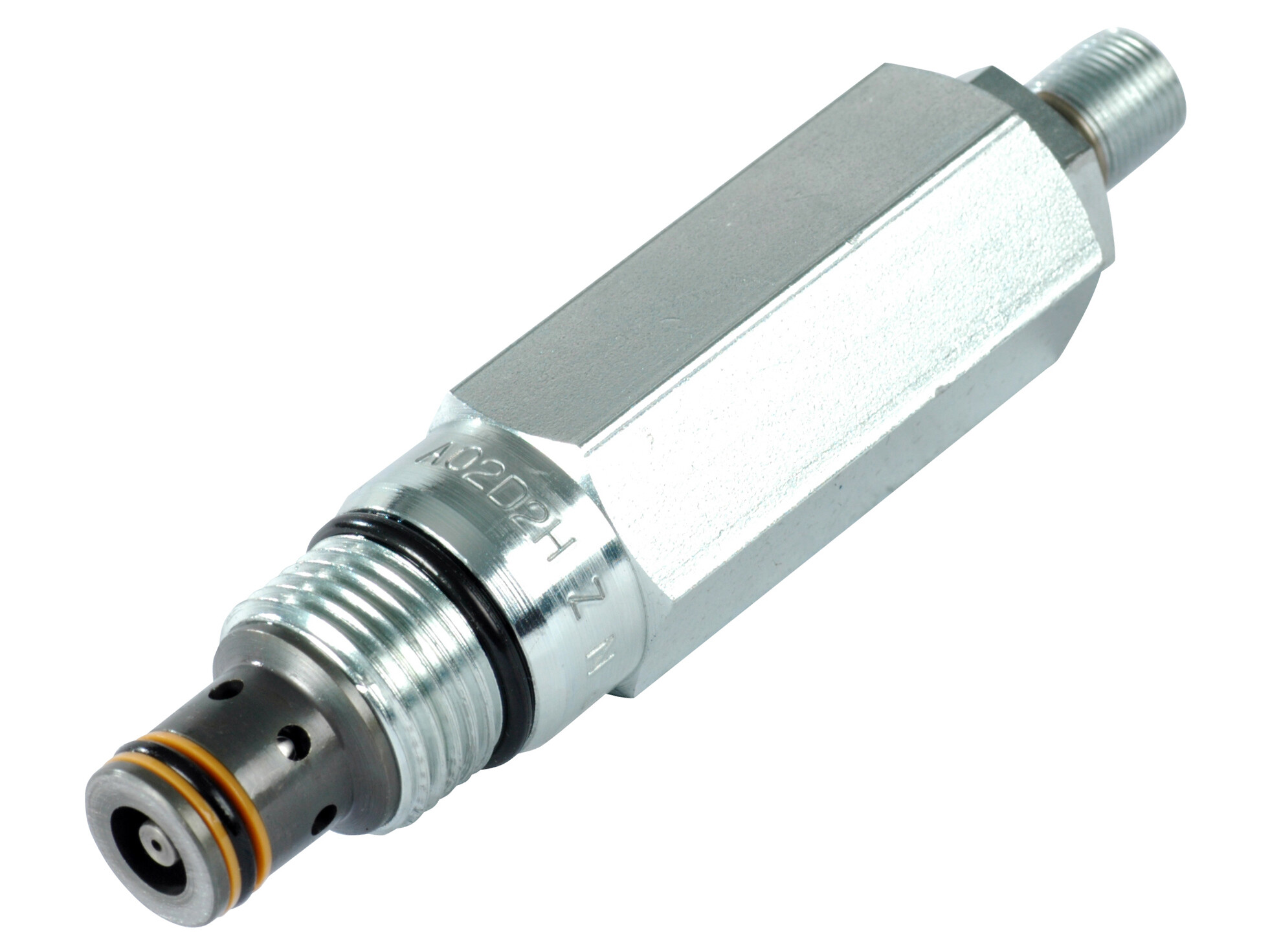

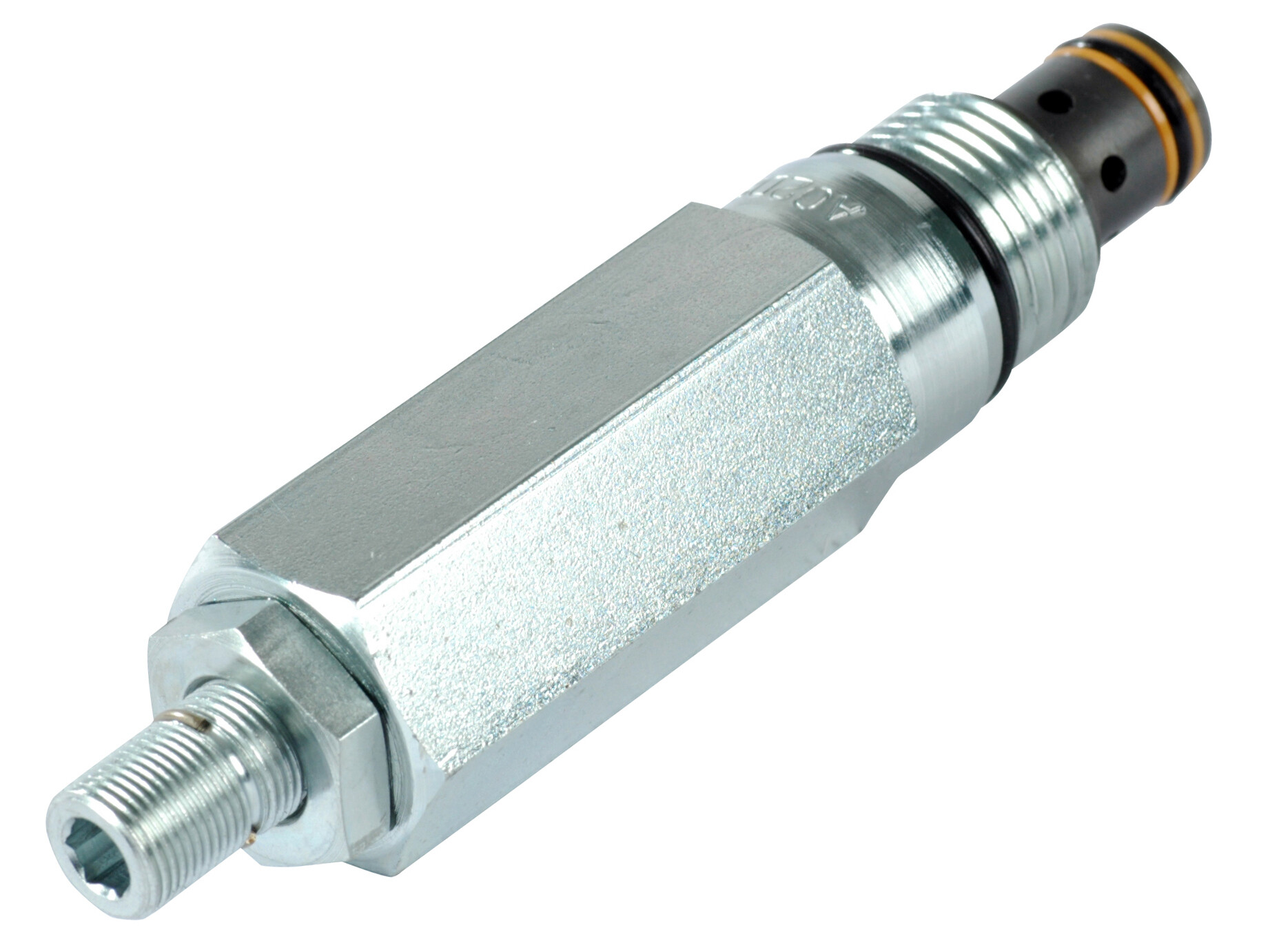

Pressure relief valve, Sterlin

Relief Valve, Direct Acting, Poppet Type, Side to Nose.

  • Fast response with good stability
  • Virtually leak-free.
  • High flow capacity
  • Minimal pressure variation with flow change.
  • Hardened working parts for maximum durability

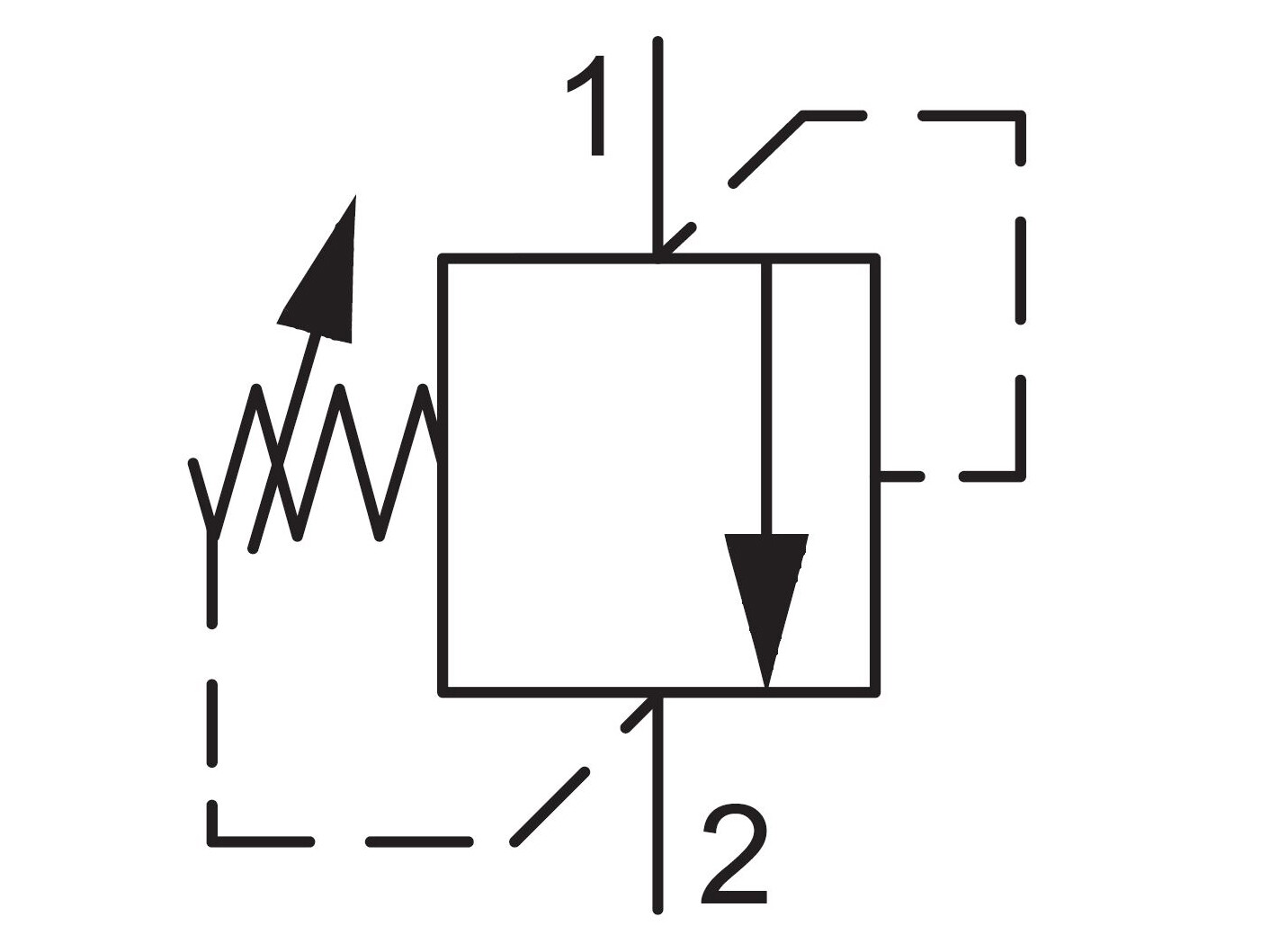

Operation

The adjustable spring-loaded poppet is shifted at valve setting by pressure on port [1] allowing relief flow to port [2].

Reverse flow, port [2] to [1], is blocked. Back pressure on port [2] adds to the valve setting.

Artikelnummer:
A02D2HZN

Förpackningsstorlek:
0 pcs

Minsta beställningskvantitet:
1 pcs
Brand Name
Hydraspecma

Cavity
CAV02-2

Contamination level max.
18/16/13 - ISO 4406

Flow rate nominal LMin
60 lpm

Oil viscocity recommended
15 - 50 cSt

Pressure T max.
420 bar

Pressure max.
420 bar

Pressure setting max.
210 bar

Pressure setting min.
5 bar

Sealing material
NBR

Torque tightening
40 Nm
Pakke str.
0 pcs

Stregkode
5704295709611

Brutto vægt
0,20 Kg

Netto vægt
0,20 Kg

Oprindelsesland

Intrastat varekode
84812010

Relief Valve, Direct Acting, Poppet Type, Side to Nose.

  • Fast response with good stability
  • Virtually leak-free.
  • High flow capacity
  • Minimal pressure variation with flow change.
  • Hardened working parts for maximum durability



Operation

The adjustable spring-loaded poppet is shifted at valve setting by pressure on port [1] allowing relief flow to port [2].

Reverse flow, port [2] to [1], is blocked. Back pressure on port [2] adds to the valve setting.
