    RELIEF VALVE CP200-1-B-0-E-C-260

    CP200-1, Relief Valve, Differential Area, Poppet Type

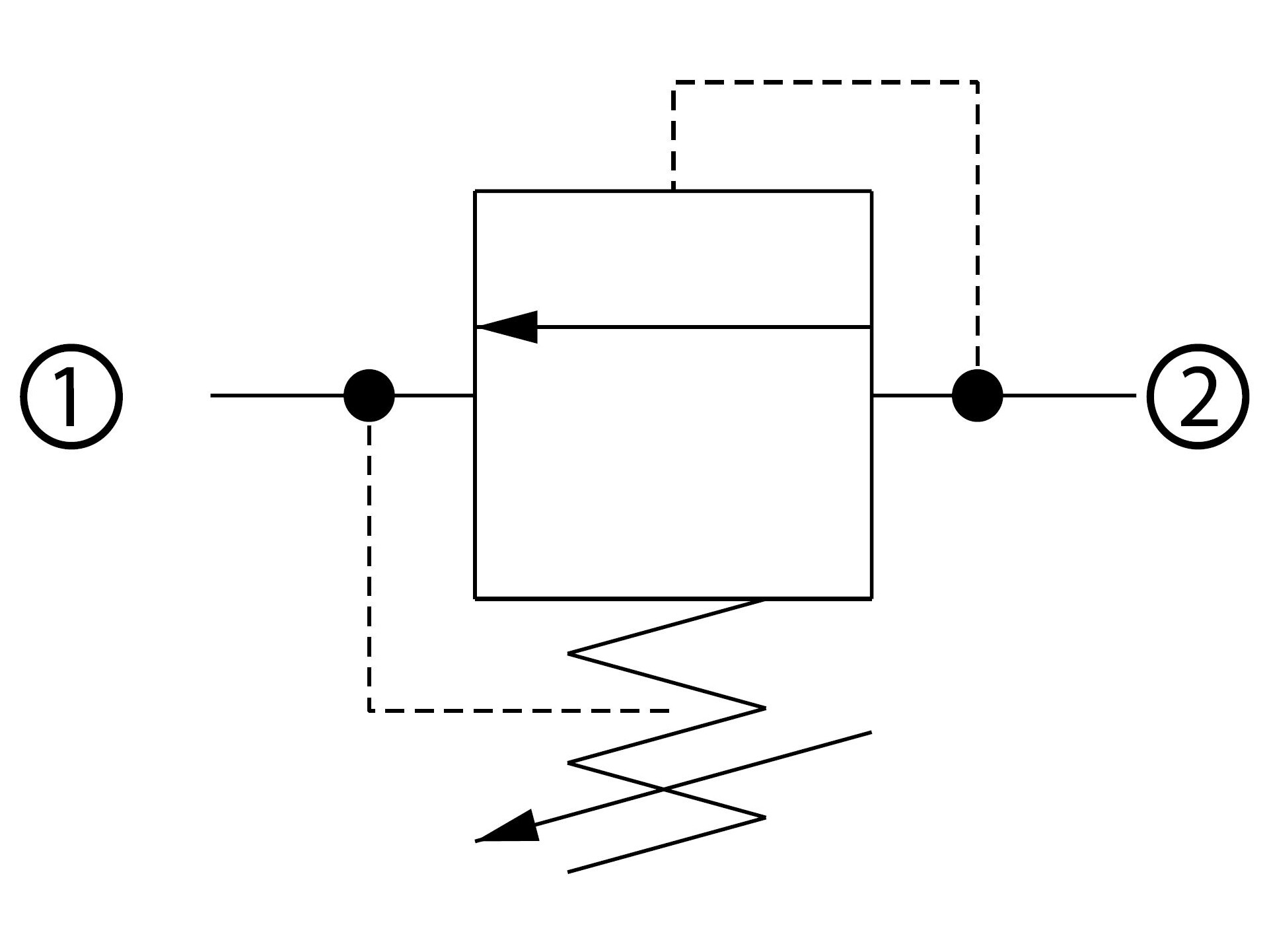

    This is a fast acting, differential area, poppet type relief valve that relieves from port 2 to port 1. It can be used to protect an actuator from over-pressurization or to remove pressure spikes.

    Artikelnummer:
    130307260
    Förpackningsstorlek:
    0 pcs
    Minsta beställningskvantitet:
    1 pcs
    Mix-N-Match Dual Cross Body 1/2"DCP10-2-4B
    Varenummer: 11135684
    Mix-N-Match Dual Parallel Body 1/2"DPL10-2-4B
    Varenummer: 11137221
    Housing SDC10-2-S3B steel 3/8
    Varenummer: 11143048
    Housing SDC10-2-S4B steel 1/2 port
    Varenummer: 11143049
    Housing SDC10-2--LG14B (1/2)
    Varenummer: 922514110
    Housing SDC10-2--LG24B (1/2)
    Varenummer: 922514210
    HOUSING, SDC10-2-DG3B (3/8) SDC10-2-DG3B (3/8)
    Varenummer: 922516910
    HOUSING, SDC10-2-DG4B (1/2) SDC10-2-DG4B (1/2)
    Varenummer: 922517010
    KIT SEAL - BUNA-N #
    Varenummer: 120015
    Brand Name
    Danfoss
    Cavity
    SDC10-2
    Contamination level max.
    20/18/14 - ISO 4406
    Flow rate nominal LMin
    76 lpm
    Key size
    25.4 mm
    Model code
    CP200-1-B-0-E-C-260
    Oil viscocity recommended
    12 - 54 cSt
    Pressure max.
    250 bar
    Pressure setting max.
    250 bar
    Pressure setting min.
    41 bar
    Sealing material
    NBR
    Torque tightening
    41 - 47 Nm
    Pakke str.
    0 pcs
    Stregkode
    5704334371748
    Brutto vægt
    0,21 Kg
    Netto vægt
    0,21 Kg
    Oprindelsesland
    Intrastat varekode
    84812010

    CP200-1, Relief Valve, Differential Area, Poppet Type

    This is a fast acting, differential area, poppet type relief valve that relieves from port 2 to port 1. It can be used to protect an actuator from over-pressurization or to remove pressure spikes.
