Sun Shuttle valve T-11A 10LPM 350bar

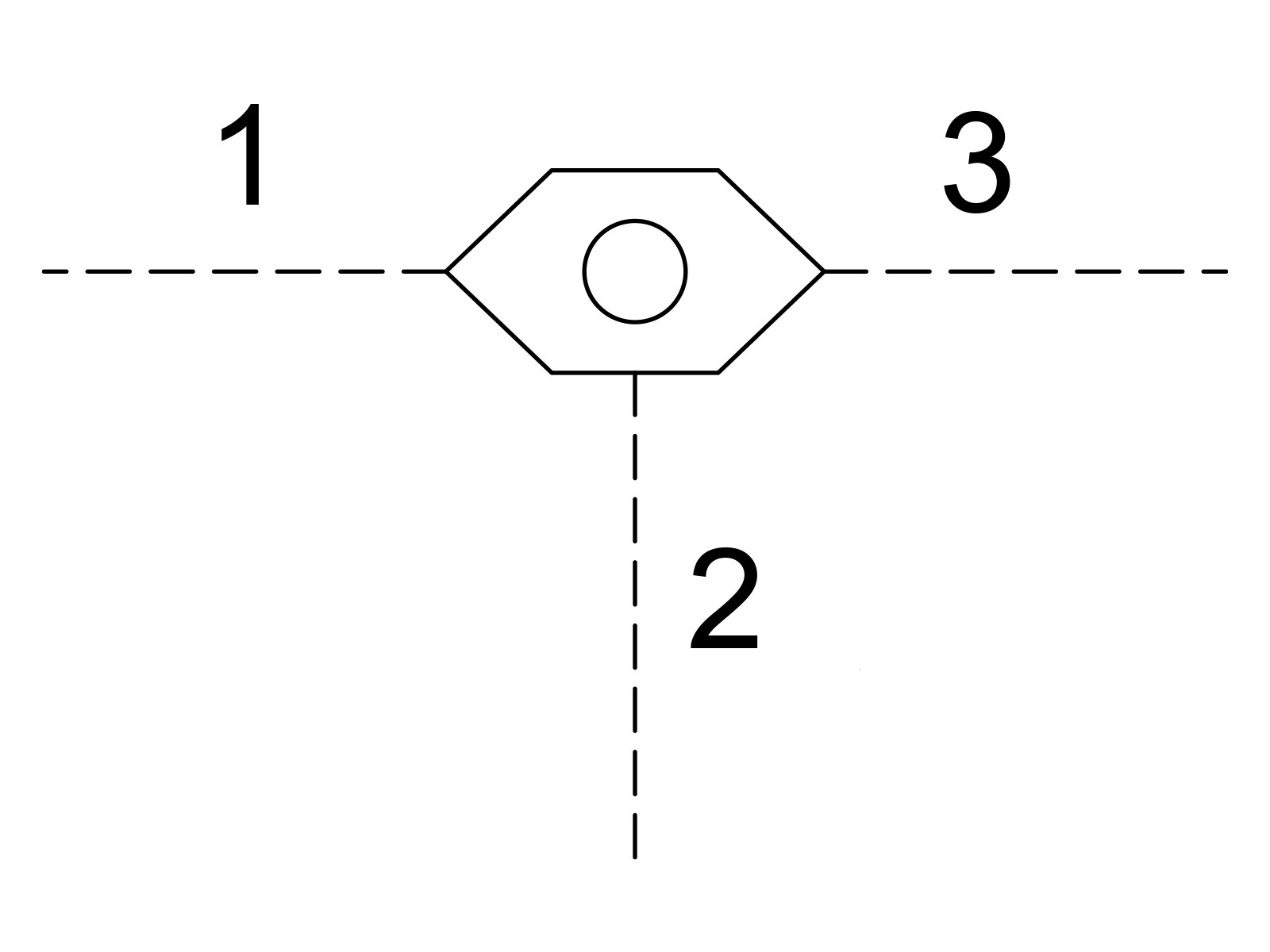

Single ball, shuttle valve with signal at port 2
The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 2.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
Varenummer:
CSAD-XXN
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Flödeshastighet nominell LMin
10 lpm
Föroreningsgrad max.
19/17/14 - ISO 4406
Kavitet
T-11A
Modell kod
CSADXXN
Märke namn
Sun Hydraulics
Oljeviskositet rekommanderad
2,8 - 380 cSt
Packningsmaterial
NBR
Temperatur max.
+110 °C
Temperatur min.
-30 °C
Tillverkningsmaterial
Steel
Tryck max.
350 bar
Åtdragning moment
41 - 47 Nm
Förpackningsstorlek
0 pcs
Streckkod
5704334648963
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
Intrastat artikelkod
84812010
Single ball, shuttle valve with signal at port 2
The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 2.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
