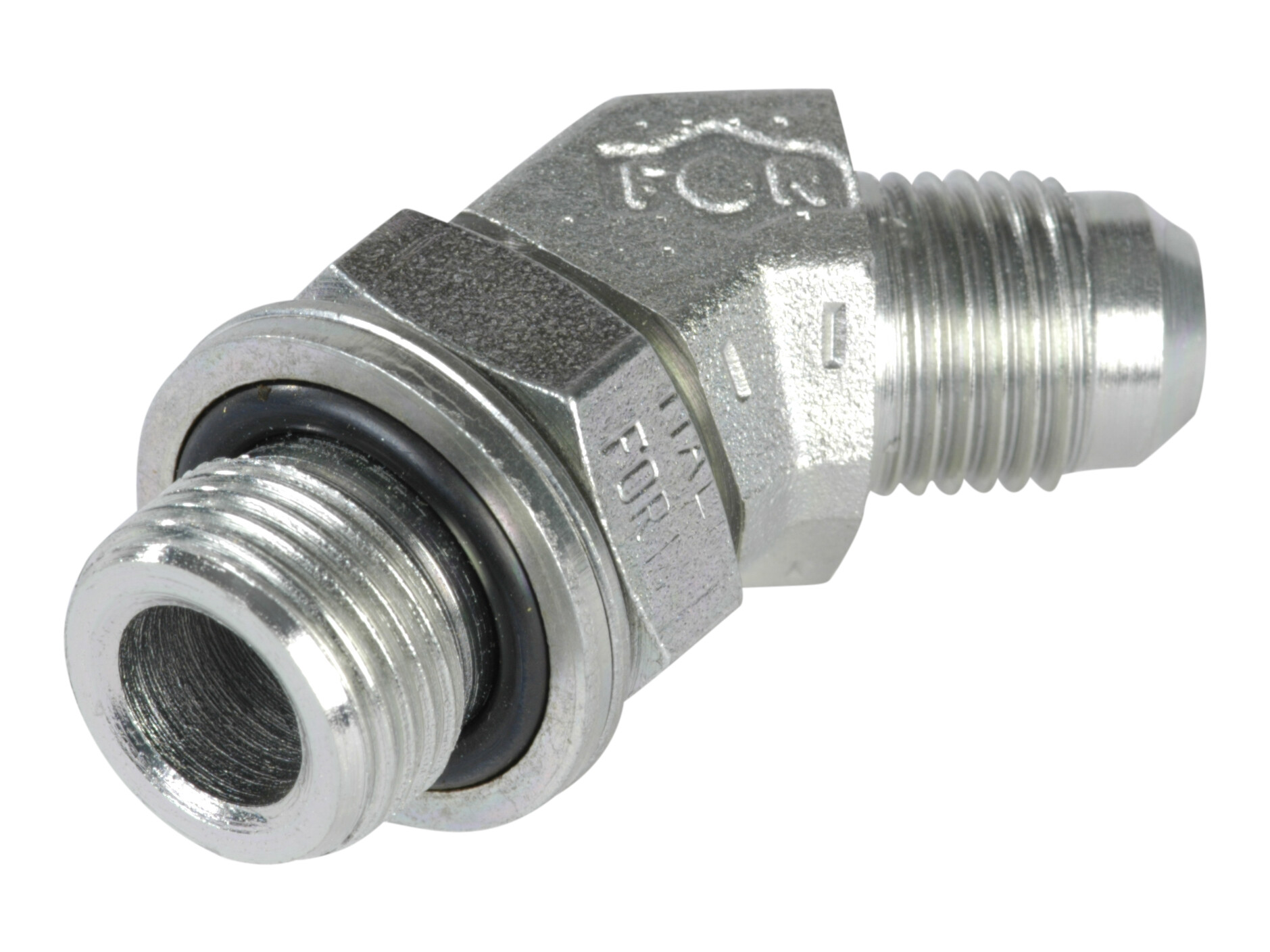

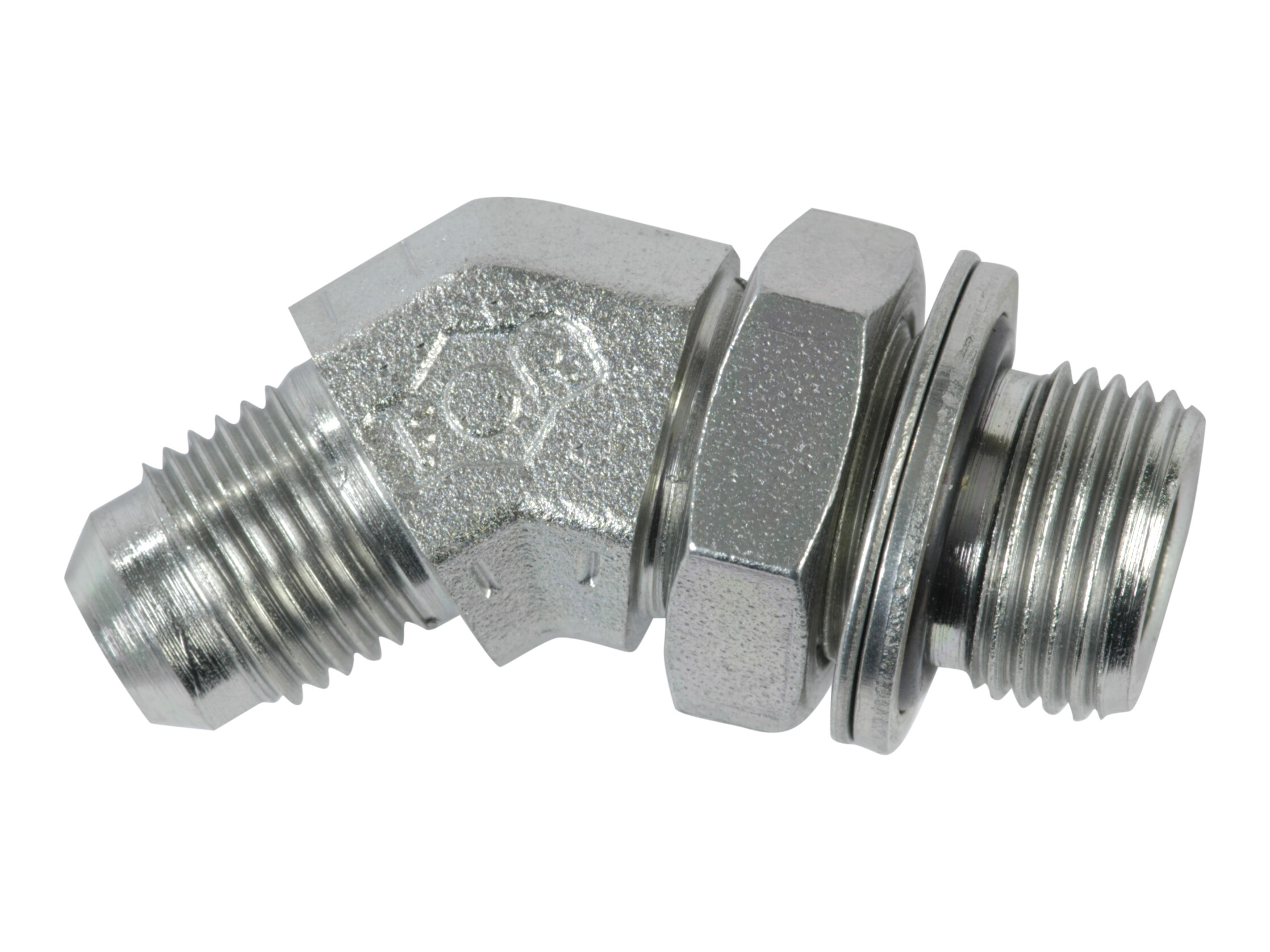

Elbow, 45 gr. BSP

Varenummer:

VO-10-3/8

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (1)

Bushing Ø10

Partnumber: B-10

Specifications
Dimensions and shipping

Angle

45 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

10 mm

Dimension B

22 mm

Dimension C

33 mm

Dimension CH

22 mm

Dimension F

G 3/8 BSP

Dimension J

9/16-18 JIC

Dimension T

10 mm

Material

Steel

Pressure max.

350 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

9/16-18 JIC

Thread outer

G 3/8 BSP

Package size

0 pcs

Barcode

5704295980850

Gross weight

0,08 Kg

Net weight

0,08 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Elbow, 45 gr. BSP

Note: Opening 3D files requires a program that supports the file format
