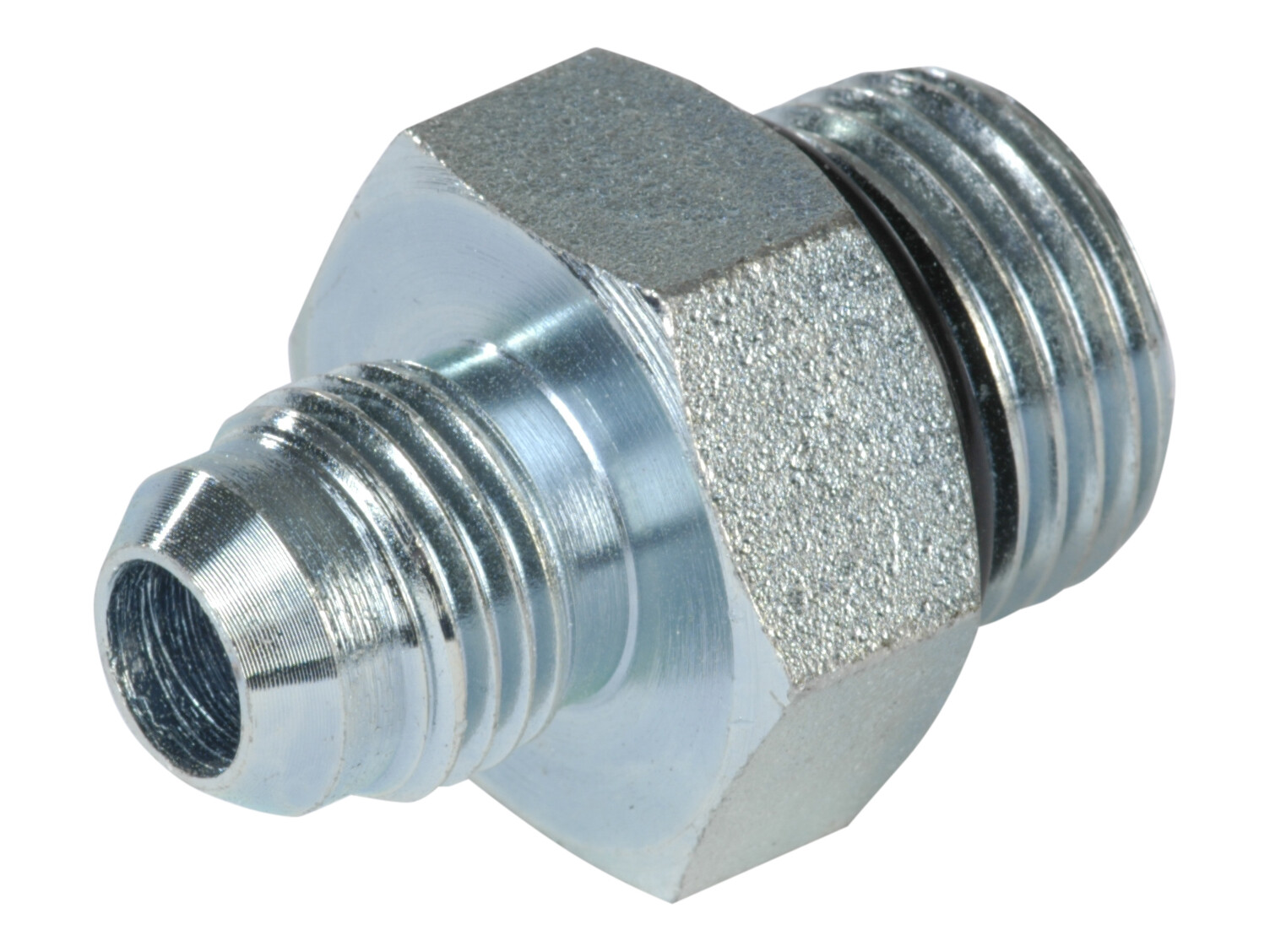

S220-10-19U adaptor UNF NW22
S220-10-19U adaptor UNF NW22
Partnumber:
M-10-3/4
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
10 mm
Dimension A
35 mm
Dimension B
14 mm
Dimension CH
22 mm
Dimension D
11 mm
Dimension F
3/4-16 UNF
Dimension J
9/16-18 JIC
Dimension T
10 mm
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
9/16-18 JIC
Thread outer
3/4-16 UNF
Package size
0 pcs
Barcode
5704334335269
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
ITA
Intrastat code
73071110
S220-10-19U adaptor UNF NW22
