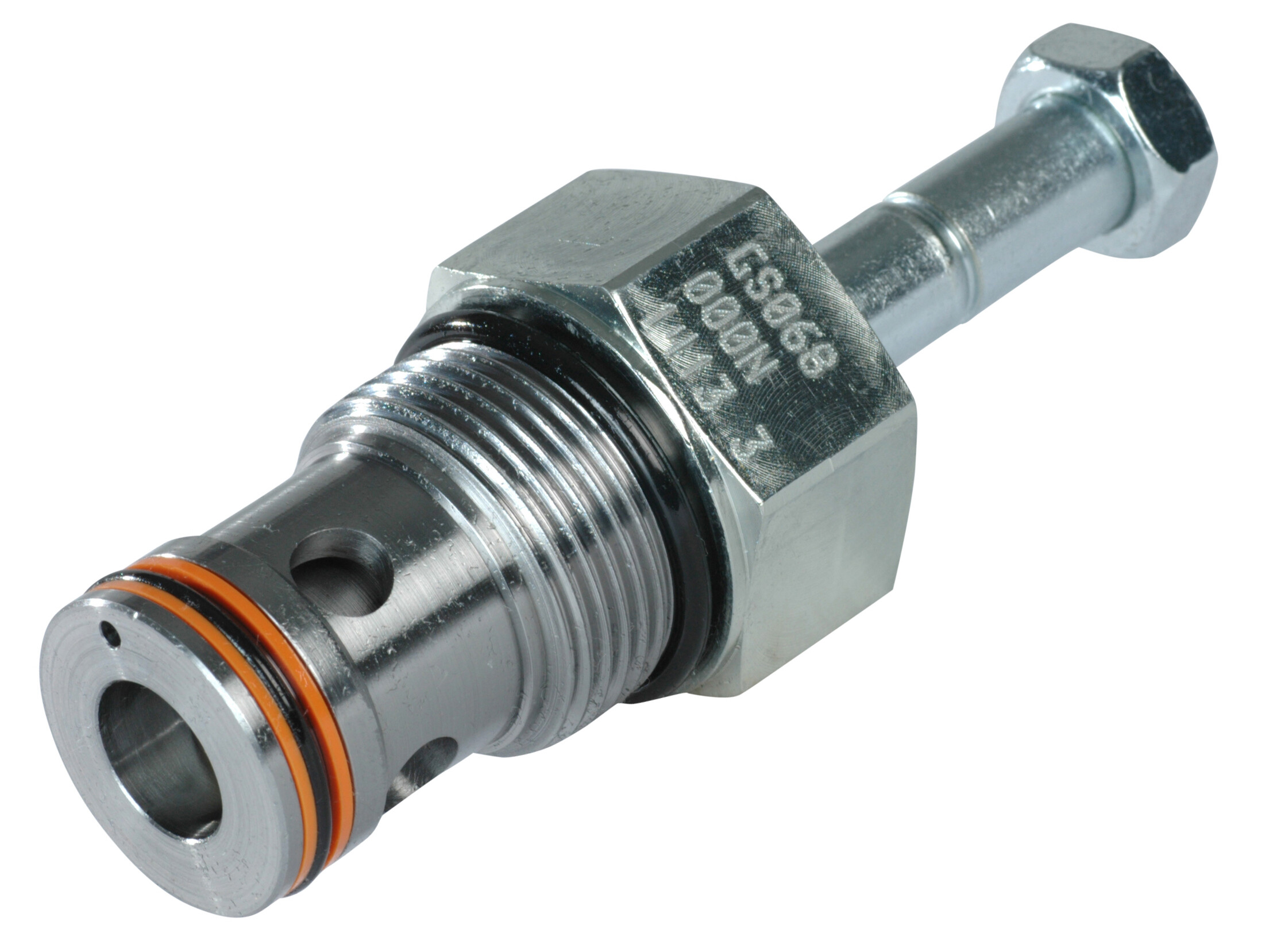

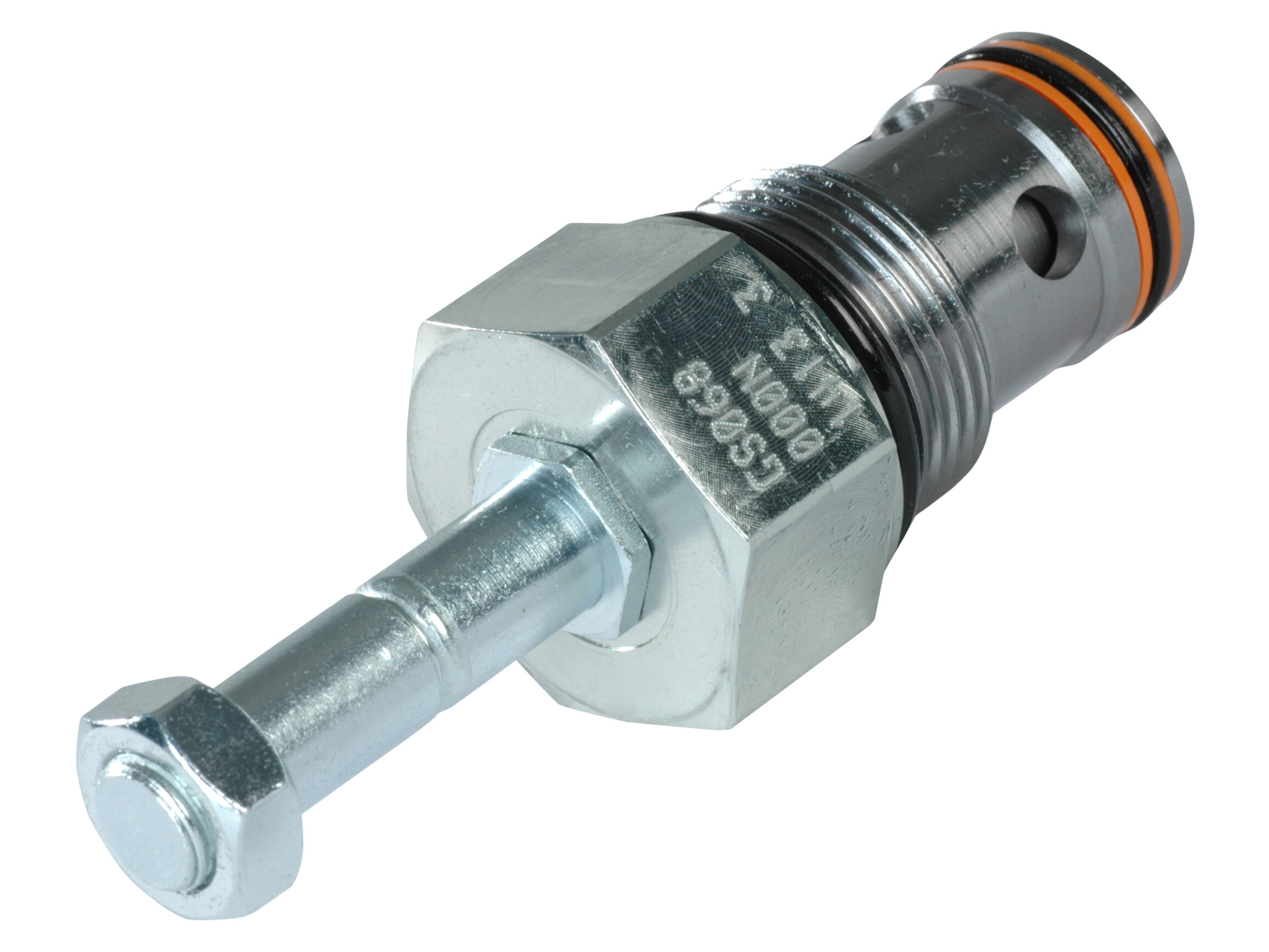

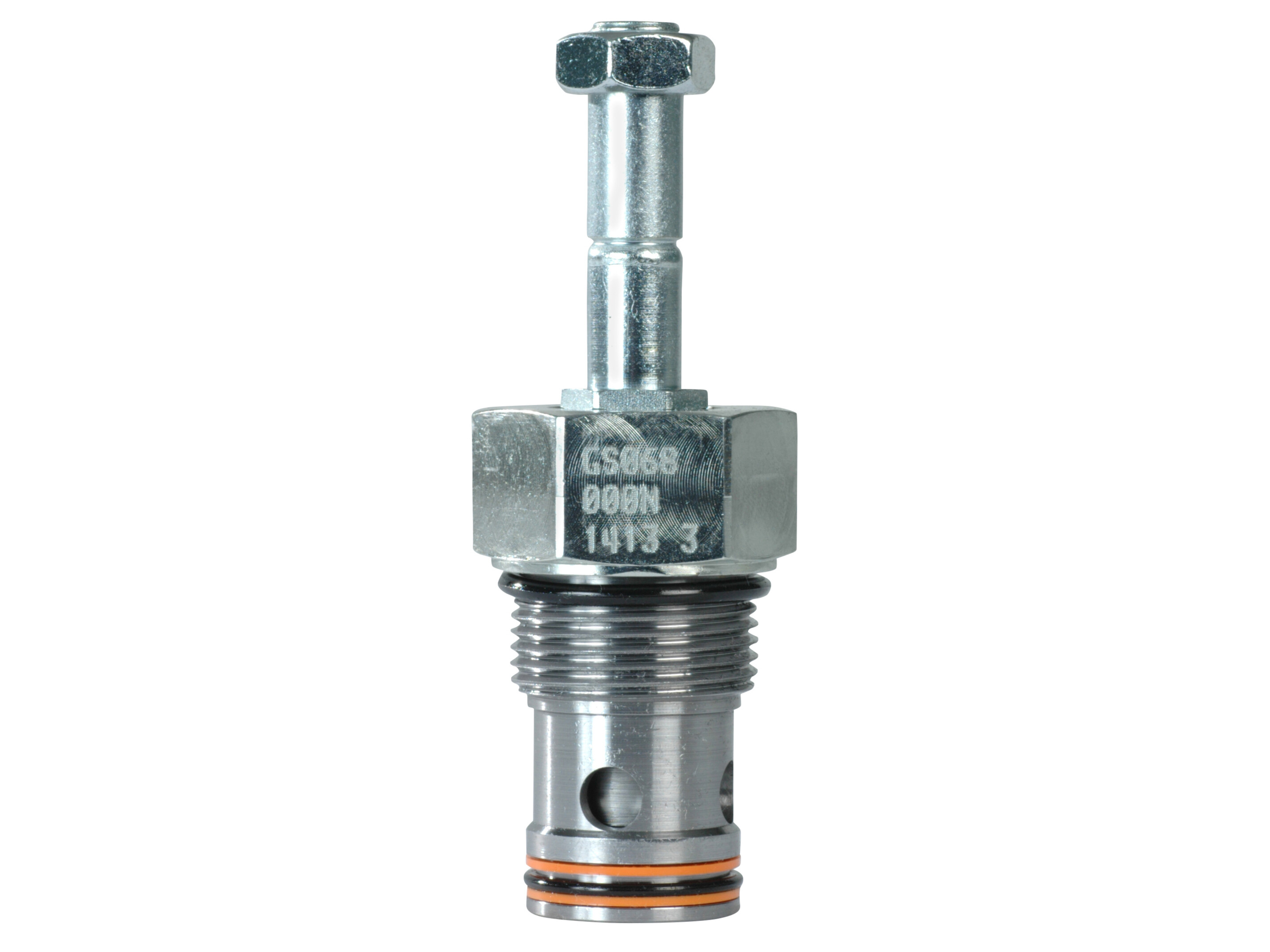

Solenoid cartridge valve NC.19
2-Way, 2 Position, Normally Closed, Bi-Directional Poppet Valve.
Features
- Built-in thermal relief set at 36 Bar (500 PSI) above rated pressure
- One piece cartridge housing ensures internal concentricity
- Coil: Waterproof, hermetically sealed, requires no O’Rings;
- Coil is interchangeable with 02 and 04 series poppet valves;
Symmetrical coil can be reversed without affecting performance
Varenummer:
GS06-80-00N
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Activation
Solenoid
Brand Name
Hydraspecma
Cavity
CAV06-2
Contamination level max.
18/16/13 - ISO 4406
Filter built-in
No
Flow rate nominal LMin
190 lpm
Manual operated
No
Number of ways/positions
2/2
Oil viscocity recommended
6 - 420 cSt
Pressure max.
210 bar
Sealing material
NBR
Solenoidtype
CCS
Temperature max.
+121 °C
Temperature min.
-34 °C
Torque tightening
108 Nm
Valve type
NC - Normally closed
Förpackningsstorlek
0 pcs
Streckkod
5704295231167
Bruttovikt
0,43 Kg
Nettovikt
0,43 Kg
Ursprungsland
USA
Intrastat artikelkod
84812010
2-Way, 2 Position, Normally Closed, Bi-Directional Poppet Valve.
Features
- Built-in thermal relief set at 36 Bar (500 PSI) above rated pressure
- One piece cartridge housing ensures internal concentricity
- Coil: Waterproof, hermetically sealed, requires no O’Rings;
- Coil is interchangeable with 02 and 04 series poppet valves;
Symmetrical coil can be reversed without affecting performance
