FLOW CONTROL CP300-2-B-0-K-6.0

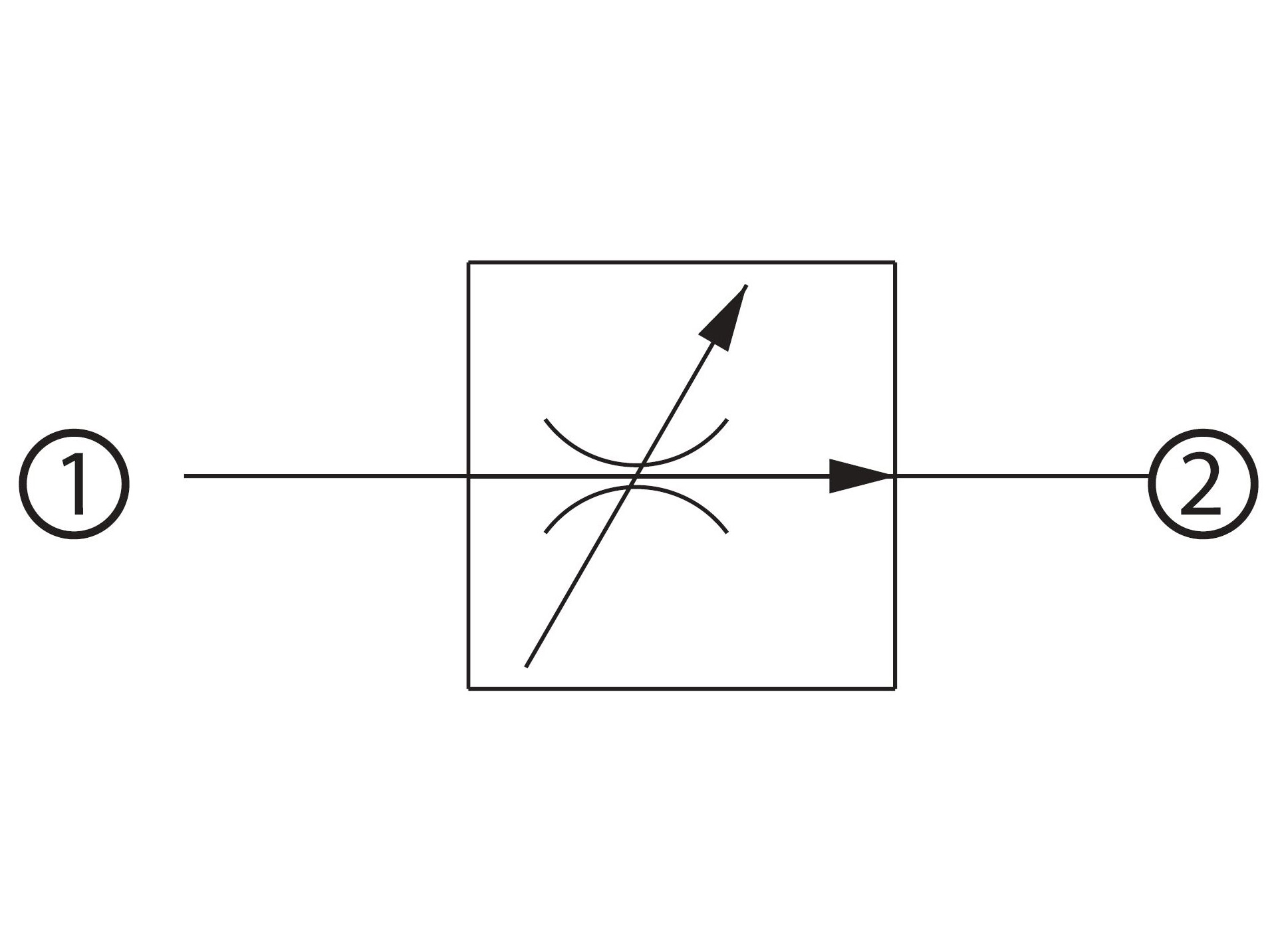

This valve is a limited adjustment pressure compensated fl­ow control valve. To increase the ­flow, turn the adjustment screw clockwise. To decrease the ­flow, turn the adjustment screw counter-clockwise

Partnumber:
132063

Package size:
0 pcs

Min. order quantity is:
1 pcs
Mix-N-Match Dual Cross Body 1/2"DCP10-2-4B
Partnumber: 11135684
Dubbelt parallellt ventilhus 1/2" DPL10-2-4B
Partnumber: 11137221
Ventilhus Comatrol SDC10-2-S3B steel 3/8
Partnumber: 11143048
Ventilhus Comatrol SDC10-2-S4B steel 1/2 port
Partnumber: 11143049
Housing SDC10-2--LG14B (1/2)
Partnumber: 922514110
Housing SDC10-2--LG24B (1/2)
Partnumber: 922514210
HOUSING, SDC10-2-DG3B (3/8) SDC10-2-DG3B (3/8)
Partnumber: 922516910
HOUSING, SDC10-2-DG4B (1/2) SDC10-2-DG4B (1/2)
Partnumber: 922517010
KIT SEAL - BUNA-N #
Partnumber: 120015
Brand Name
Danfoss

Cavity
SDC10-2

Contamination level max.
20/18/14 - ISO 4406

Flow max. regulated
22.7 lpm

Flow min. regulated
22.7 lpm

Flow rate nominal LMin
23 lpm

Model code
CP300-2-B-00-K-6.0

Oil viscocity recommended
12 - 54 cSt

Pressure compensated
Yes

Pressure max.
210 bar

Temperature max.
+100 °C

Temperature min.
-40 °C

Torque tightening
41 - 47 Nm
Package size
0 pcs

Barcode
5704334370529

Gross weight
0,24 Kg

Net weight
0,24 Kg

Country of origin

Intrastat code
84812010

This valve is a limited adjustment pressure compensated fl­ow control valve. To increase the ­flow, turn the adjustment screw clockwise. To decrease the ­flow, turn the adjustment screw counter-clockwise
