1/4 flow control valve, tog

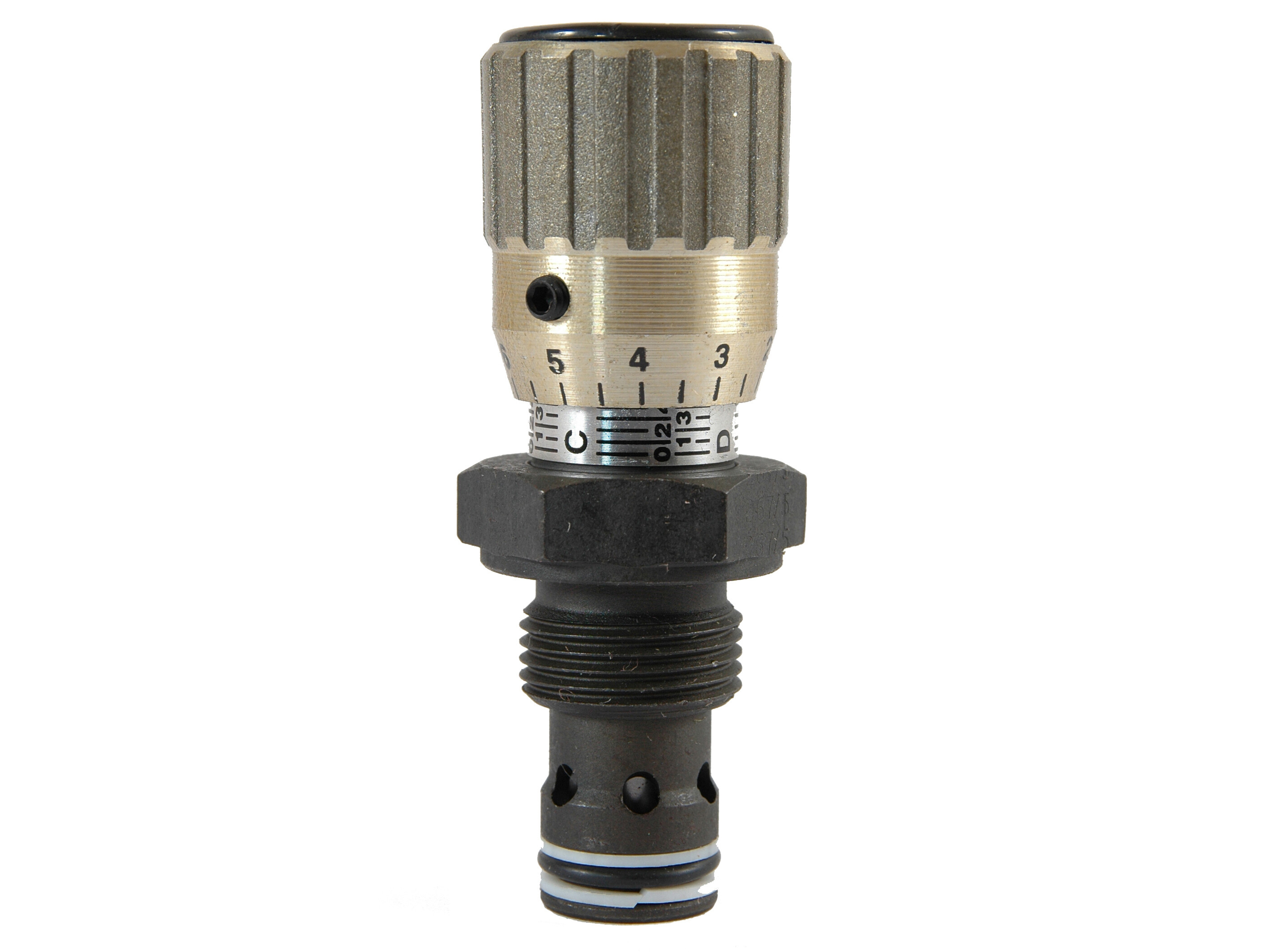

FT267/5 is a single-acting flow control valve that control and, in case, shut-off the flow in one direction and allow the full free flow in the opposite direction.

Partnumber:
FT267/5-14

Package size:
0 pcs

Min. order quantity is:
1 pcs
Brand Name
Tognella

Dimension A metric
M20x1,5

Dimension B
16 mm

Dimension C
11.5 mm

Dimension CH
27 mm

Dimension D
19 mm

Dimension E
30.5 mm

Dimension F
27 mm

Dimension G
43 mm

Dimension H
73.5 mm

Dimension L
4 mm

Flow rate nominal LMin
15 lpm

Material
Steel

Pressure compensated
No

Pressure max.
320 bar

Sealing material
NBR

Temperature max.
+100 °C

Temperature min.
-20 °C

Valve type
Throttle/checkvalve
Package size
0 pcs

Barcode
5704295026688

Gross weight
0,13 Kg

Net weight
0,13 Kg

Country of origin
ITA

Intrastat code
84812010

FT267/5 is a single-acting flow control valve that control and, in case, shut-off the flow in one direction and allow the full free flow in the opposite direction.
