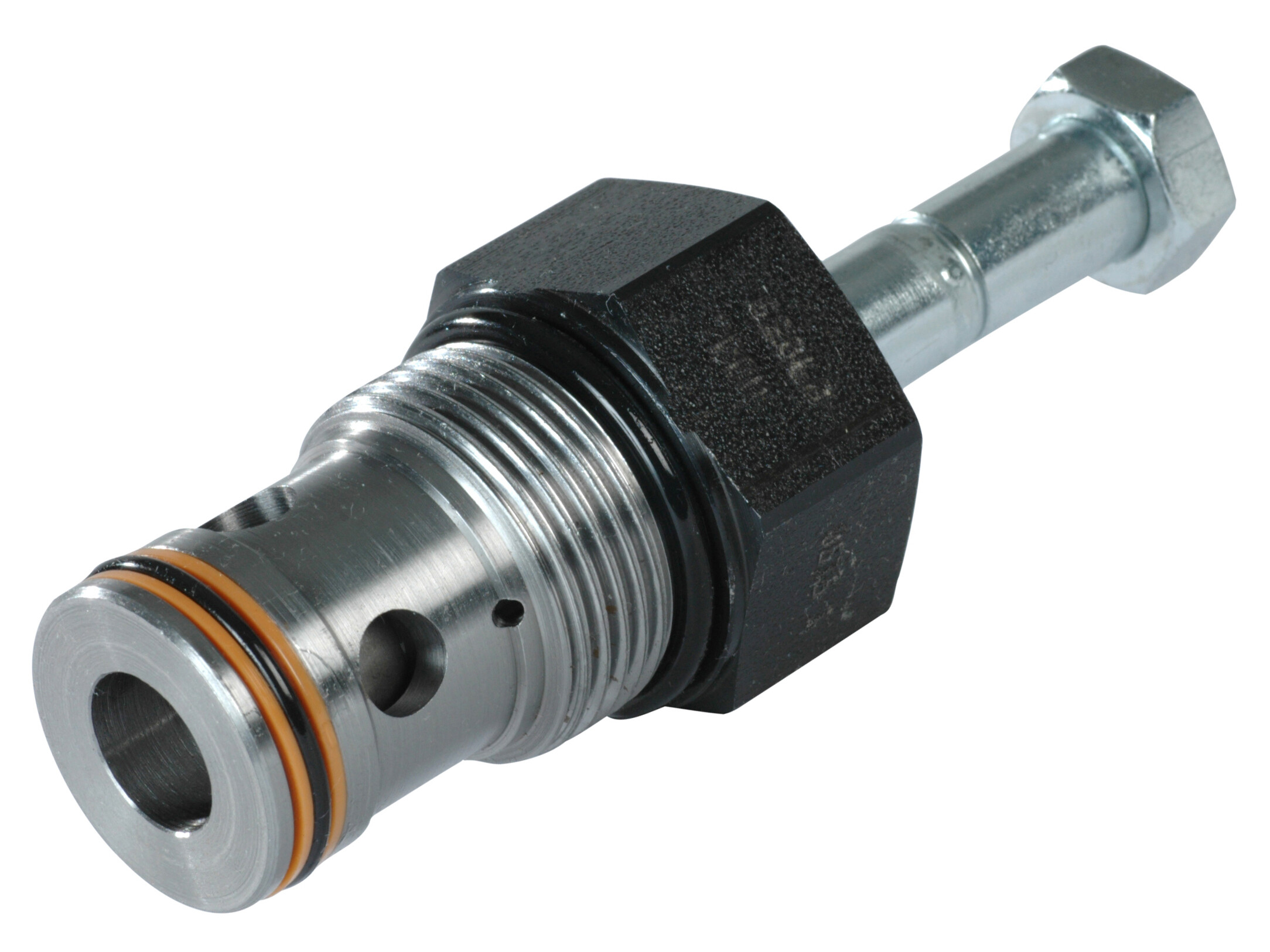

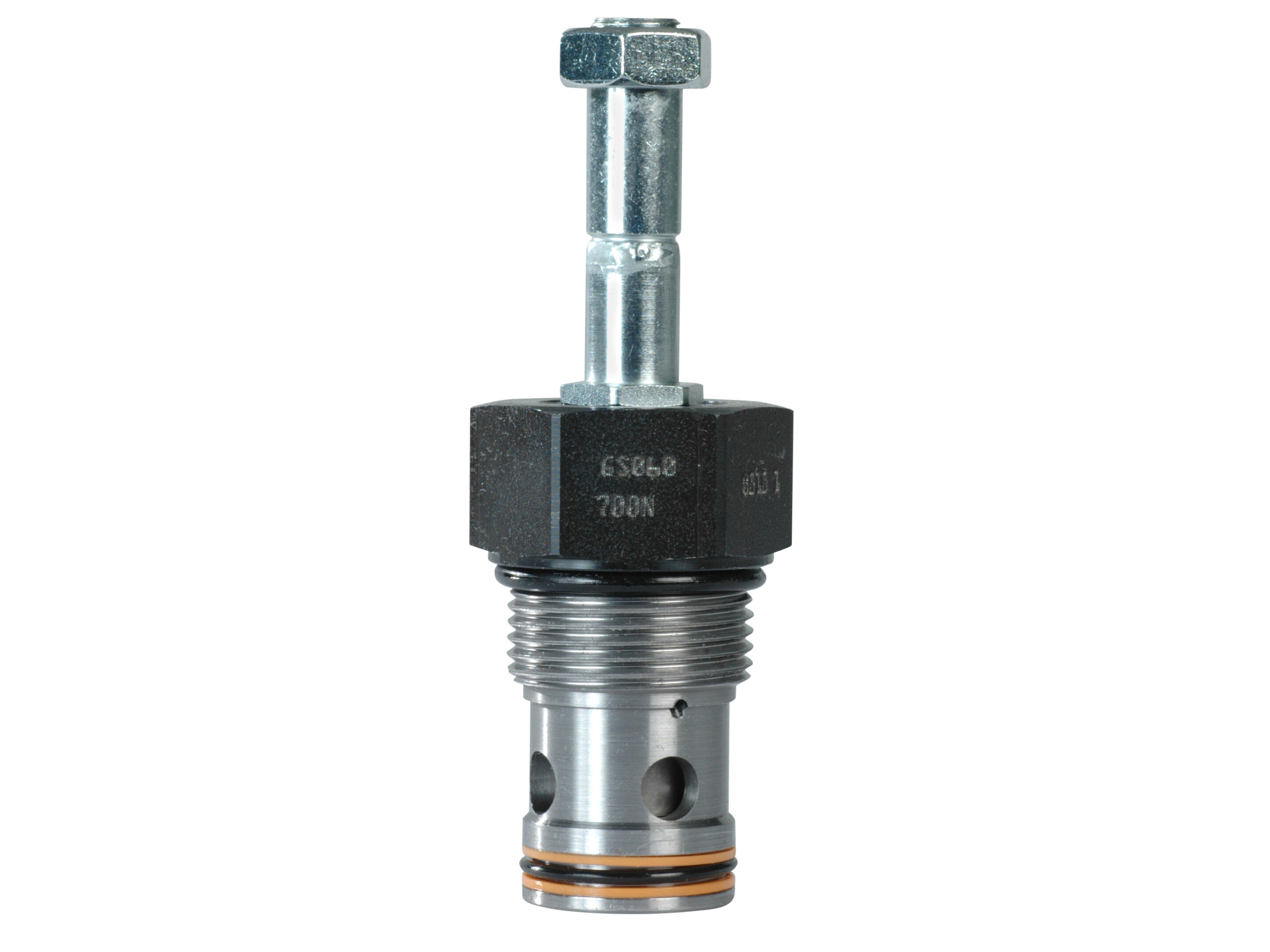

Solenoid cartridge valve NC.19 (P-port in bottom)
Solenoid cartridge valve NC.19 (P-port in bottom)
Partnumber:
GS06-07-00N
Package size:
0 pcs
Min. order quantity is:
1 pcs
Activation
Solenoid
Brand Name
Hydraspecma
Cavity
CAV06-2
Contamination level max.
18/16/13 - ISO 4406
Filter built-in
No
Flow rate nominal LMin
190 lpm
Manual operated
No

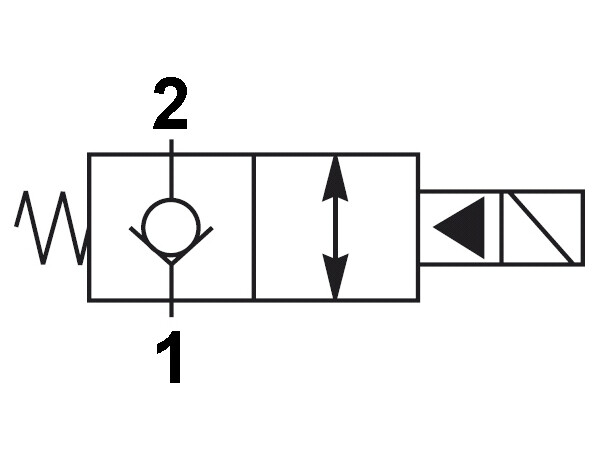

Number of ways/positions
2/2
Oil viscocity recommended
15 - 50 cSt
Pressure max.
350 bar
Sealing material
NBR
Solenoidtype
CCP
Temperature max.
+121 °C
Temperature min.
-34 °C
Torque tightening
108 Nm
Valve type
NC - Normally closed
Package size
0 pcs
Barcode
5704295456003
Gross weight
0,43 Kg
Net weight
0,43 Kg
Country of origin
Intrastat code
84812010
Solenoid cartridge valve NC.19 (P-port in bottom)
